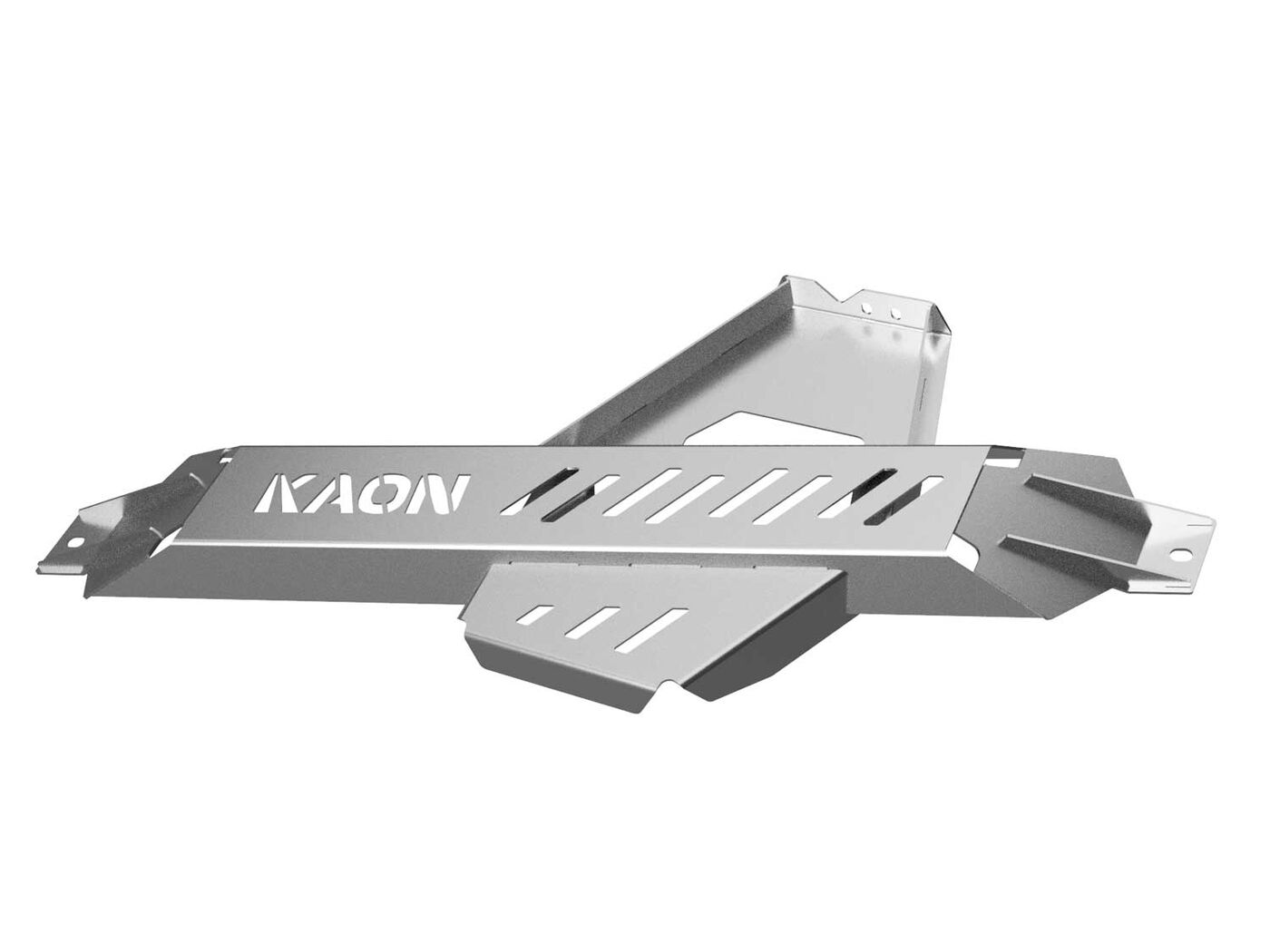

Transfer Case & Actuator Guard to suit Toyota Prado 120 & 150 – Bash Plates

Most guards, including the flimsy factory transfer guards, are mounted directly to the transfer case. This does not protect the fragile actuator mechanism and can transfer loads directly to the transfer case, cracking the casing. Replacing an actuator or transfer case can cost several thousand dollars and may even leave you stranded out on the tracks.

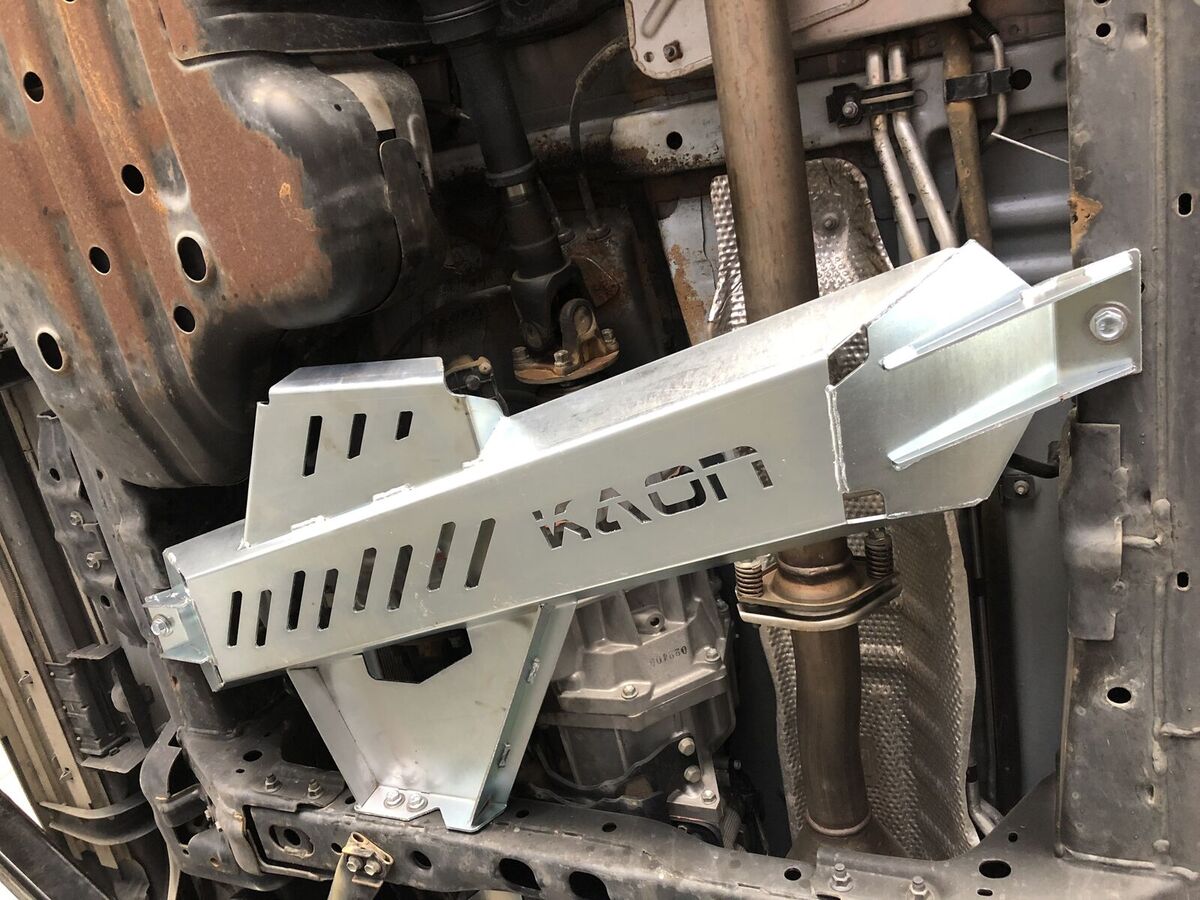

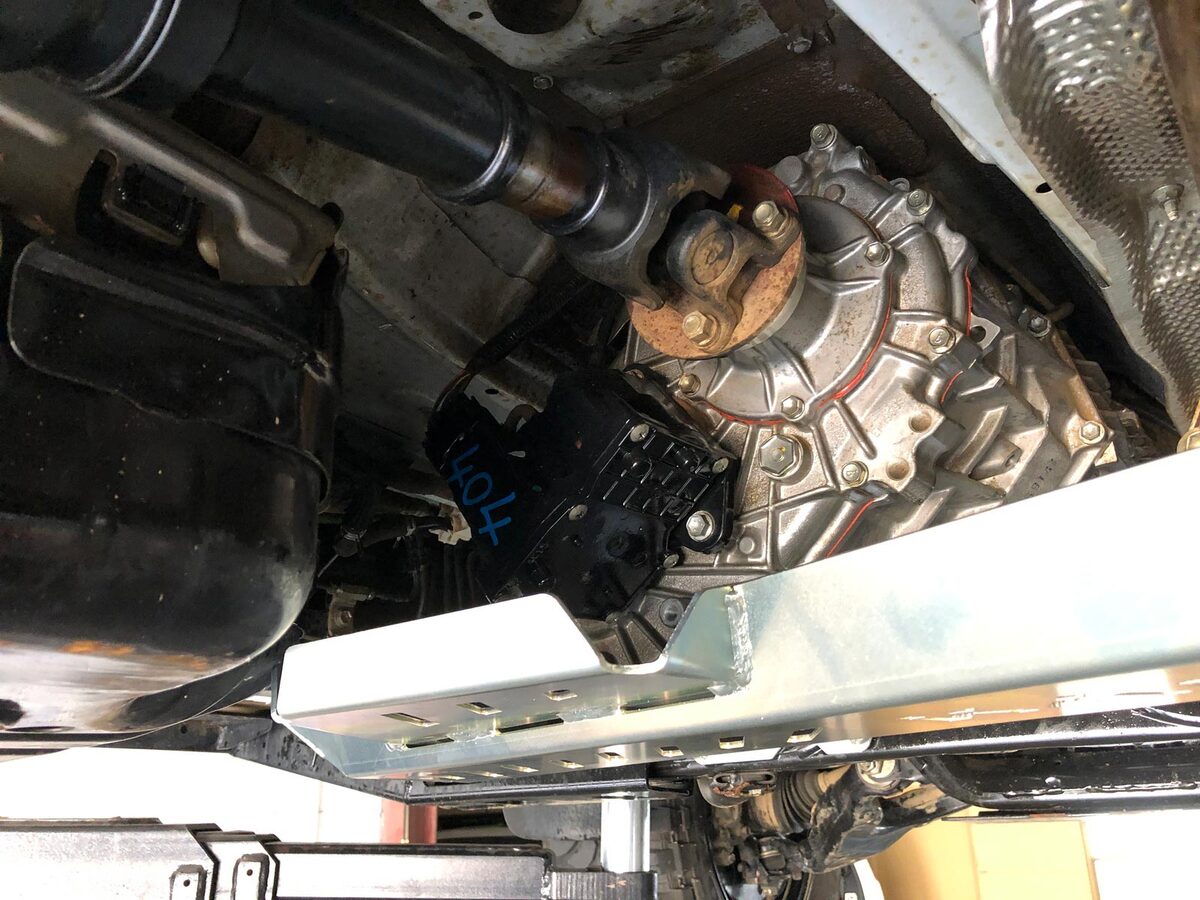

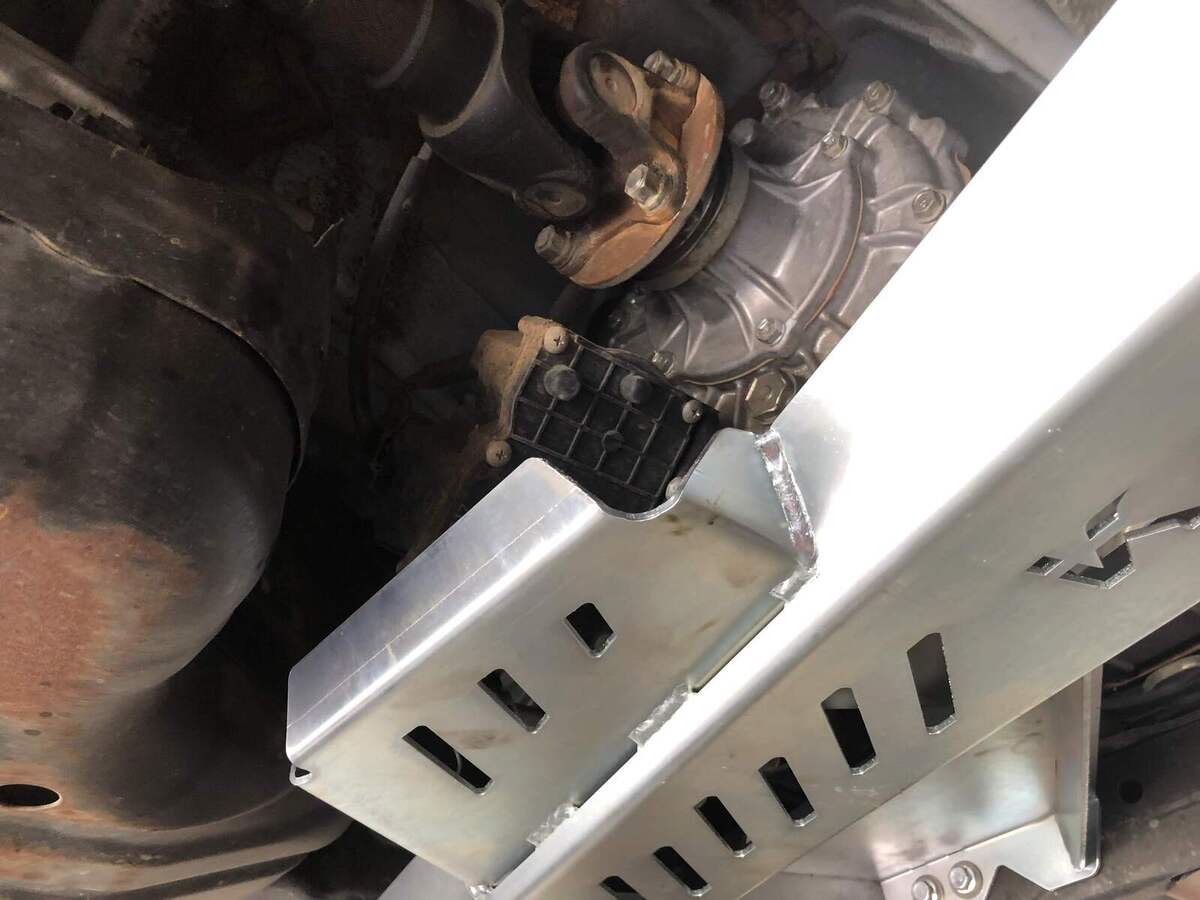

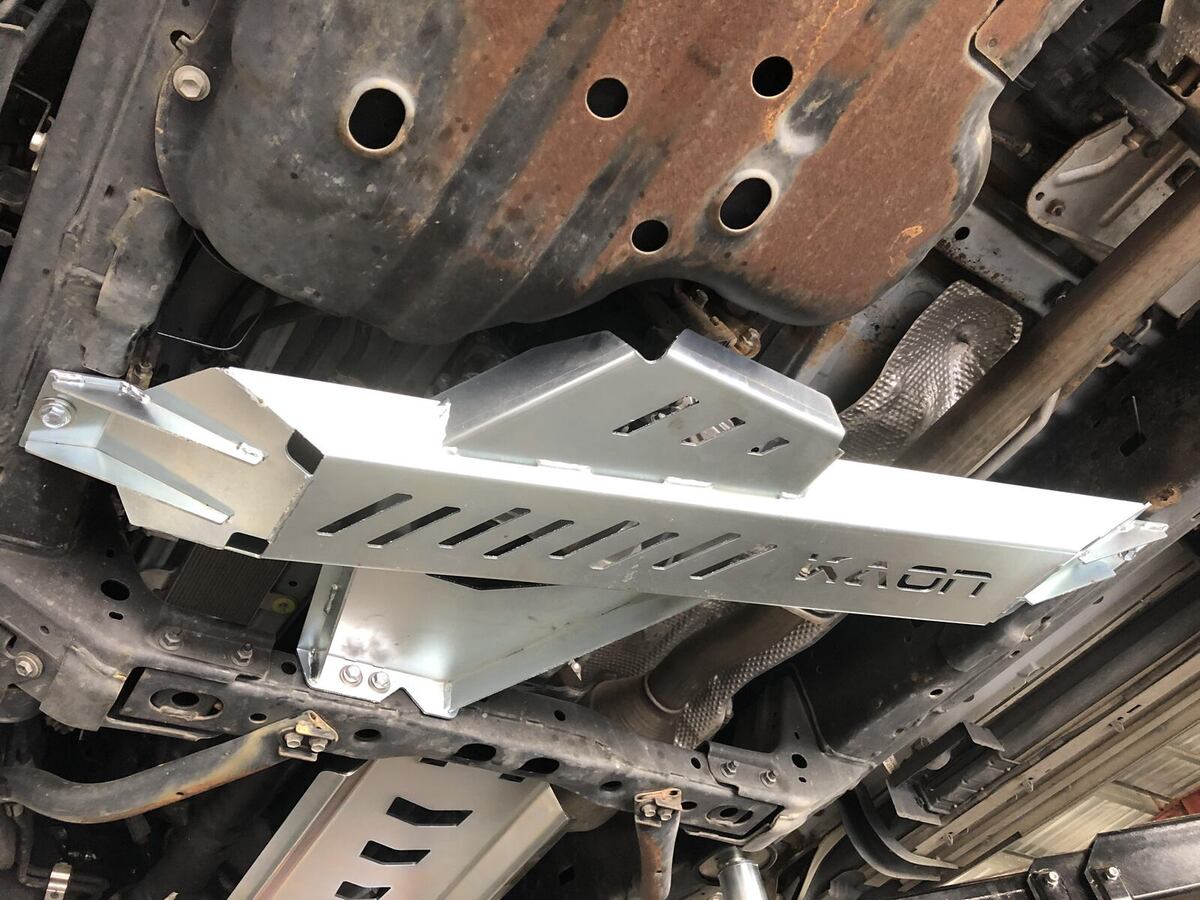

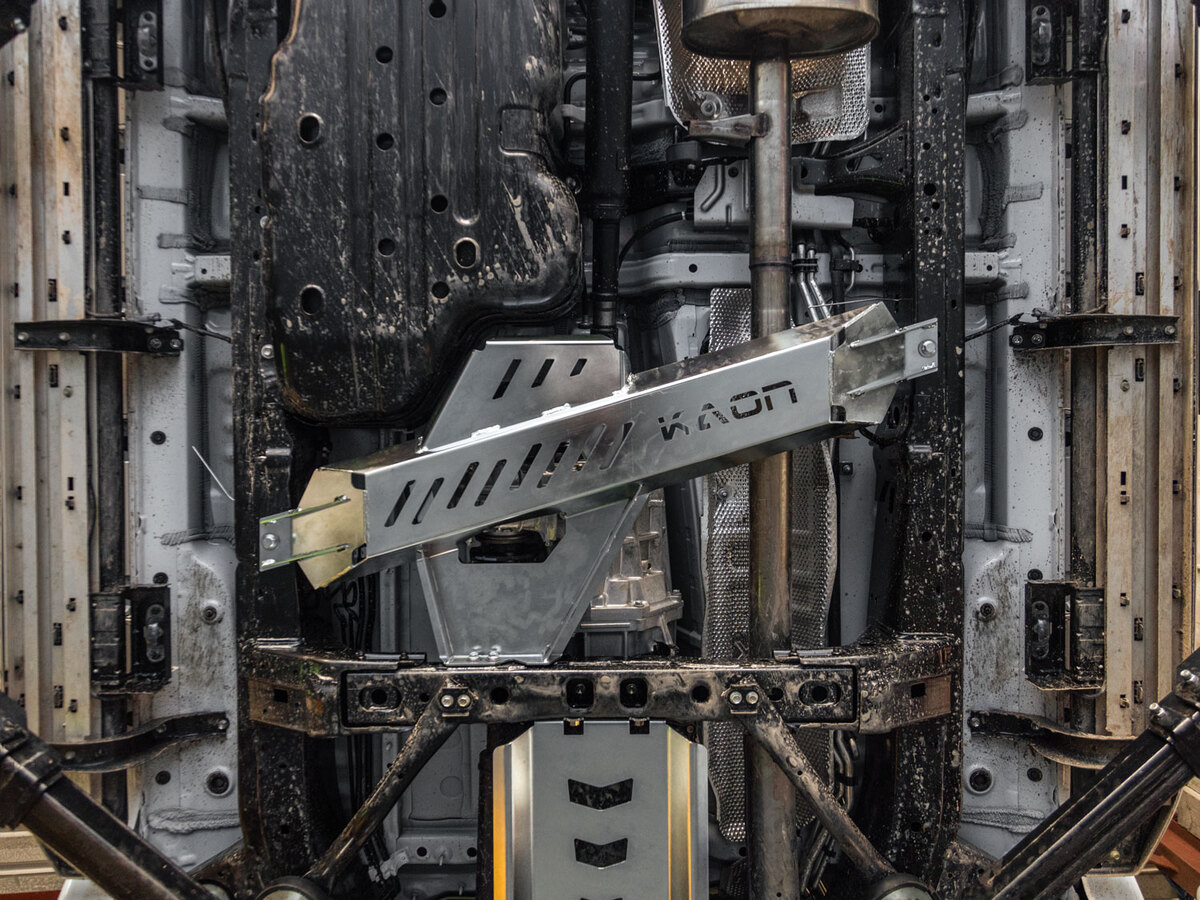

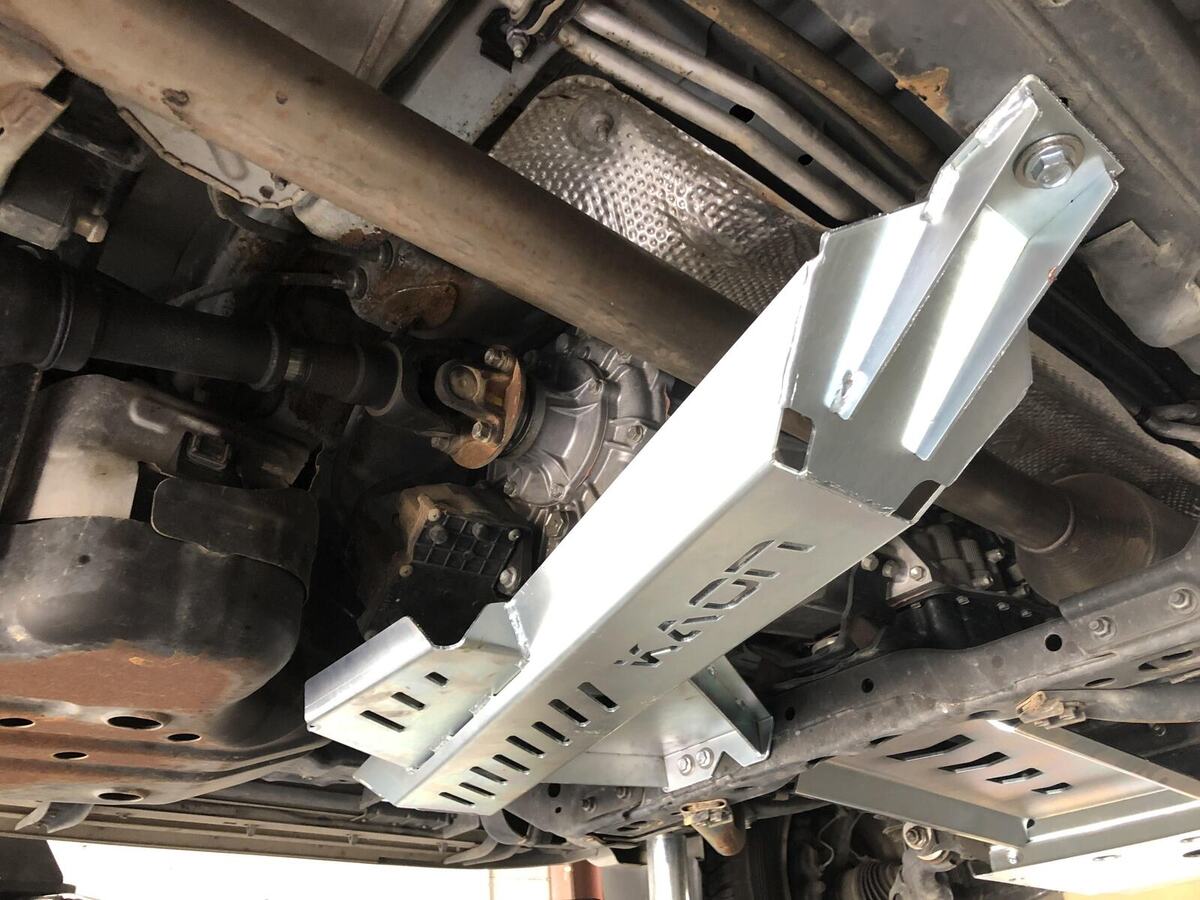

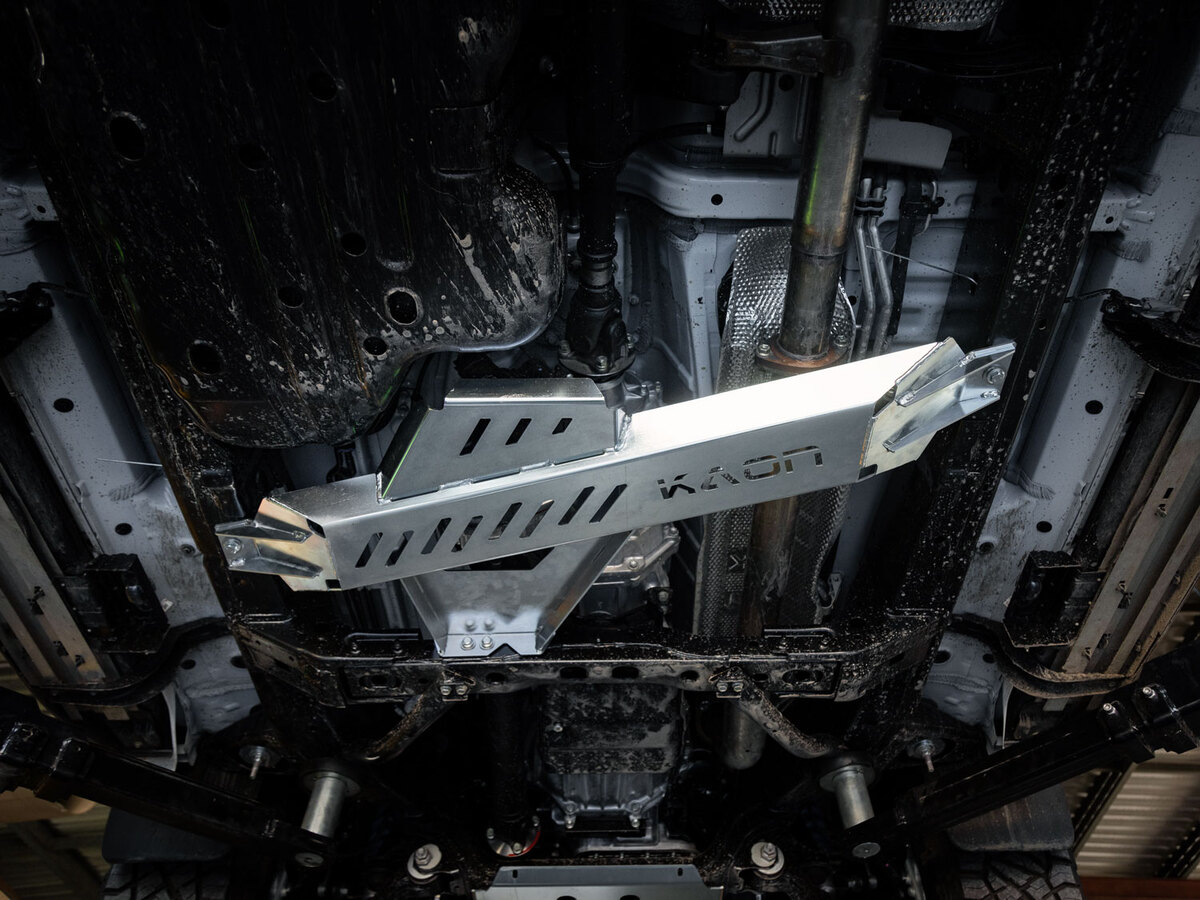

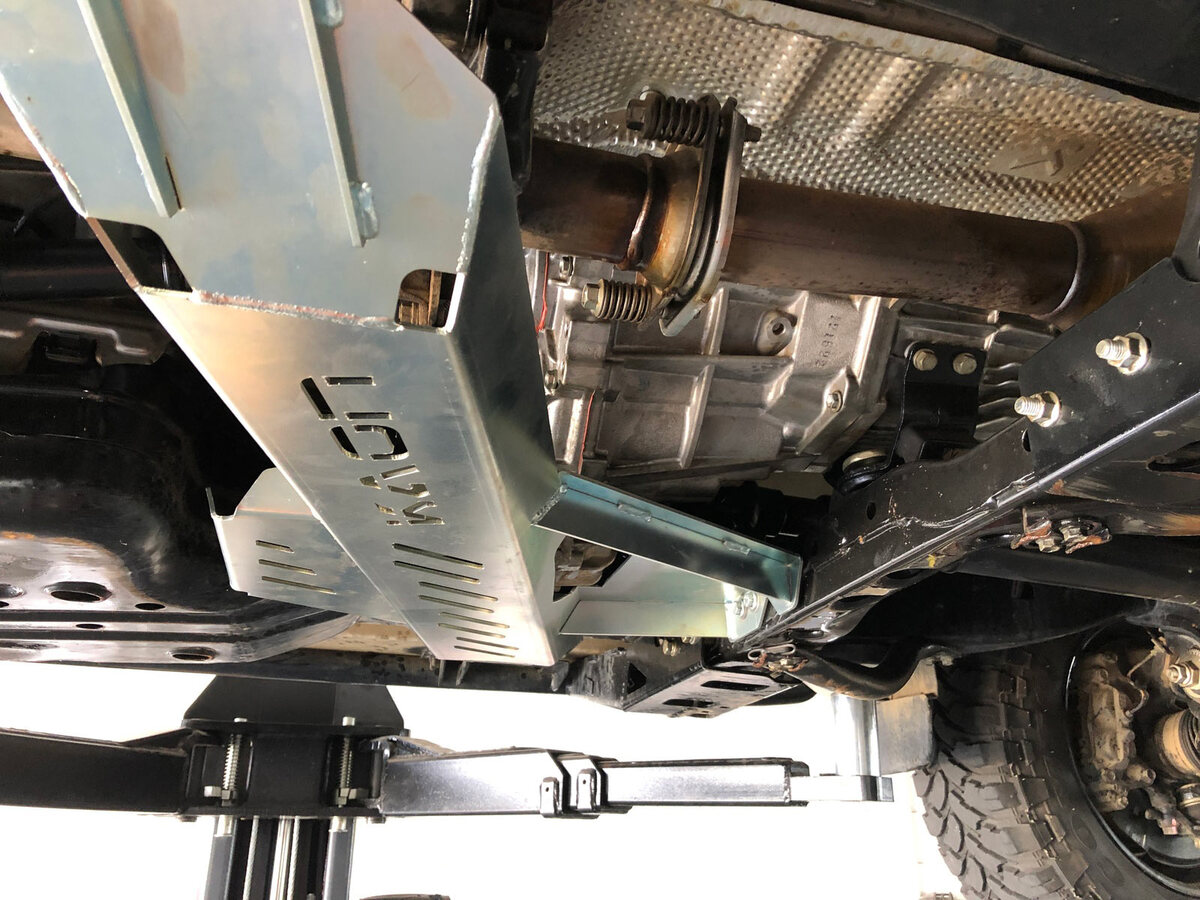

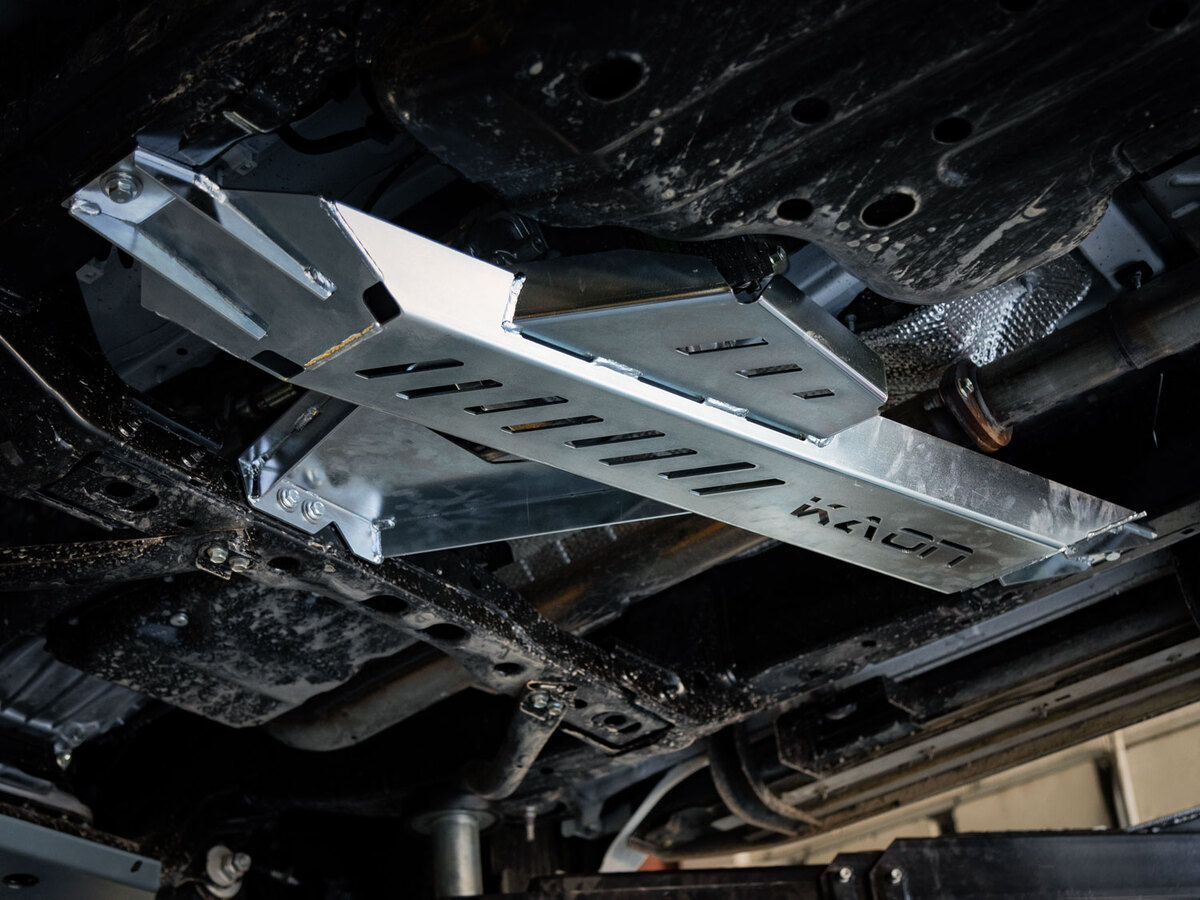

Our Actuator Guard does not mount to the transfer case, but rather mounts to the chassis rail and central cross member, providing unrivalled strength and protection.



  • With cleverly hidden rear reinforcements, our steel plate guards are durable and rugged, prolonging the life of your 4x4.
  • Made from High Tensile 350 Grade Steel with a rust-resistant Electro Zinc Plated finish.
  • Mounts to existing holes and does not require any cutting or drilling.
  • Designed with maximum clearance and optimum approach/departure angles.
  • Recessed mounting bolts and smooth transitions allow you to slide over obstacles found out on the tracks with ease.
  • Strategically placed generous vents and drainage holes to keep everything running cool.
  • Compatible with most brands of protection plates, include ARB and TJM.



To suit Toyota Prado 120 & 150 – Auto and Manual Transmissions:

  • 1 x Actuator & Transfer Case Guard


Australian Designed, Made and Owned.

SKU KS0009
Brand KAON
Shipping Weight 10.0000kg
Shipping Width 0.500m
Shipping Height 0.100m
Shipping Length 1.100m
Shipping Cubic 0.055000000m3
Unit Of Measure ea
