Features

Universal 270 Degree Awning Bracket Set to suit ARB BASE Rack

Adjustable, lightweight and strong – our universal mounting brackets are made to suit most leading 270 Degree Awnings on the market, whilst ensuring that weight is evenly distributed across your roof rack.


FEATURES:

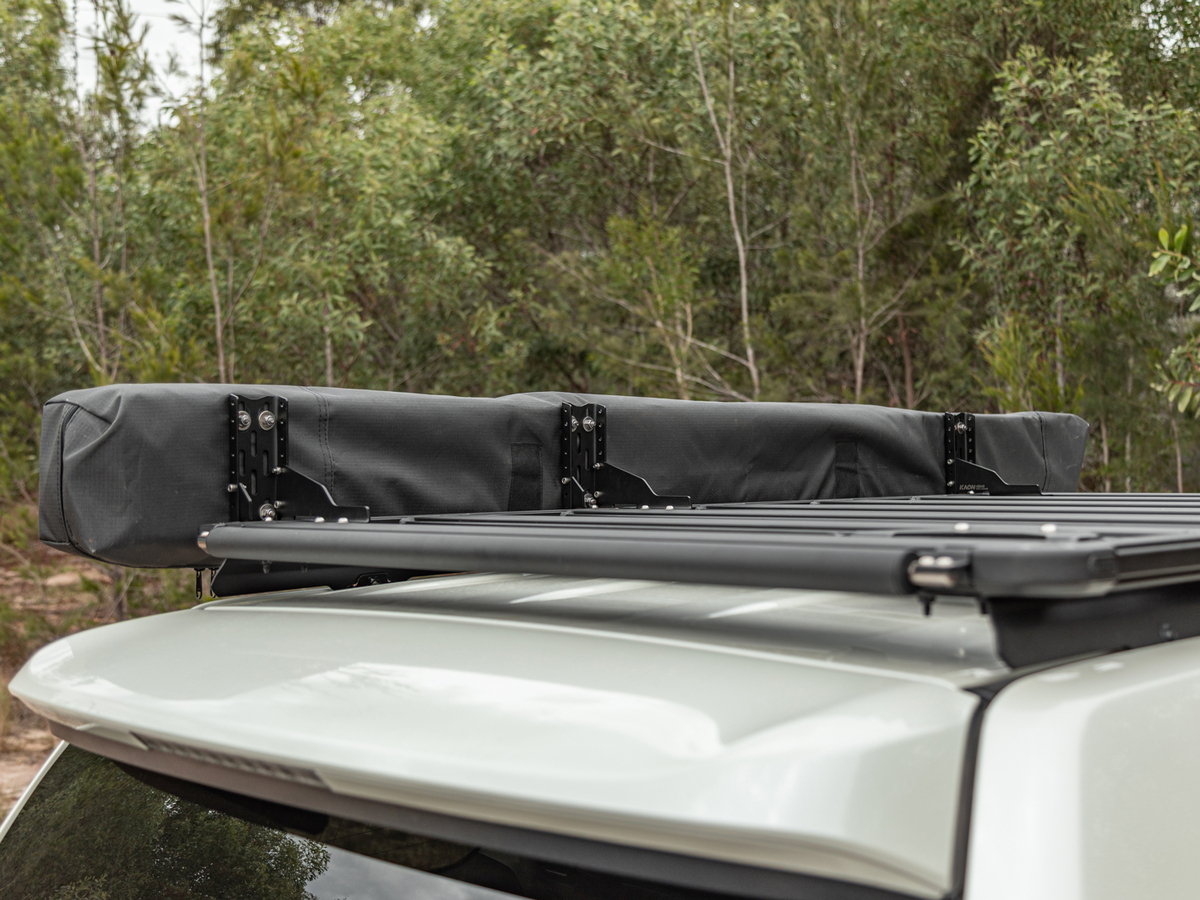

  • 3 brackets are designed to distribute the weight of heavier 270º awnings evenly.
  • Suitable for awnings up to 40kgs.

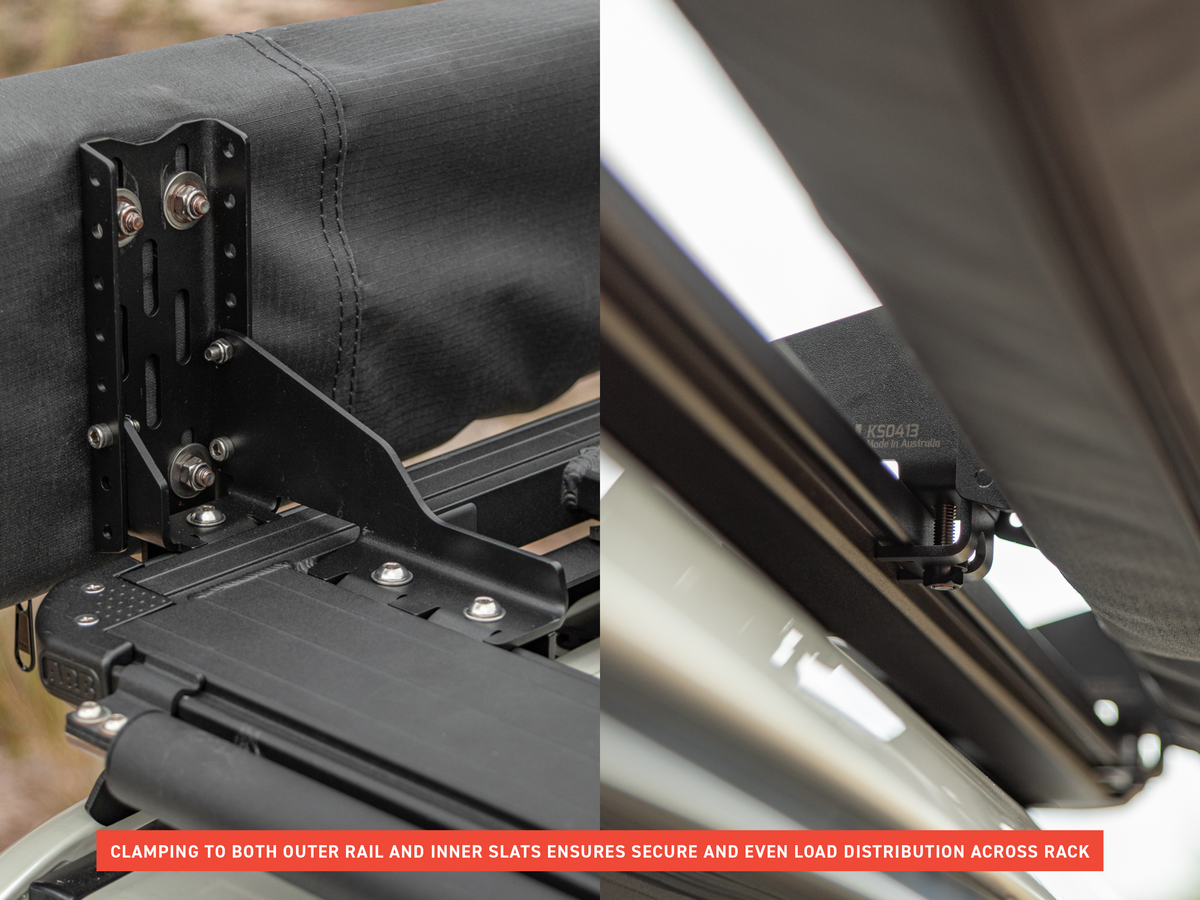

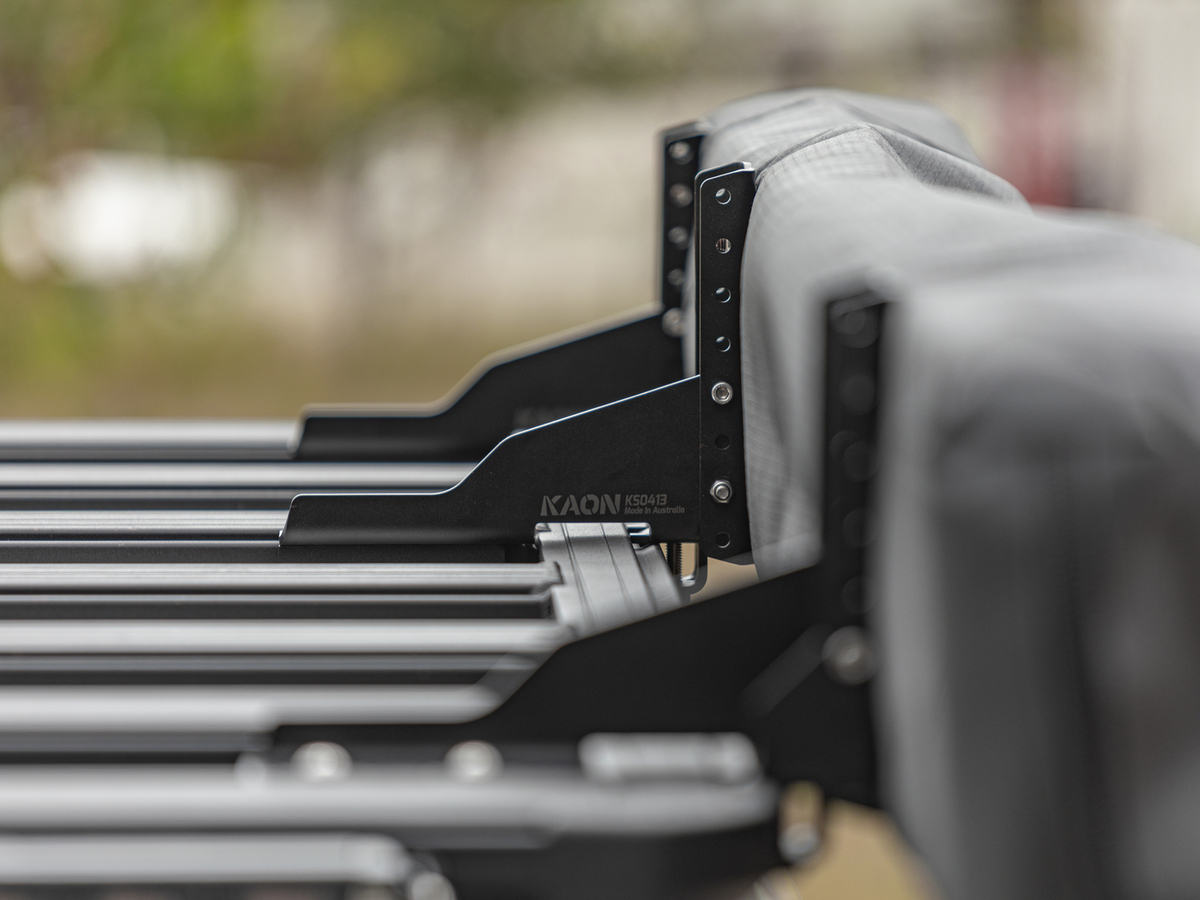

  • Shares the load across the rack more evenly, clamping to ARB's unique dovetail mounting system on both the outer rail and internal slats.

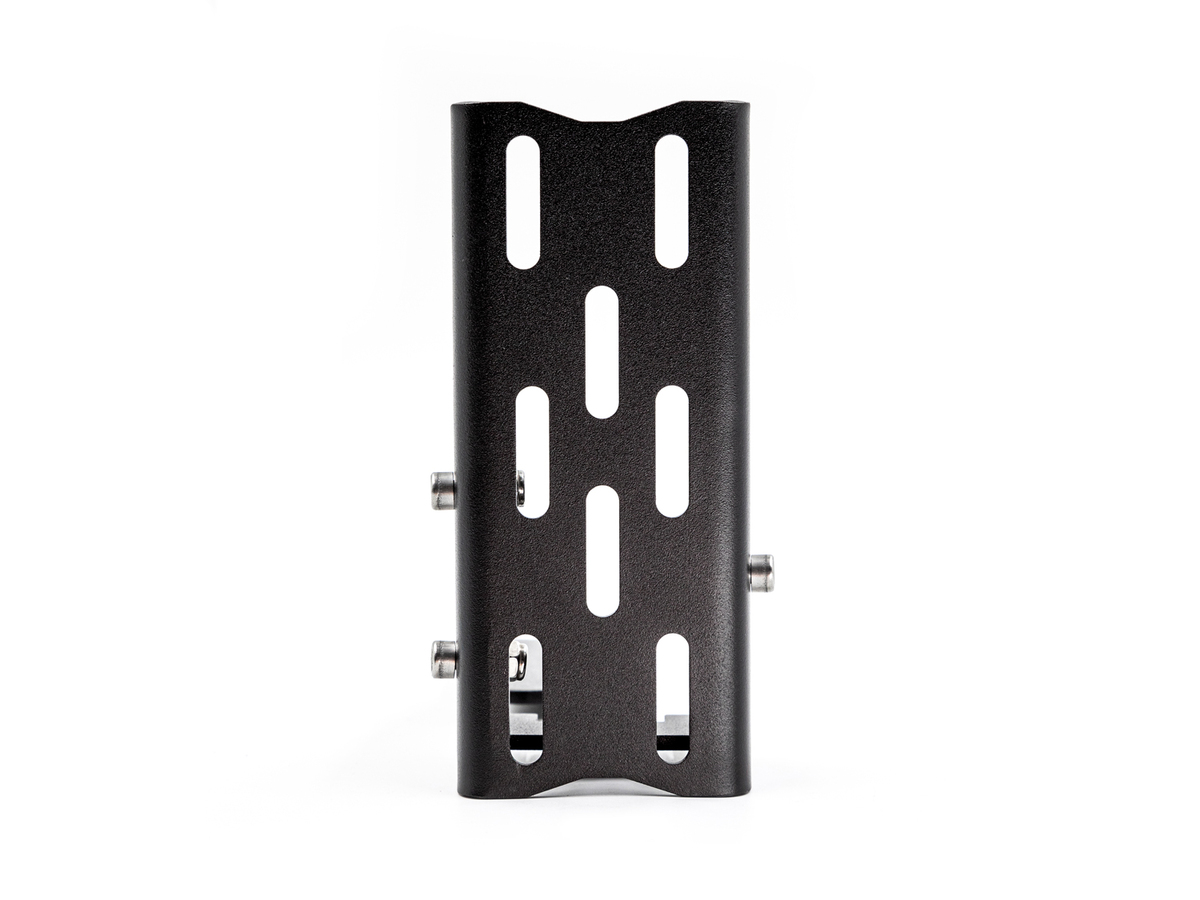

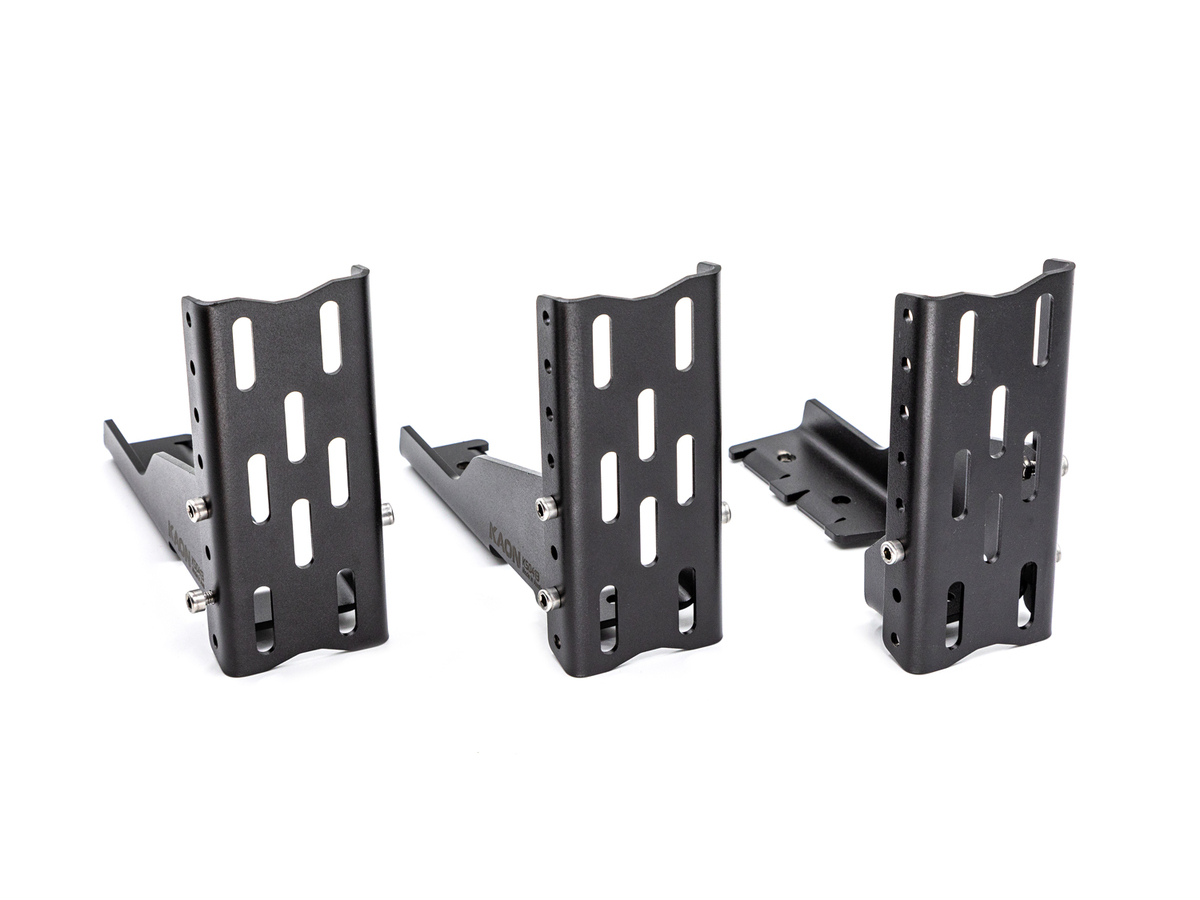

  • Adjustable slotted design and multiple mounting holes provide vertical awning adjustment (5 settings up and down) to suit your setup or height restrictions.

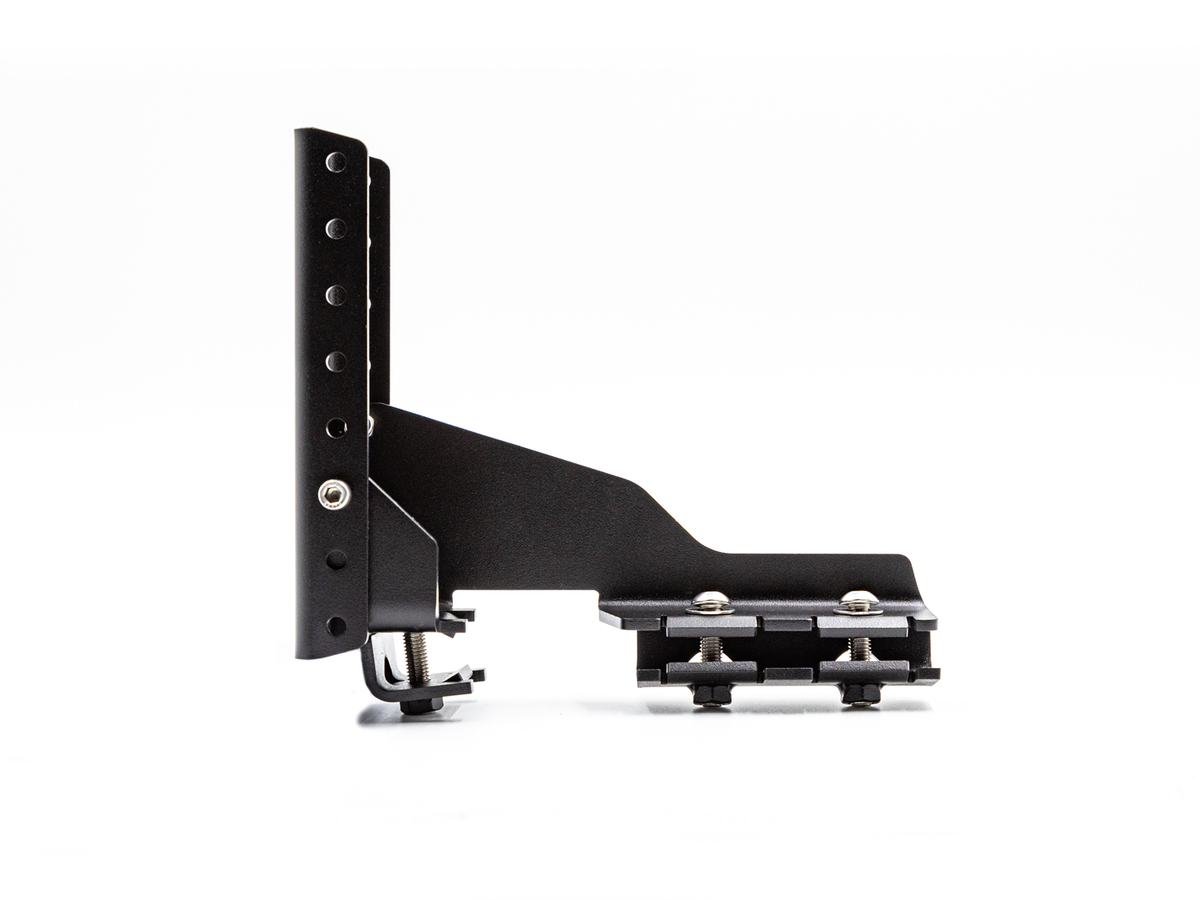

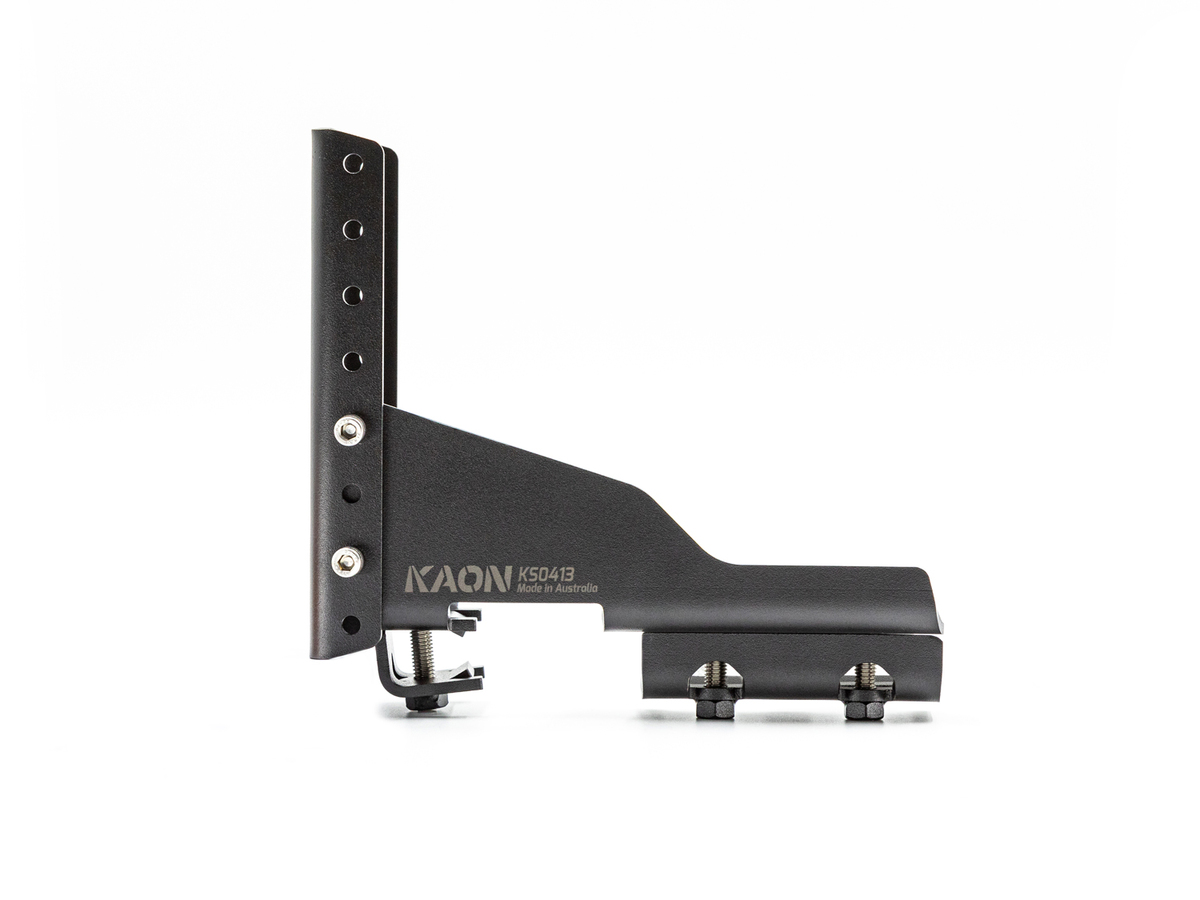

  • Brackets are made from 3mm Stainless Steel and powder coated in a durable textured matt black finish that will blend in with your racks and won’t rust.
  • Engineered folds for added strength whilst reducing overall bracket weight – just 3.7kg for a set. Lighter than provided 10mm steel brackets included with some popular awning brands.



COMPATIBILITY:

  • Designed to suit rear-folding and forward-folding 270 designs, including but not limited to Darche, Oztent, NOMAD, Foxwing, Supapeg, 23Zero, Bush Company, XTM, Kings, Rhino-Rack Batwing, Bushwakka, and Dune.
  • Awning mounting plate is 175mm high with slots to accommodate awning bolt spacing between 25mm to 150mm.
  • Mounting hardware to suit ARB BASE Rack.



INCLUDES:

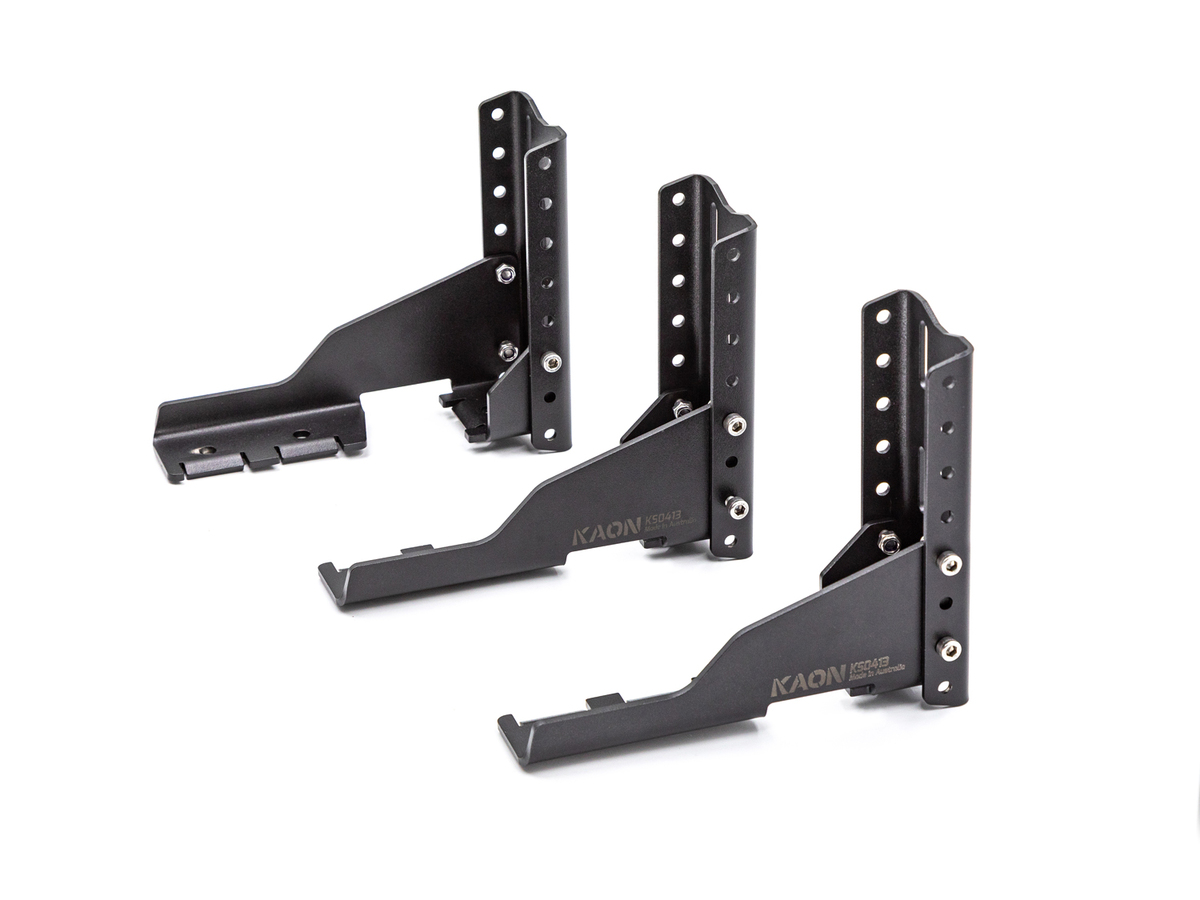

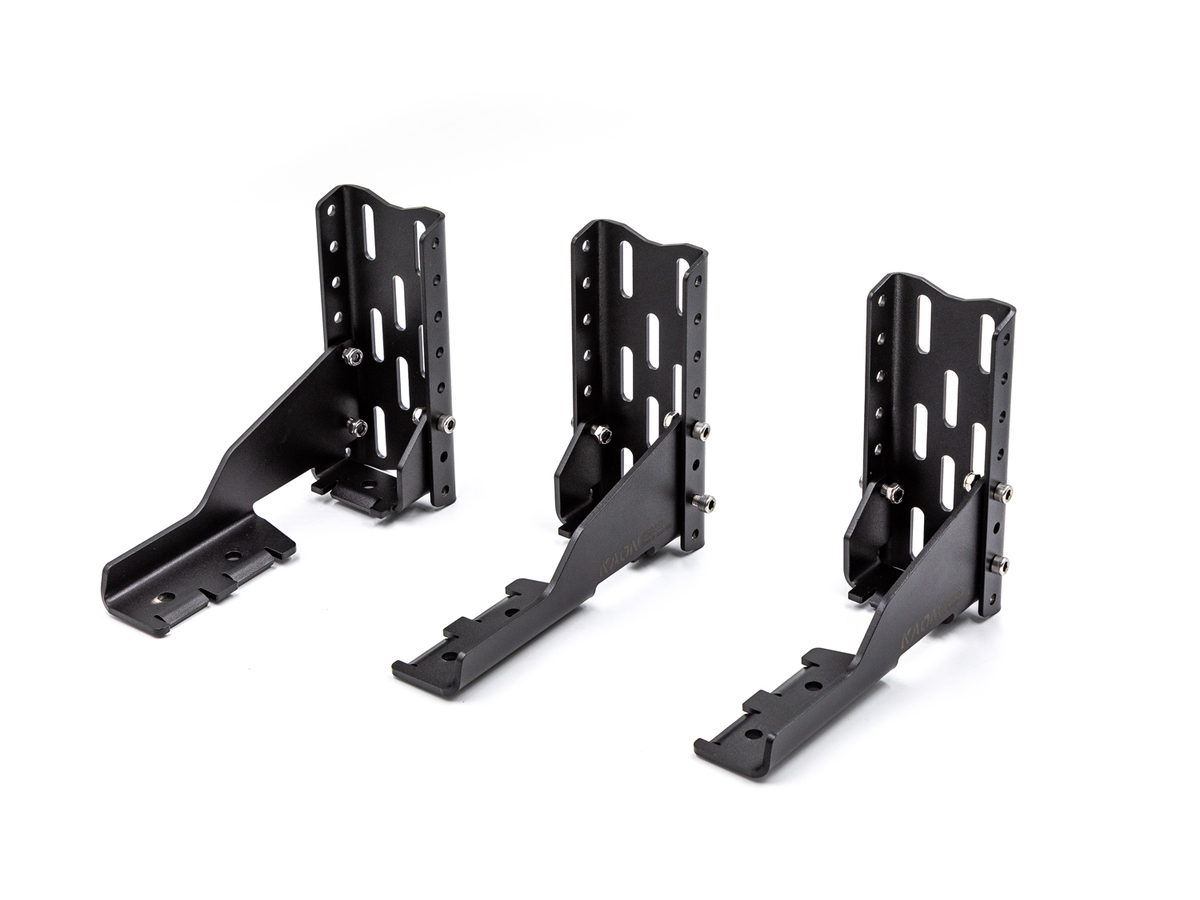

  • 3 x Universal 270º Awning Brackets (1 Set – 1 RHS x 2 LHS) to suit ARB BASE Rack
  • Hardware to mount the bracket to your rack (Note that hardware to attach the awning is not included).



Australian Designed, Made and Owned.


For full dimensions, load ratings, and other important details for this product, see the Product FAQ tab.



KAON Designed & Manufactured Product: This product is not endorsed by or directly affiliated with ARB or any of the listed brands. All product and company names are the registered trademarks of their original owners. The use of any trade name or trademark is for compatibility and reference purposes only.

FAQ

I have a regular Side Awning or 180 Degree Awning, can I use these brackets?

Yes, though depending on the awning you may find the bracket is visible above/below the awning.



What 270 Degree Awnings is this compatible with?

Including but not limited to Darche, Oztent, NOMAD, Foxwing, Supapeg, 23Zero, Bush Company, XTM, Kings, Rhino-Rack Batwing, Bushwakka, and Dune.



Are these brackets compatible with other roof racks?

No, due to the unique mounting system ARB BASE Rack uses. We do have another listing for Universal 270 Degree Awning Brackets to suit Rhino-Rack and Rola Titan here.



My awning is really heavy and we plan to tackle some rough roads, will this bracket be up to the task?

We have travelled long sections of corrugations and understand your concerns. We have designed our brackets for a theoretical static vertical load of 200kg per bracket, and each of the 3 brackets are clamped in 3 places to evenly transfer the load to the roof rack. While we cannot make any claims to the performance of the brackets in your setup, we have strived to get a good balance of strength, weight and functionality.

Specifications
SKU KS0413
Brand KAON
Shipping Weight 3.6000kg
Shipping Width 0.240m
Shipping Height 0.105m
Shipping Length 0.320m
Shipping Cubic 0.008064000m3
Shipping

Please note: our shipping providers are currently experiencing delivery delays of between 7-10 days on top of the below timeframes.

We get it – ordering new gear is exciting, and you'll be keen to receive your order as quickly as possible. We partner with reliable services to offer secure and fast shipping, anywhere in Australia, or the world.  Depending on the provider you have selected, our approximate shipping timeframes are as follows:

Domestic

Metro East Coast – 1-5 business days

Metro West Coast & Regional Aus – 10-15 business days

International

UPS Express International – 5-6 business days

AusPost Express International – 7-12 business days

AusPost International – 2-3 weeks

Orders placed by 12pm AEST Monday to Friday are normally processed and despatched that same day. Orders are typically dispatched within 1-2 days of purchase, if there is a change or issue, we will contact you.

For more information, visit our Shipping page

Returns & Warranty

KAON manufactured products are backed by a 3-year, unlimited km warranty. For more details, see our returns page.

We know that sometimes, things don’t go to plan, and that you might need to return something for a number of reasons.

Returns help us better understand our products and how we can improve them, as well as providing us a chance to better understand your needs as a customer. Ultimately, they help us in our pursuit of constant improvement and innovation.

We are committed to working with you to try and find a solution.

If you think you might need a return, here’s our returns process:

1. Log into your account and click on "Resolution Centre" to get the process started.

Here, you'll be guided through the steps required to lodge your return. If you don't have an account, contact us.

 2. We’ll work with you to work out a solution, as soon as possible.

This will depend on circumstances of your return in line with our policies, and could be a refund, replacement, repairs, credit, partial credit, or refusal. We always endeavour to work out a solution that you are happy with. For more details, see our full returns page here.

3. If required, we will advise you to return the item back to us, via tracked postage or courier.

 Please note that without a verifiable tracking number, you accept full risk of the item not reaching us. Returns not received by us will not qualify for replacement or refund. If you are sending back an item that was damaged, we will reimburse you for any shipping costs incurred to return the item.

Reviews

4.83

6 reviews
(5)

270 Awning Brackets for ARB Base Rack

I had trouble getting my Bushwakka 270 extreme awning under the garage door on my Prado 150. The KAON Brackets not only fit perfectly to the baserack, they enabled me to lower the overall height and keep the awning off the vehicle paint at the same time. ARB Base Rack,KAON Awning Brackets and BUSHWAKKA 270 Awning, what an awesome outcome with KAON making 3 different companies come together.

By: on 12 May 2022

(5)

270 Degree Awning Bracket Set to suit ARB BASE Rac

These awning brackets made it so simple to install my Darche 270 awning to my ARB base rack, which is fitted to my Toyota 200 series Landcruiser. A big thank you to Kaon.

By: on 4 March 2022

(5)

So far so good

My Bush Company awning is heavy v(~30kgs) so needed something stronger than even ARB's own heavy duty brackets. These are solid units and give me a lot of confidence they'll be up to the task. Have driven around 1000 kms so far and all looks rock solid. Nice piece of engineering from the Kaon team.

By: on 16 February 2022

(5)

KAON to the rescue

Recently purchased a 270 awning from The Bush Company and was wondering how I would mount it to my ARB base rack as the 270 awning mounts from ARB only support 25kg and the awning weighs 27kg and the mounts supplied with the awning would not have fitted under the carport. A short time later I had an email from KAON advertising these lil beauties and they solved all my problems, Super easy to fit and remove and height adjustable the new awning is solid as a rock and fits easily under the 2.12 metre carport.

By: on 22 December 2021

(4)

270 degree awning bracket

Great strong brackets. The intended positioning of the brackets with the two forward facing brackets to be mounted at the front doesnt really work when the awning (quick pitch awning) has the first set of holes predrilled into the hinge section for maximum strength. I had to put the forward facing brackets towards the rear of the rack to try and maximise the support as you lose the width of the planks running across the car, it also allows you to position the rear facing bracket at the front an extra plank forwards. All in all a great product and very happy with them and i appreciate they are universal brackets and trying to get them to suit every awning would be tricky. I very nearly bought a bracket that wraps around the side and rear of the rack which would allow me to set the awning back a fraction more but the alignment for the front 2 brackets wouldn’t necessarily line up….

By: on 10 December 2021

(5)

Amazing brackets for a 270c awning

I’m so happy to use these brackets on my bush company xt270 awning. I’ve done over 200km so far and they are sturdy and easy to use. I really like the 3 sets of brackets on and how they connect to the baserack.

By: on 10 November 2021
