Stealth Flush Folding Maxtrax & TRED Mounting Brackets

Nothing beats the roof rack for storing your Maxtrax & TRED recovery boardswhile on the road. But we know trying to fit within your garage clearance can be a challenge, and having to take off mounting brackets after every trip is a hassle! We designed our folding brackets so you can remove your recovery boards and simply fold down the mounting pins when they’re not in use. Better yet, our Stealth Mount brackets allow the pins to fold neatly flush with your rack, so when out of use it’s as though they aren’t there at all.



FEATURES:

  • Our Stealth Mount folding brackets are as low as it gets. No need to remove the pins when you take your recovery boards off, when folded down they come in at just 4mm high (10mm high at the bolt heads).
  • When out of use, the near-flat design allows for items to be stored and mounted above. Leaving you with extra space to put your swag, tent, marquee – even surfboards – without ever removing the bracket.
  • Secure and lockable mounting system so your recovery boards will stay put.
  • Roof mounting frees up valuable room and keeps your interior clean.
  • Quick and simple to install. Brackets are made from 4mm Stainless Steel and powder coated in a durable textured matt black finish that will blend in with your racks and won't rust.
  • Will mount 2 or 4 Maxtrax MKII tracks using standard pins. Please see FAQ for details for other Maxtrax or TRED varieties

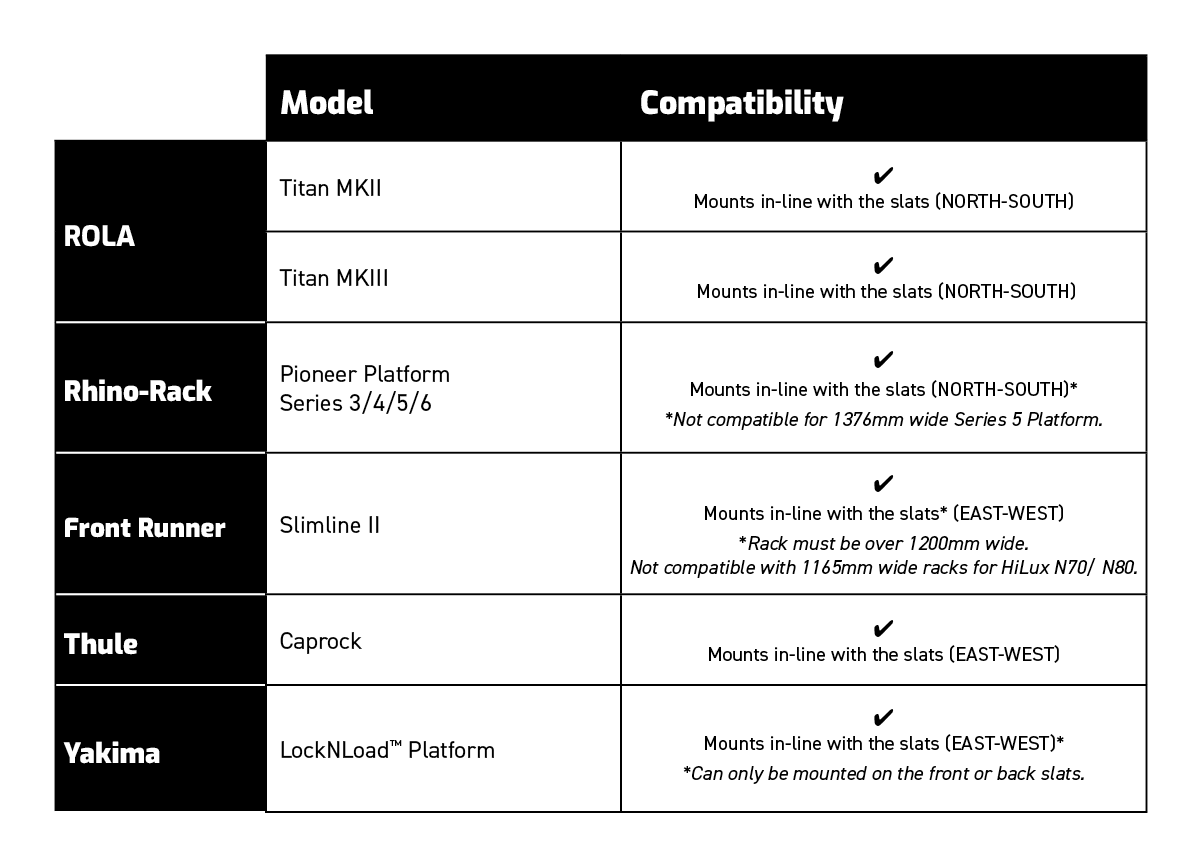

COMPATIBILITY:

Due to the flush folding nature of these brackets, they can only be mounted in the direction of your platform's slats (parallel). Clearance to any lateral cross members also needs to be taken into consideration.

  • **Rhino-Rack Pioneer Platform S4 S5: NORTH-SOUTH only. Not compatible with the 1376mm wide Series 5 Platform Rack.
  • Rola Titan Tray: NORTH-SOUTH only
  • Front Runner Slimline II: EAST-WEST only, on racks over 1200mm wide (Not compatible with 1165w racks for Hilux N70 or N80).


INCLUDES:

Select your roof rack type (Rhino-Rack, Rola, Front Runner) above:

  • 2 x Stealth Mounts
  • 4 x Nuts and stainless steel bolts (does not fit Series 6 Rhino Platform)
  • Optional: 4 x Maxtrax or TRED Mounting Pins – Select your preference above



**PLEASE NOTE:

Not readily compatible with Series 6 Platform Rack.
Can be attached with ZwifLoc hardware (not included).
Supplied nut blocks can be installed by dissassembling the rack to allow insertion of the nut blocks.


Australian Designed, Made and Owned



After a folding bracket that can be mounted in both directions? At 30mm high, our standard Folding Brackets are still low profile when not in use, find them here.

This product is proudly certified as Australian Made & Owned.

When you choose Australian-Made, you're not only selecting a high-quality product designed for our tough conditions; you're supporting a network of Australian businesses and families. Your choice provides local jobs and training, helping us in our mission to ensure Australia continues to push boundaries in design, innovation and manufacturing.

FAQ

Can this mount be used on a Yakima LockNLoad Platform Rack?

The Stealth Folding Mount can be used on the Yakima LockNLoad front or back slats only. Select the Rhino Platform option to get the correct hardware for use with a Yakima rack.

Which mounting pins are best for my setup?

There are different pin options depending on which recovery boards you have. Here's what we recommend:

MAXTRAX Recovery Tracks

  • Maxtrax MK II Boards, Maxtrax Mini and Jaxbase: Maxtrax 17mm pins
  • Maxtrax Xtreme Boards: Maxtrax X-Series Pins
  • 2 x Maxtrax MK II + 2 x Maxtrax Xtreme: Maxtrax Hybrid Pins

TRED Recovery Boards

  • TRED PRO, GT or HD: Either TRED Threaded or Quick Release Pins
  • TRED Pins are usually sold in sets of 2. We sell TRED Pins in sets of 4, to ensure optimum use with our mounts.

Please note our mounts are not compatible with the 'TRED originals' range of 800 and 1100 boards available before 2019.


The Stealth Folding Mount can be used on the Yakima LockNLoad front or back slats only. Select the Rhino Platform option to get the correct hardware for use with a Yakima rack.

There are different pin options depending on which recovery boards you have. Here's what we recommend:

MAXTRAX Recovery Tracks

  • Maxtrax MK II Boards, Maxtrax Mini and Jaxbase: Maxtrax 17mm pins
  • Maxtrax Xtreme Boards: Maxtrax X-Series Pins
  • 2 x Maxtrax MK II + 2 x Maxtrax Xtreme: Maxtrax Hybrid Pins

TRED Recovery Boards

  • TRED PRO, GT or HD: Either TRED Threaded or Quick Release Pins
  • TRED Pins are usually sold in sets of 2. We sell TRED Pins in sets of 4, to ensure optimum use with our mounts.

Please note our mounts are not compatible with the 'TRED originals' range of 800 and 1100 boards available before 2019.


Video Guide
Specifications
SKU KS0326
Brand KAON
Shipping Weight 0.3500kg
Shipping Width 0.250m
Shipping Height 0.350m
Shipping Length 0.350m
Shipping Cubic 0.030625000m3
