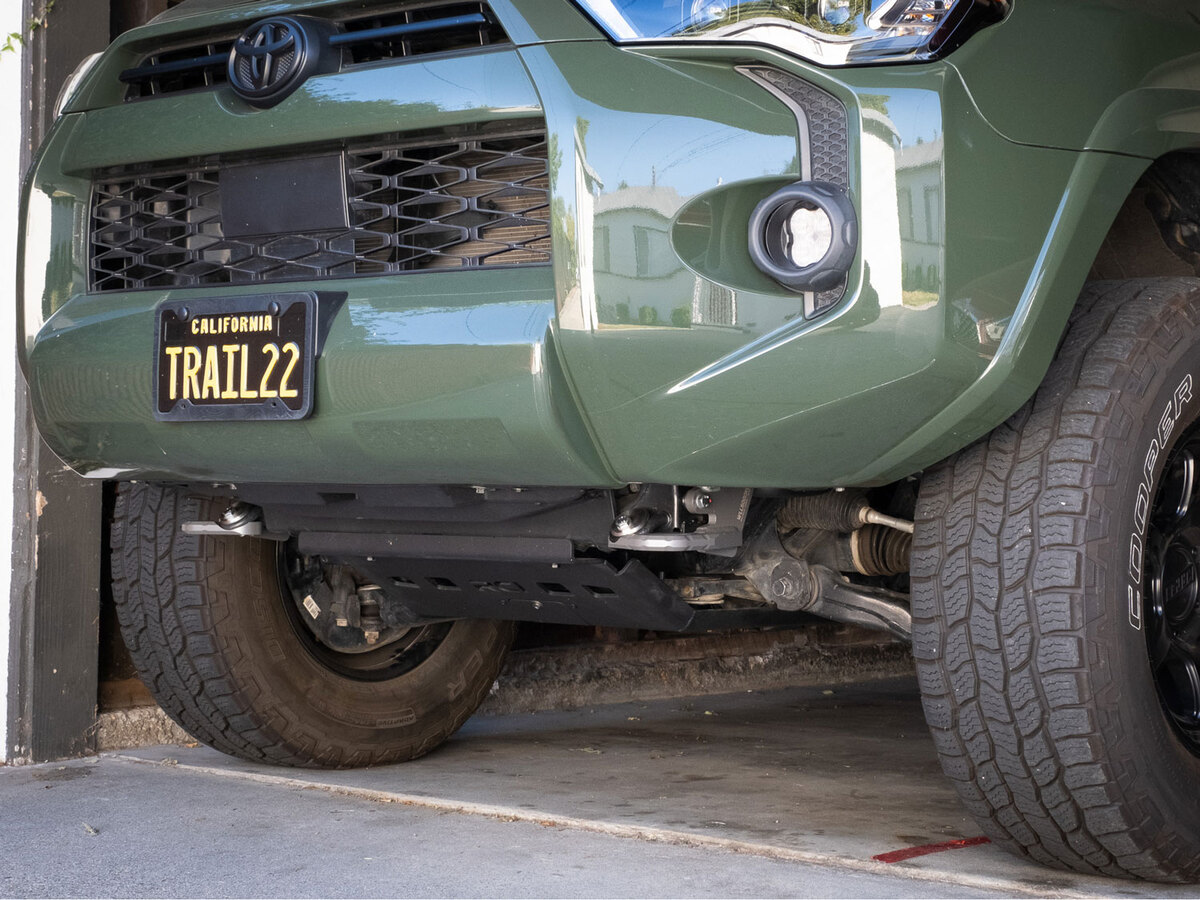

Recovery Tow Point to suit Toyota Prado 150, FJ Cruiser & 4Runner (Gen 5)

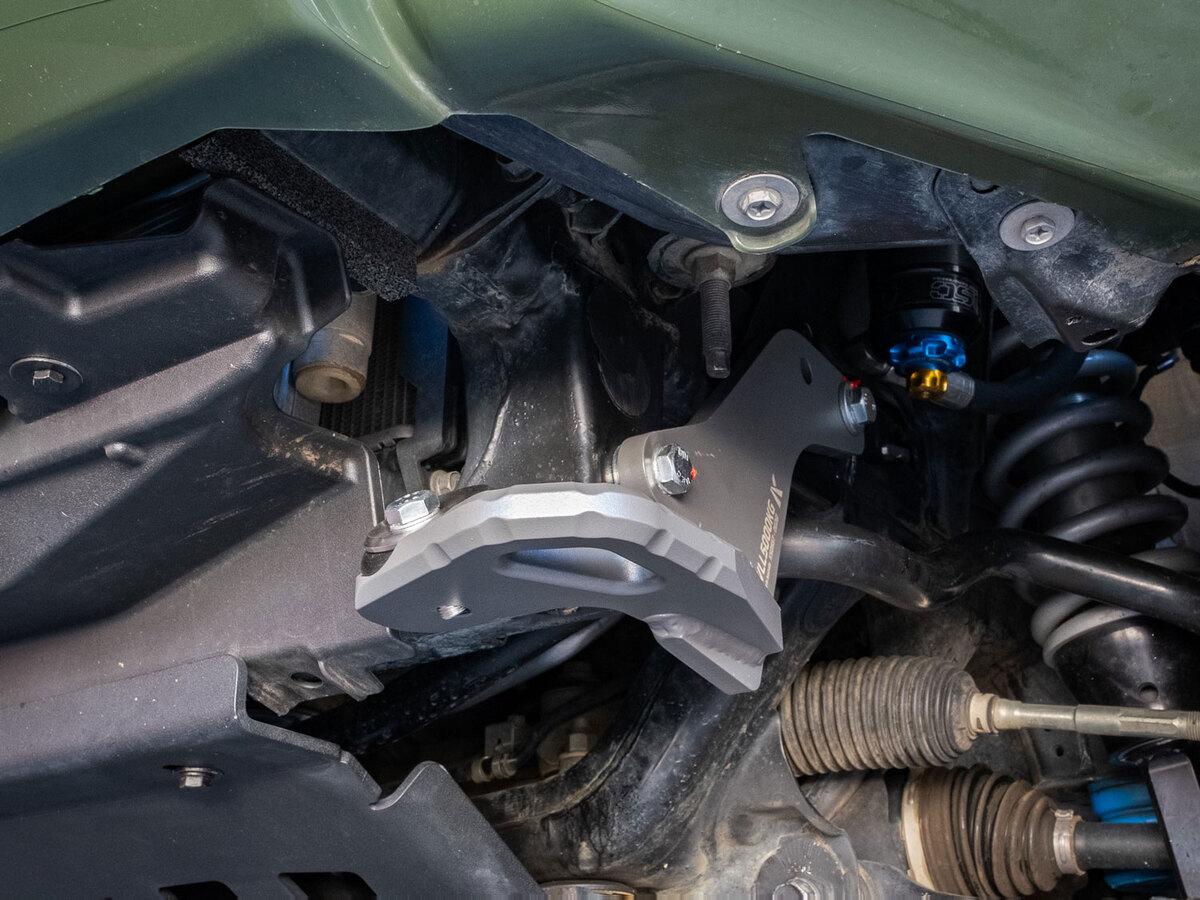

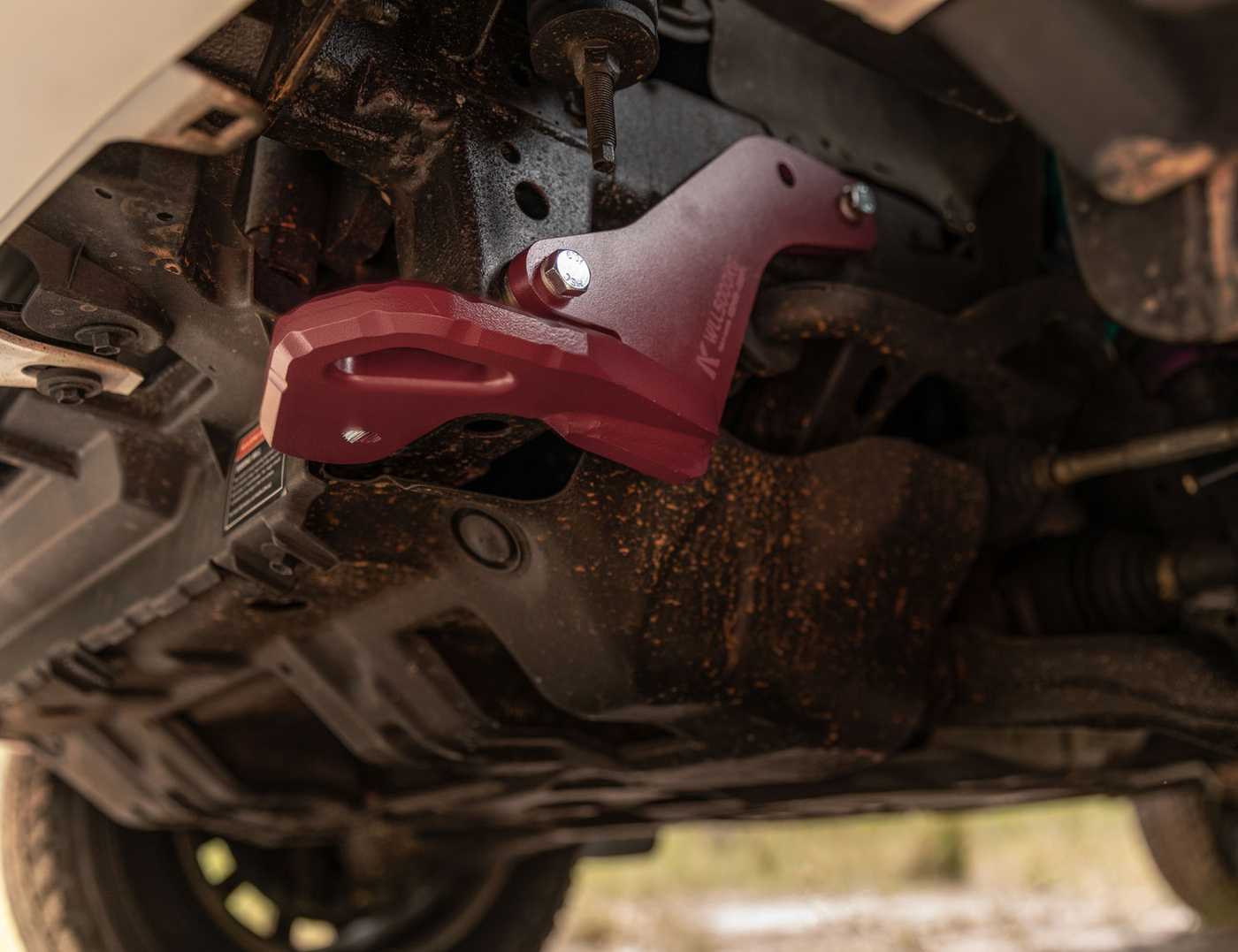

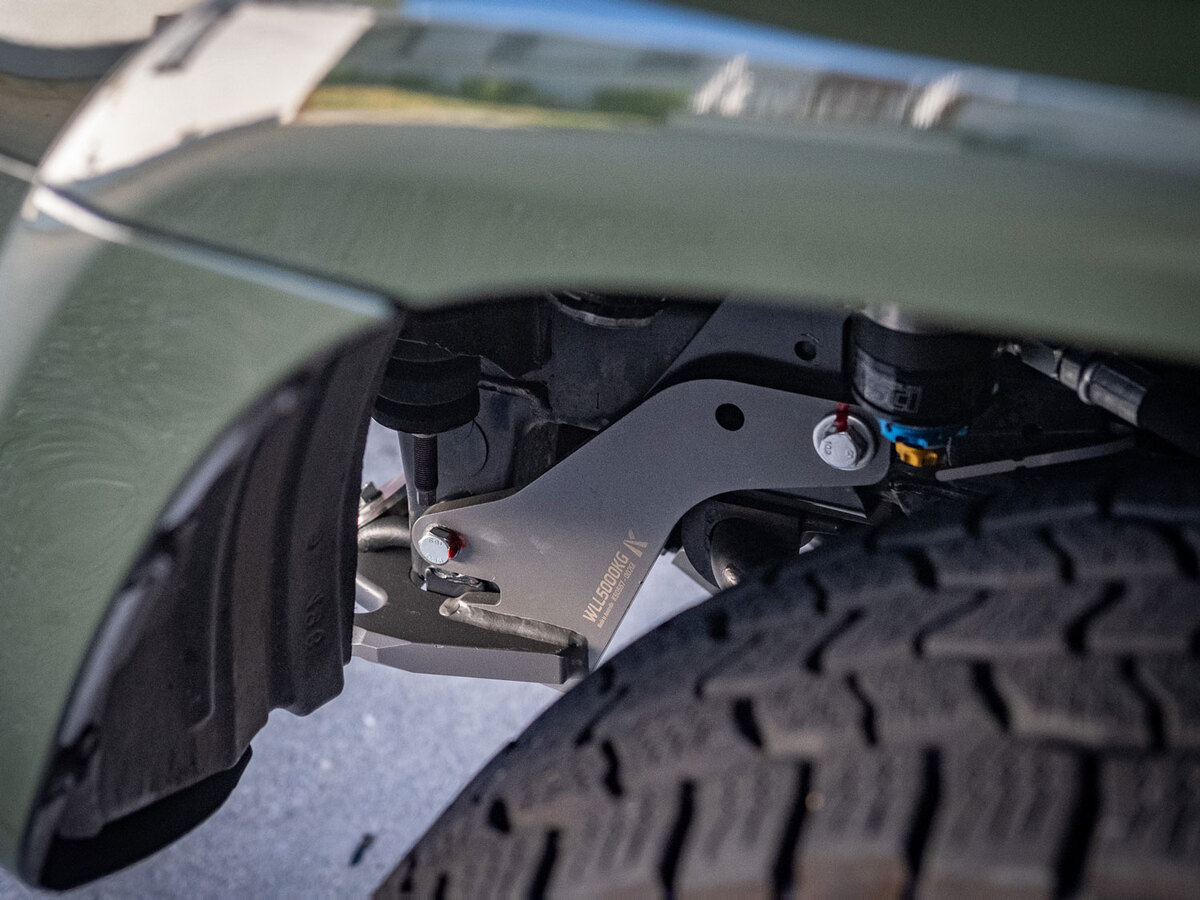

If you've done your homework, you'll know that our recovery point for the Prado 150, FJ & 4Runner is a little unconventional. Not only does it secure to the standard mounting locations, but it also takes up a third point: the factory tie-down point. This trio gives our point a unique advantage.

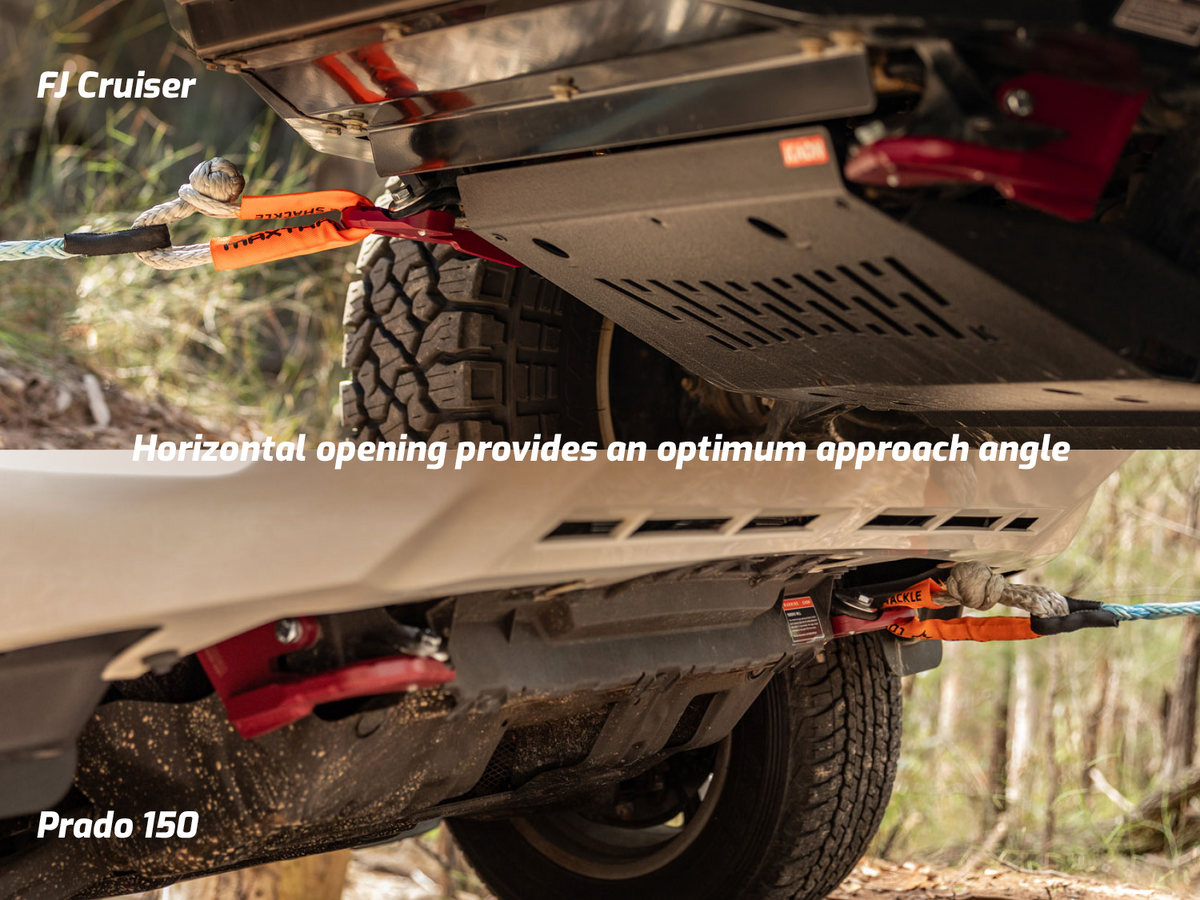

Whilst strong, the standard two mounting points are vulnerable to a peeling type of force during less-than-ideal recoveries. The addition of our third mounting location on a second plane shares loads more evenly and results in an incredibly robust point with superior performance. Utilising this second plane also allows us to leverage the design for a horizontal opening, allowing for greater clearances and approach angles, and we all know just how important that is when heading off-road.



FEATURES:

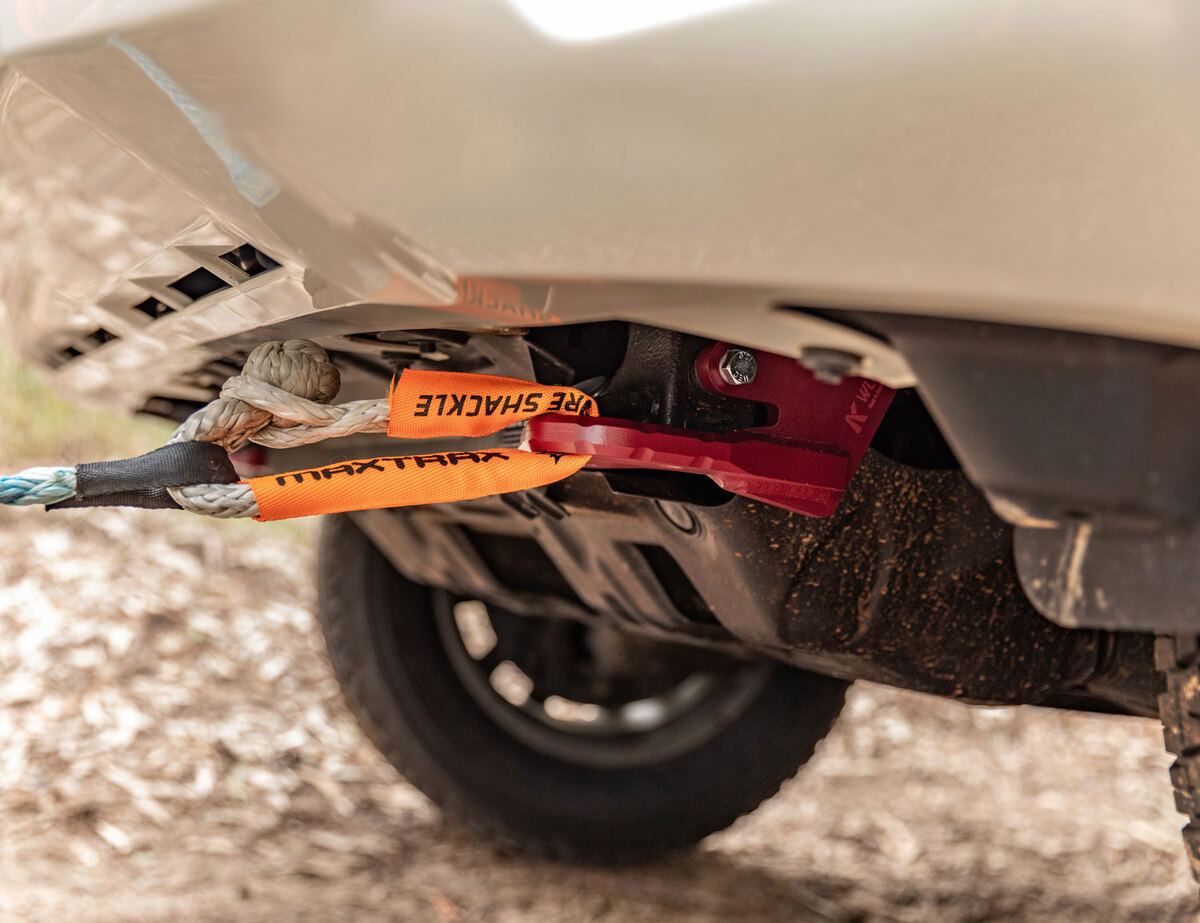

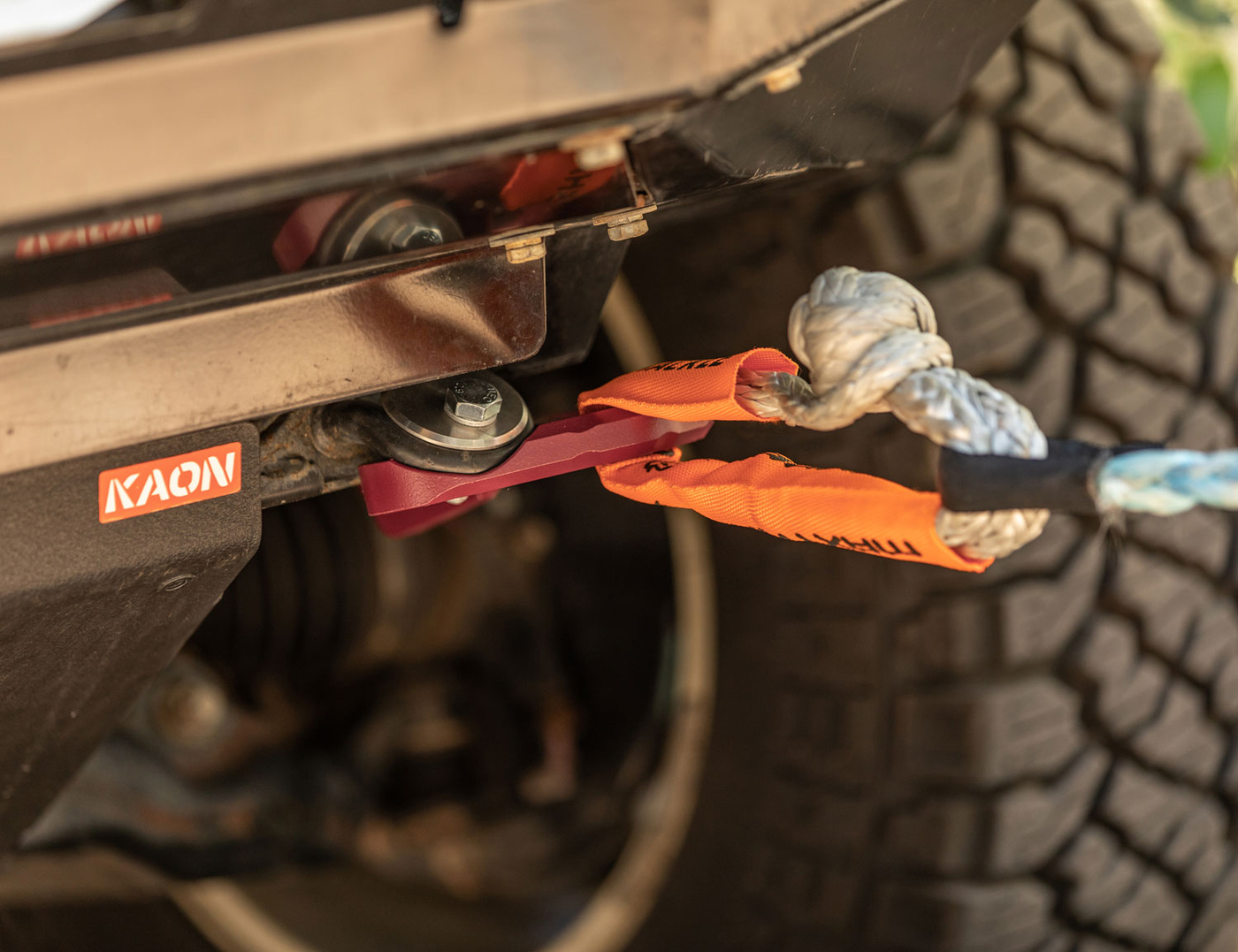

  • Soft shackle friendly, with a large opening and rounded edges.

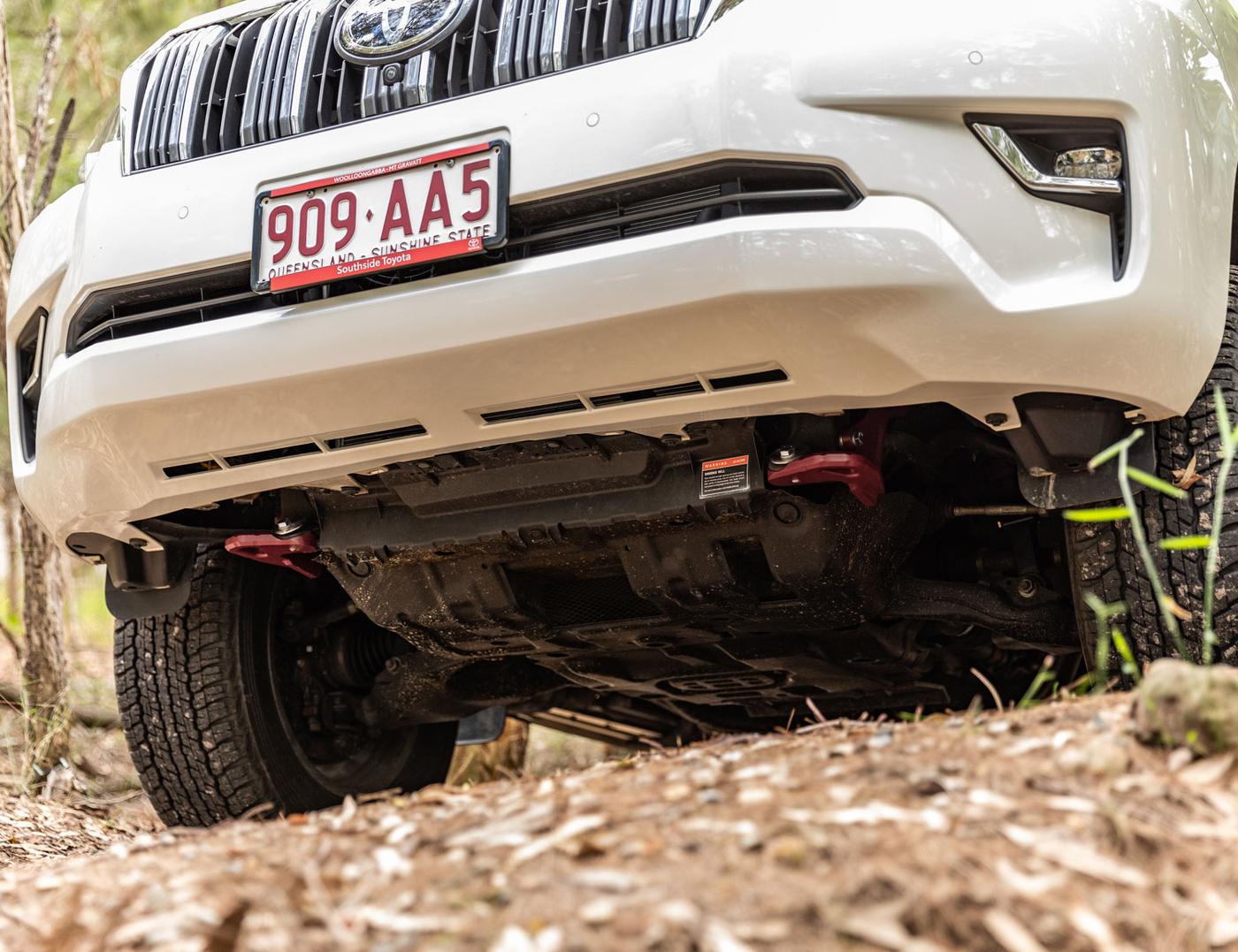

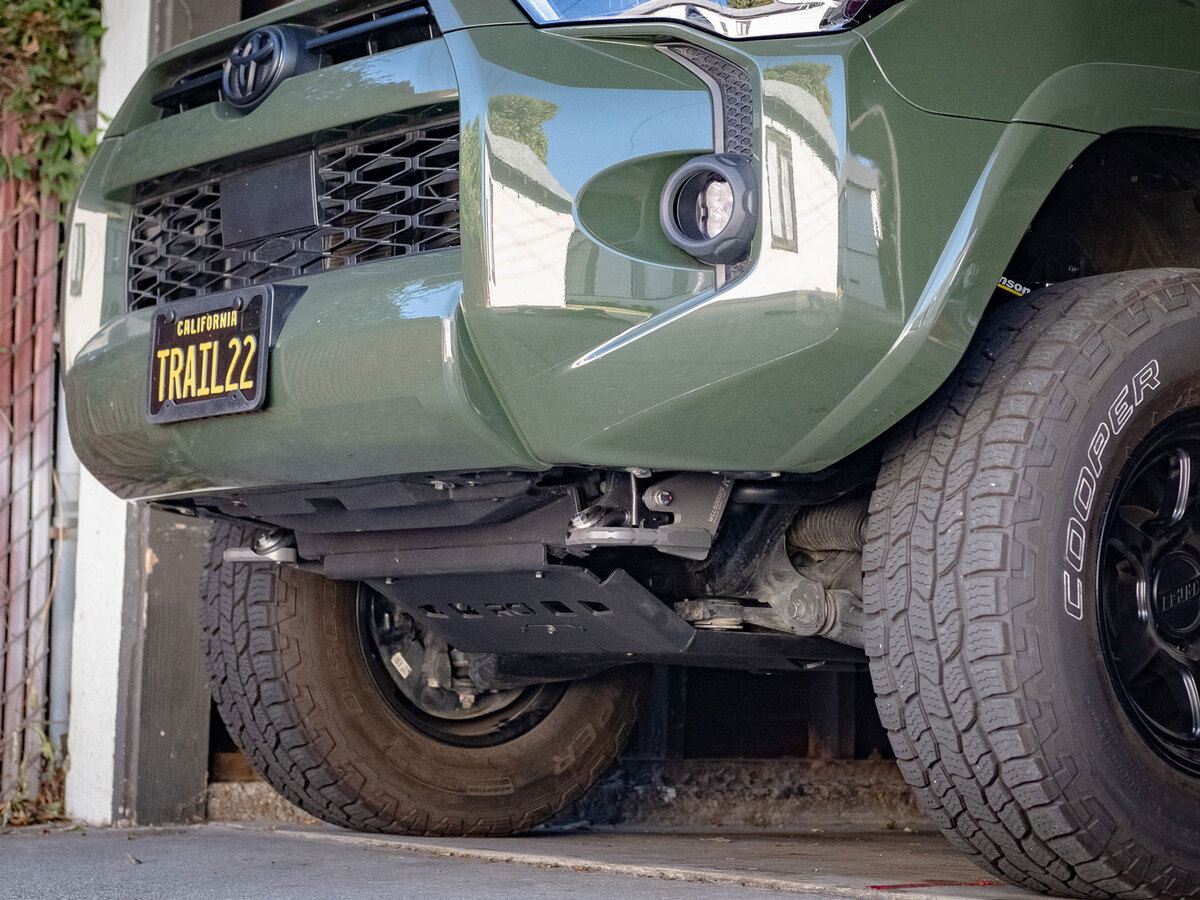

  • Low profile and specifically designed to suit the Prado/FJ/4Runner chassis, for optimum approach/departure angles.
  • 20mm thick Australian Made Steel, Billet CNC Machined.

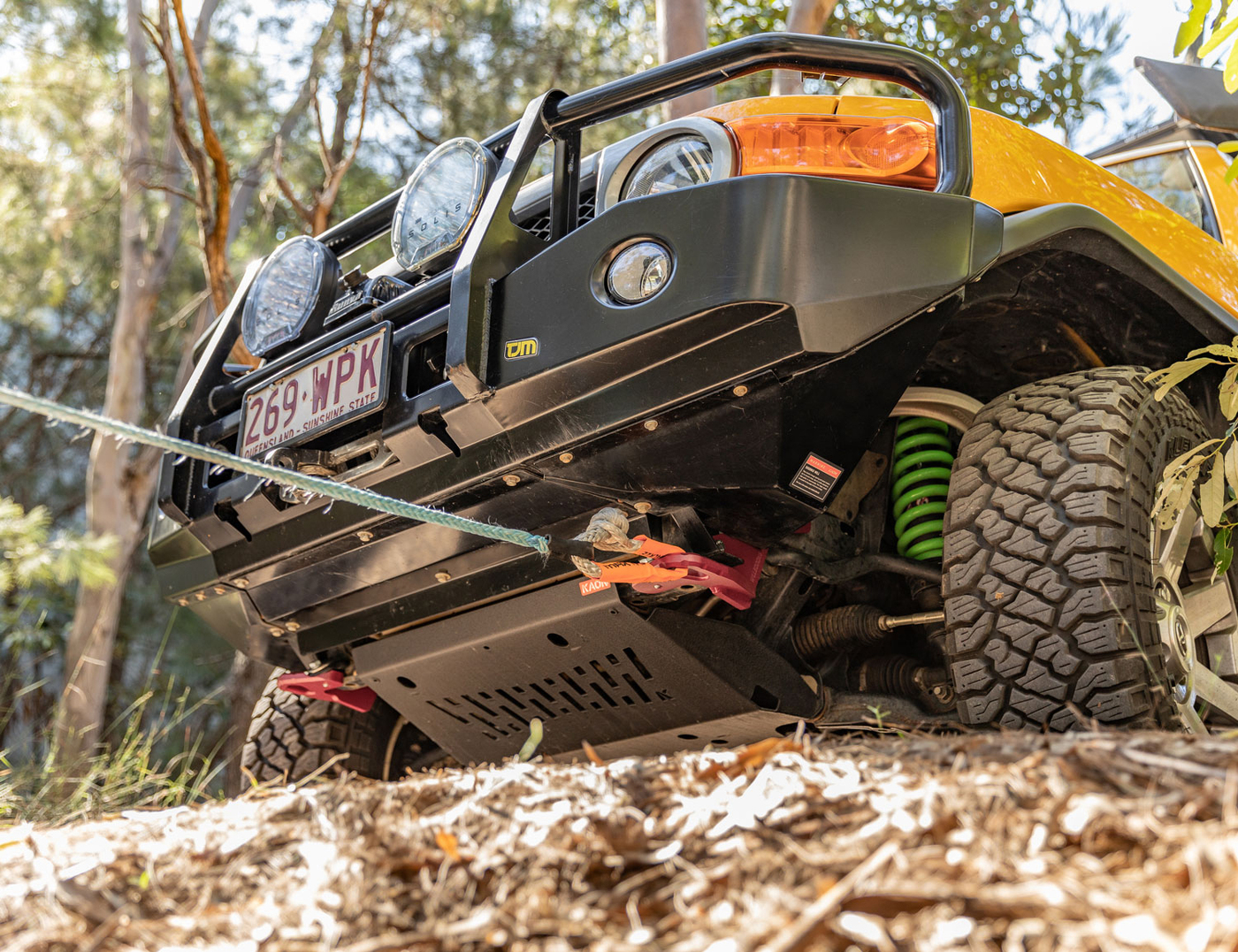

  • Designed to safely manage stresses generated during an angled recovery.
  • A textured powder-coat finish in Tanami Desert Red or Aramac Desert Grey is both hardwearing and looks great.
  • Tested and rated to a Working Load Limit (WLL) of 5000kg.
  • Supplied with grade 10.9 high tensile bolts.



COMPATIBILITY:

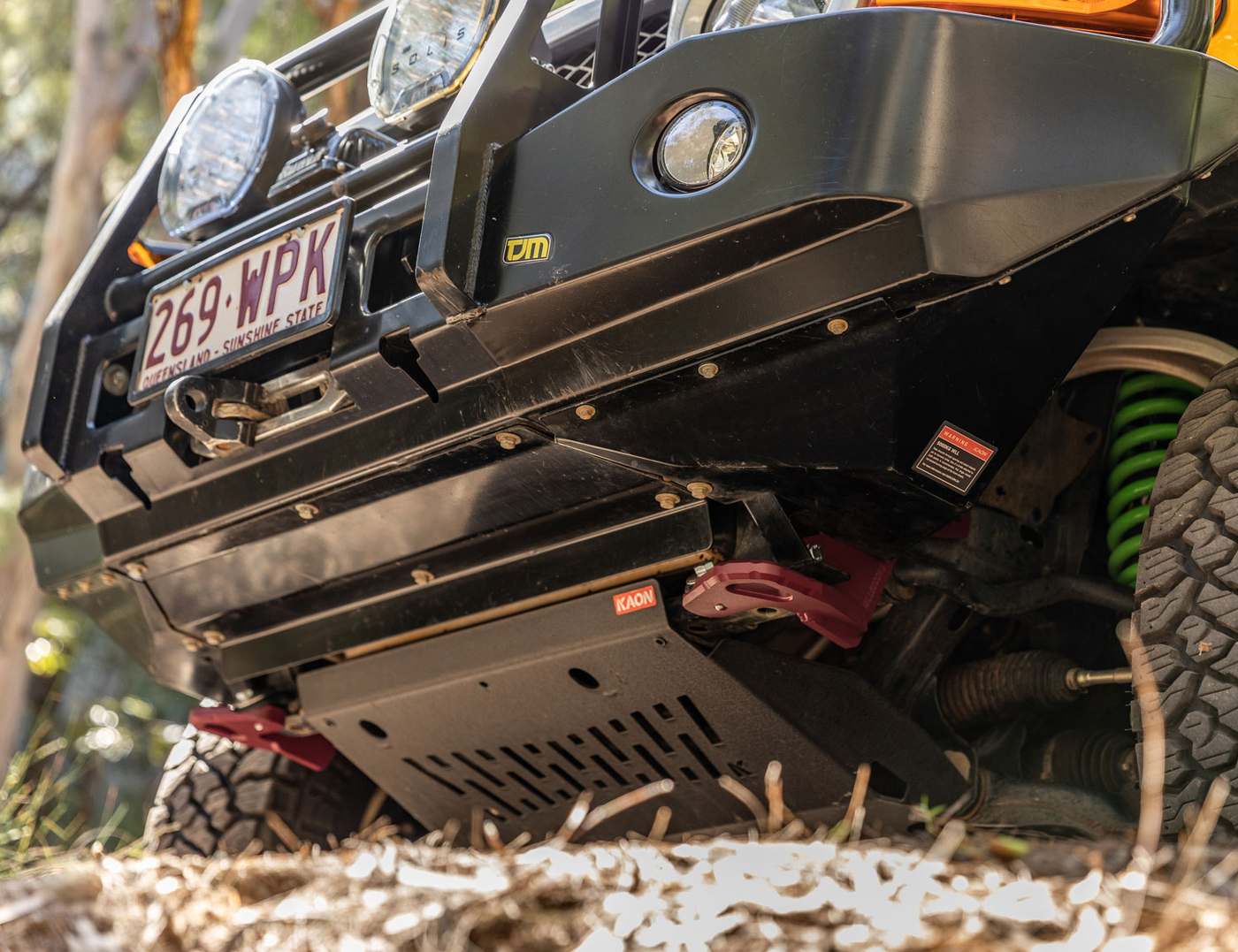

Compatible with the following Prado 150 & FJ Cruiser Bull Bars:

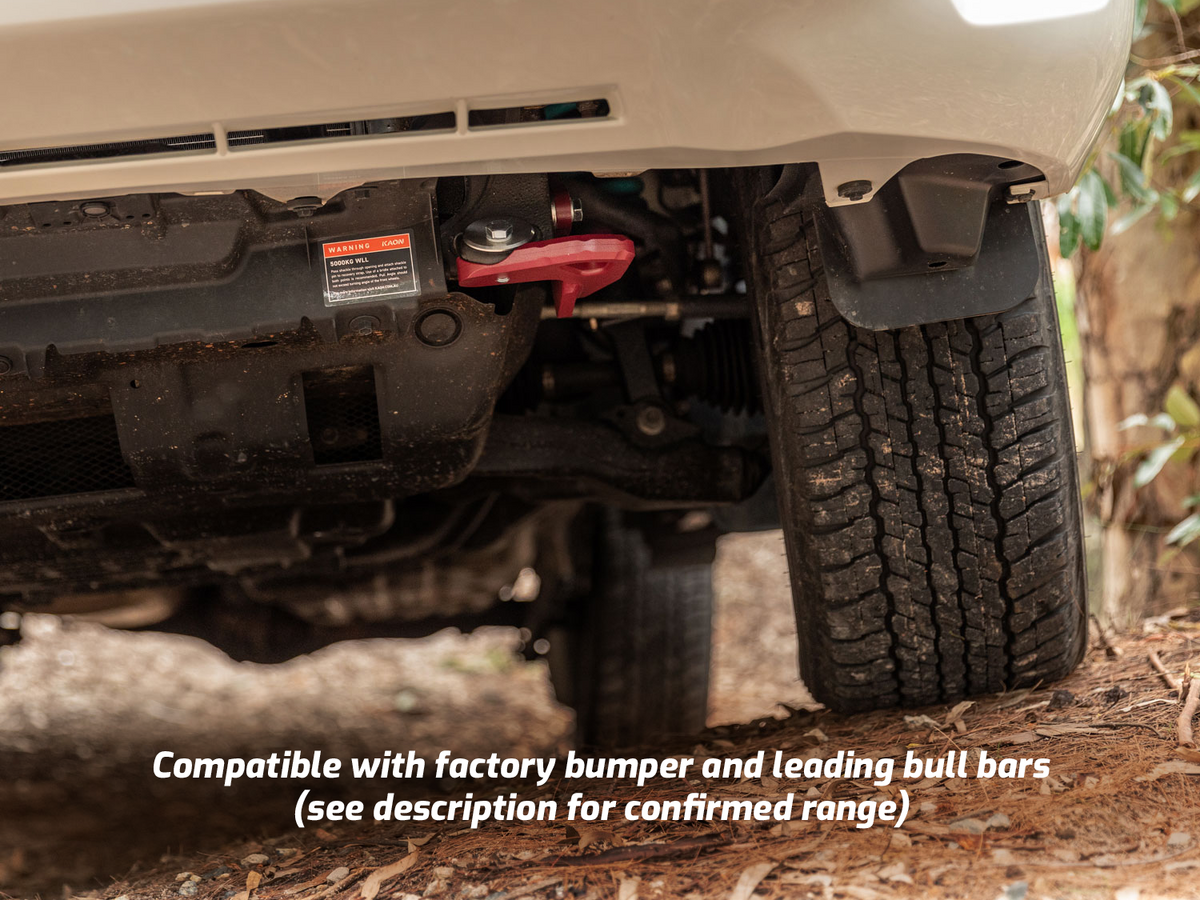

  • No Bar / Factory Bumper
  • Genuine Toyota (Alloy & Commercial)
  • ARB (Note: Trimming of splash guard is required to clear the opening for shackles)
  • TJM
  • XROX
  • AFN (Note: Some trimming of splash guard required)

For the list of incompatible bars, see our product FAQ.



INCLUDES:

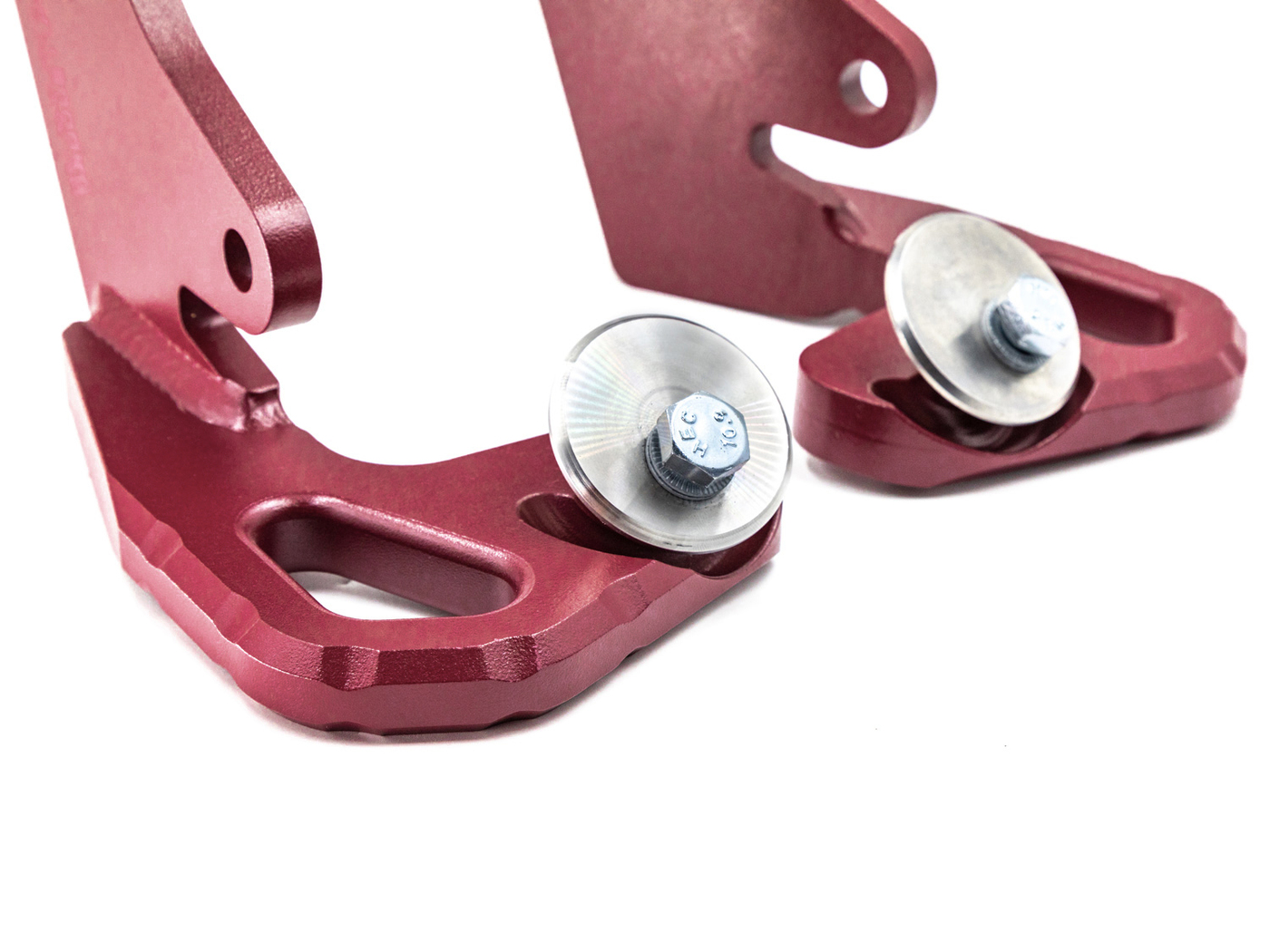

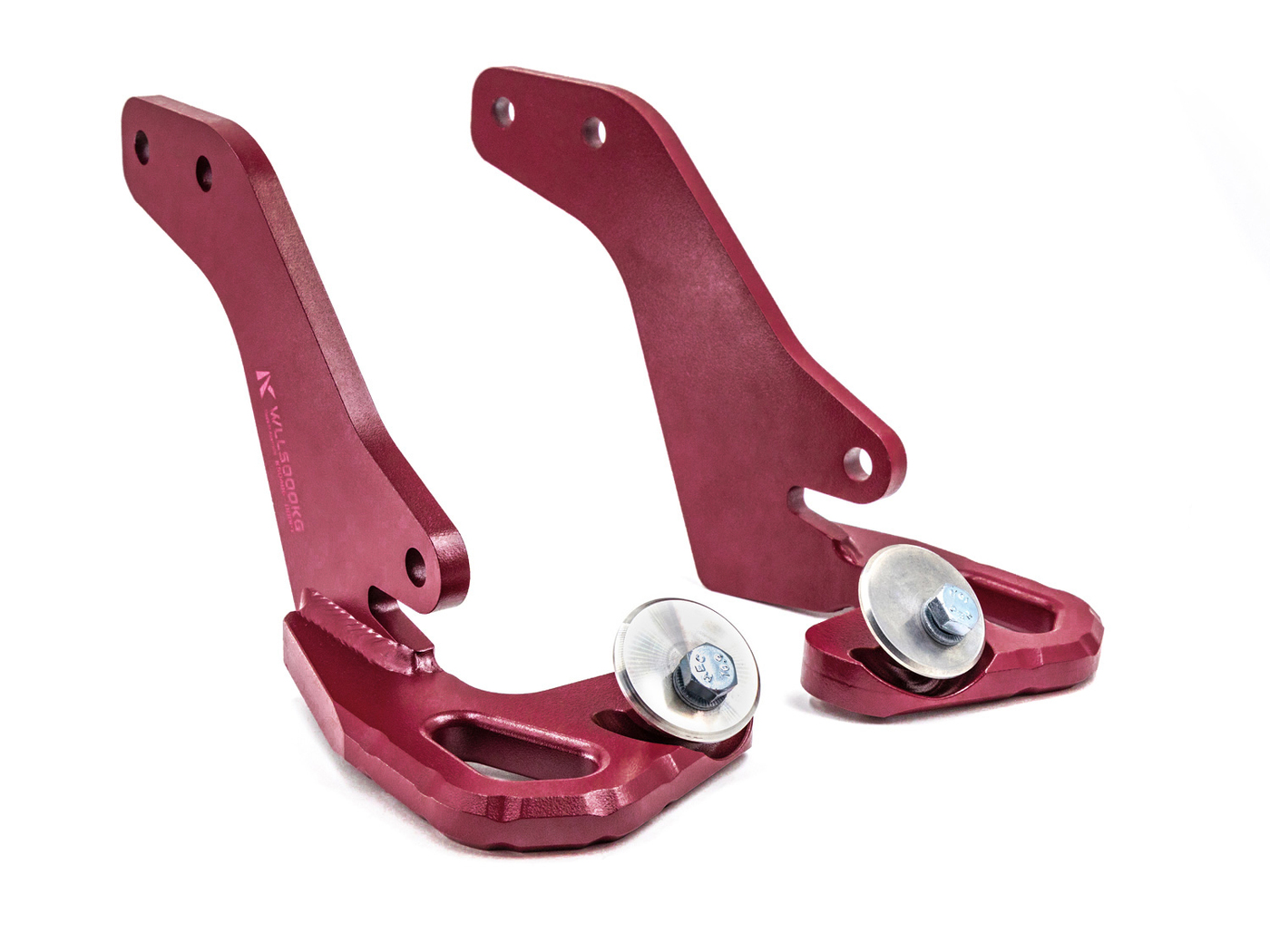

  • 2 x Recovery Tow Points to suit Toyota Prado 150, FJ Cruiser & 4Runner Gen 5 – Select Aramac Grey or Undara Red above.
  • All the hardware you'll need to complete install, including grade 10.9 high-tensile bolts and Nord-Lock washers.



Australian Designed, Made and Owned.



FAQ

How does the recovery point mount to the Prado 150 vs the FJ Cruiser?



Both vehicles use the same lower chassis mounting point, and then each takes up a slightly different hole for top mounting, as pictured below. They then take up a third point, which is unique to our points and gives them a big advantage in recovery situations.

Prado 150 top chassis mounting point
FJ Cruiser top chassis mounting point



Is the Recovery Point compatible with the Prado 120?

We believe the point may be compatible with later Prado 120 models, however we have been unable to confirm this yet.

What Bull Bars is this compatible with?

We have confirmed compatibility with the following Prado 150 & FJ Cruiser Bull Bars:

  • No Bar / Factory Bumper
  • Genuine Toyota (Alloy & Commercial)
  • ARB (Some trimming of splash guard may be required)
  • TJM
  • XROX
  • AFN (Some trimming of splash guard required)



What Bull Bars is this NOT compatible with?

We have confirmed that our Recovery Tow point is NOT compatible with:

  • ECB (East Coast Bullbars)

Let's Answer Your Questions



Both vehicles use the same lower chassis mounting point, and then each takes up a slightly different hole for top mounting, as pictured below. They then take up a third point, which is unique to our points and gives them a big advantage in recovery situations.

Prado 150 top chassis mounting point
FJ Cruiser top chassis mounting point



We believe the point may be compatible with later Prado 120 models, however we have been unable to confirm this yet.

We have confirmed compatibility with the following Prado 150 & FJ Cruiser Bull Bars:

  • No Bar / Factory Bumper
  • Genuine Toyota (Alloy & Commercial)
  • ARB (Some trimming of splash guard may be required)
  • TJM
  • XROX
  • AFN (Some trimming of splash guard required)



We have confirmed that our Recovery Tow point is NOT compatible with:

  • ECB (East Coast Bullbars)
Video Guide
Specifications
SKU KS0549
Brand KAON
Shipping Weight 7.7000kg
Shipping Width 0.160m
Shipping Height 0.170m
Shipping Length 0.400m
Shipping Cubic 0.010880000m3
Unit Of Measure ea
