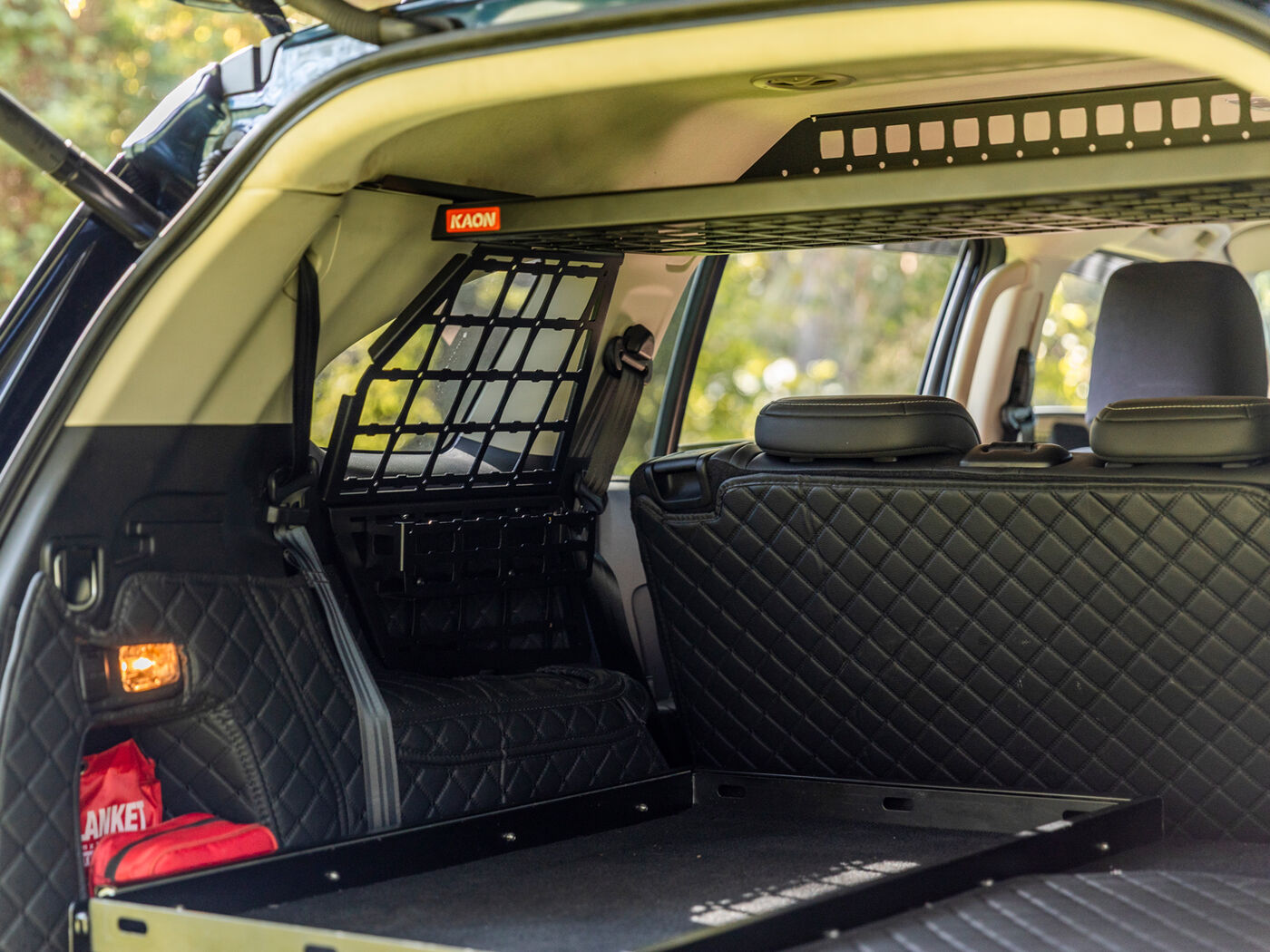

Light Pet Cargo Barrier Rear Roof Shelf and Side Molle Panel Bundle to suit Isuzu MU-X RJ (Gen 2, 2021-)

We know that life outside can get a bit messy – but the interior of your vehicle doesn't have to be. We get it, the gadgets and toys are half the fun, but when space is tight it's tricky to find a spot for everything and keep it there. The Rear Roof Shelf and Side MolLe Panels helps you get organised, with a secure place to store all the smaller bits and pieces, and the Light Cargo Barrier keeps pets and cargo from moving around that doubles as an accessory mounting space. Intuitive DIY installation and removal means your setup can be easily adjusted, whether it’s between trips to suit day-to-day life, or as a growing family with evolving needs.

FEATURES:

  • The ultimate solution – a barrier helps keep gear safely put in the back, while the shelf cleverly uses underutilised space in your vehicle and the molle panels provide the ultimate accessory mounting base.

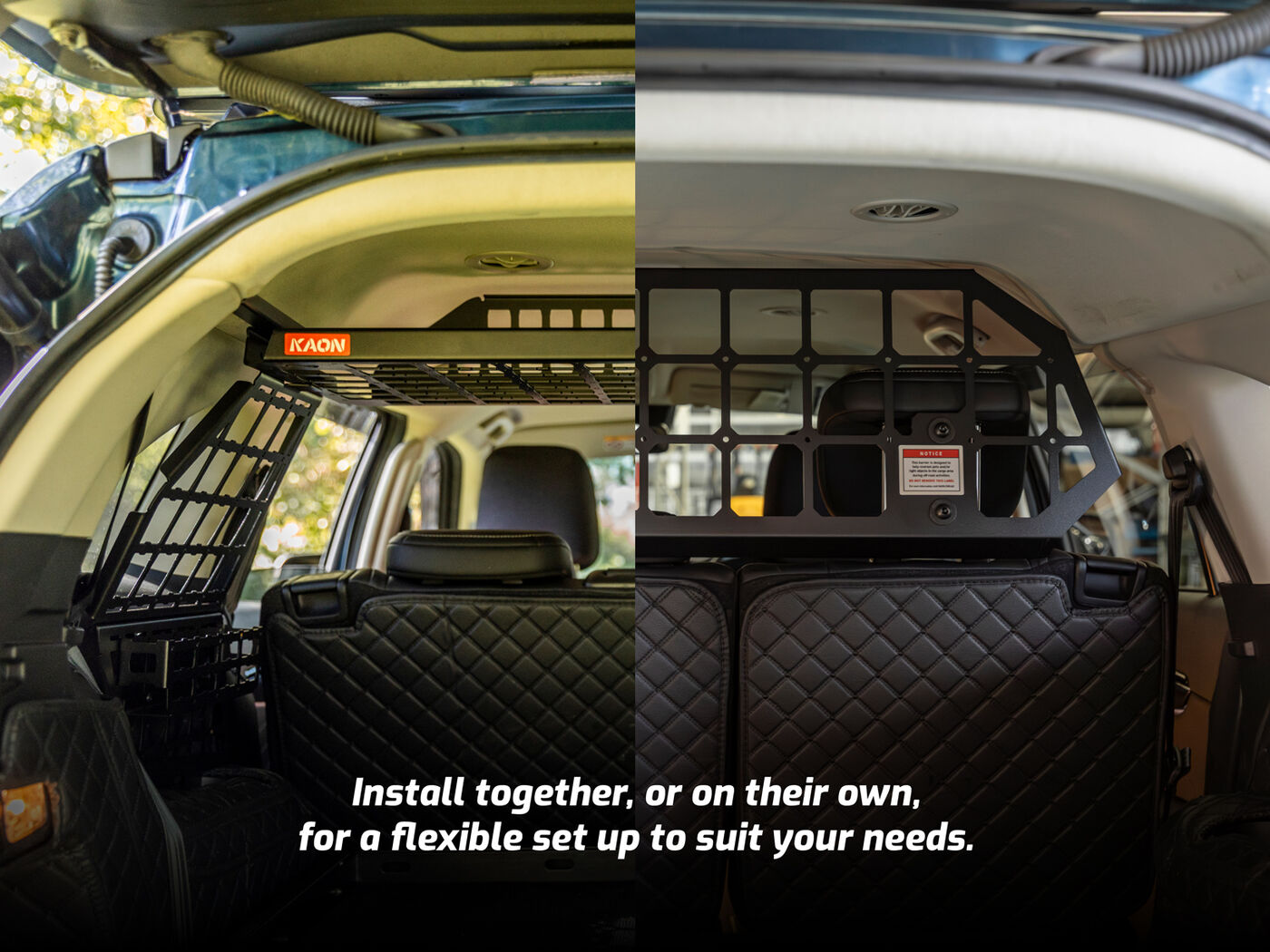

  • Flexible – run both together, or separately. Uninstall the barrier in just 2 minutes with no tools, leaving just the shelf and molles installed.
  • Adjustable – the barrier accommodates varying seat positions, while the shelf has forwards/backwards settings.

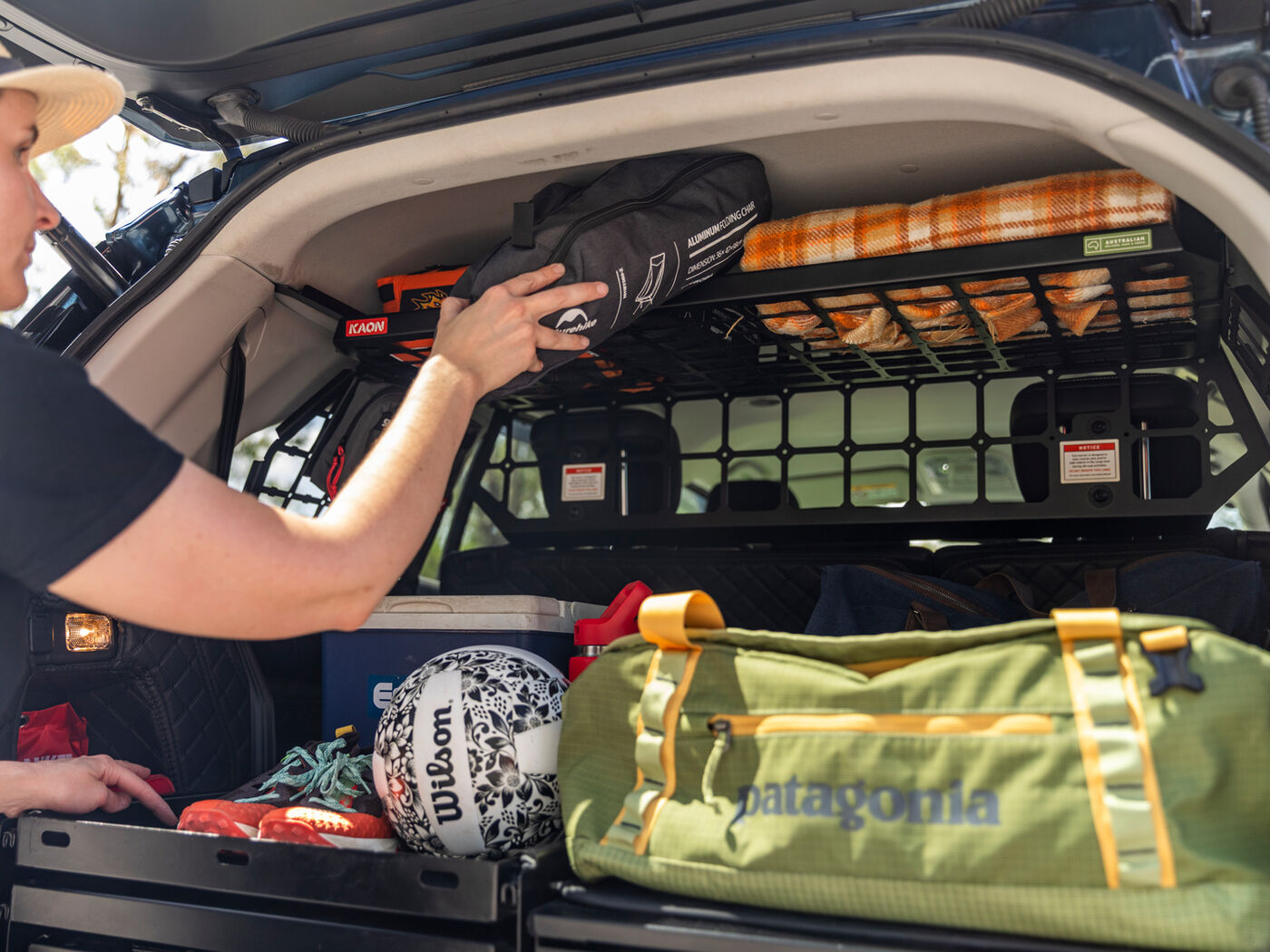

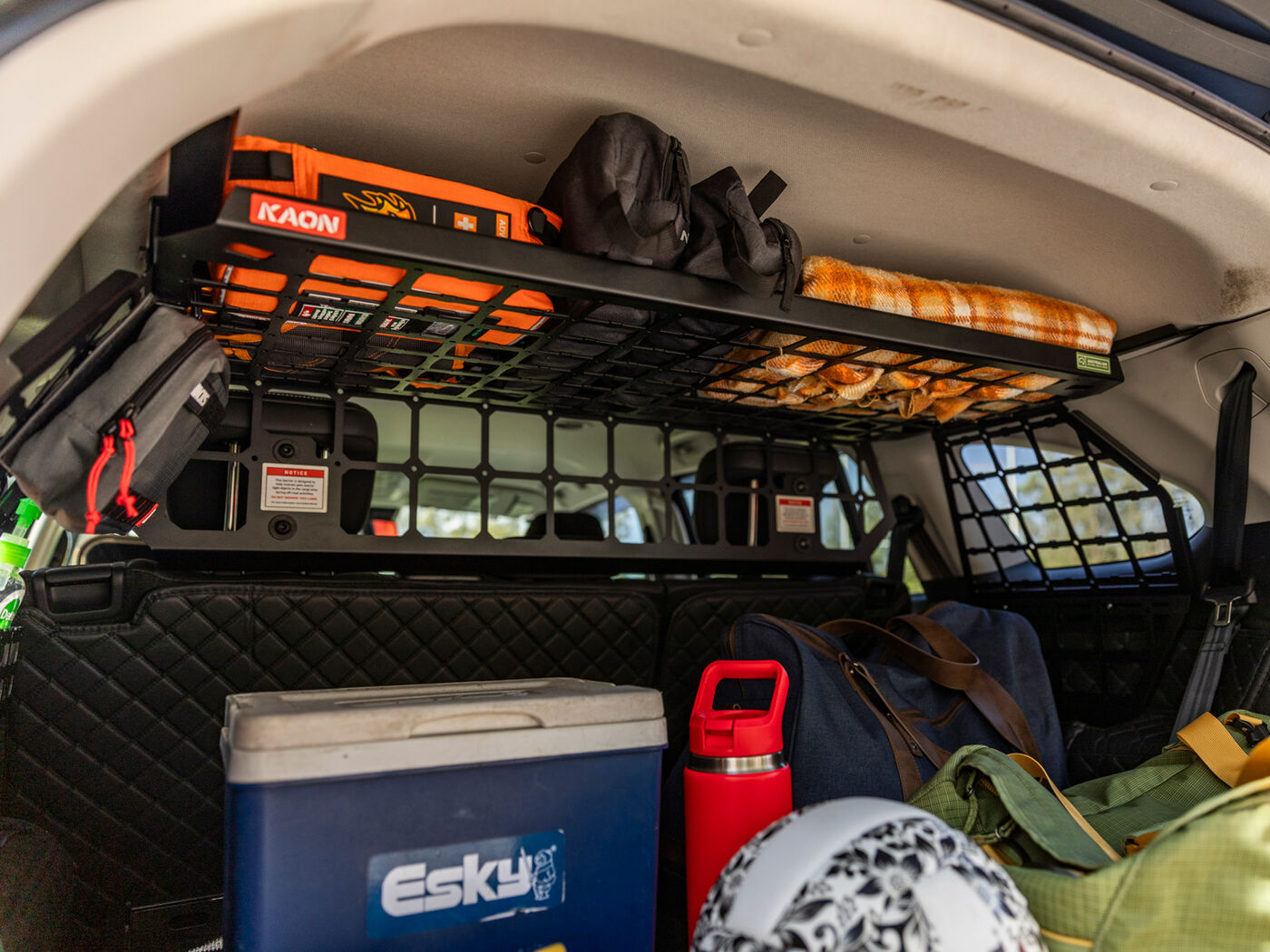

  • Hidden out of the way – the shelf provides storage of lightweight items, without compromising visibility out the rear window.
  • Easy DIY install – secures to captive mounts in the vehicle trim, with no drilling required.

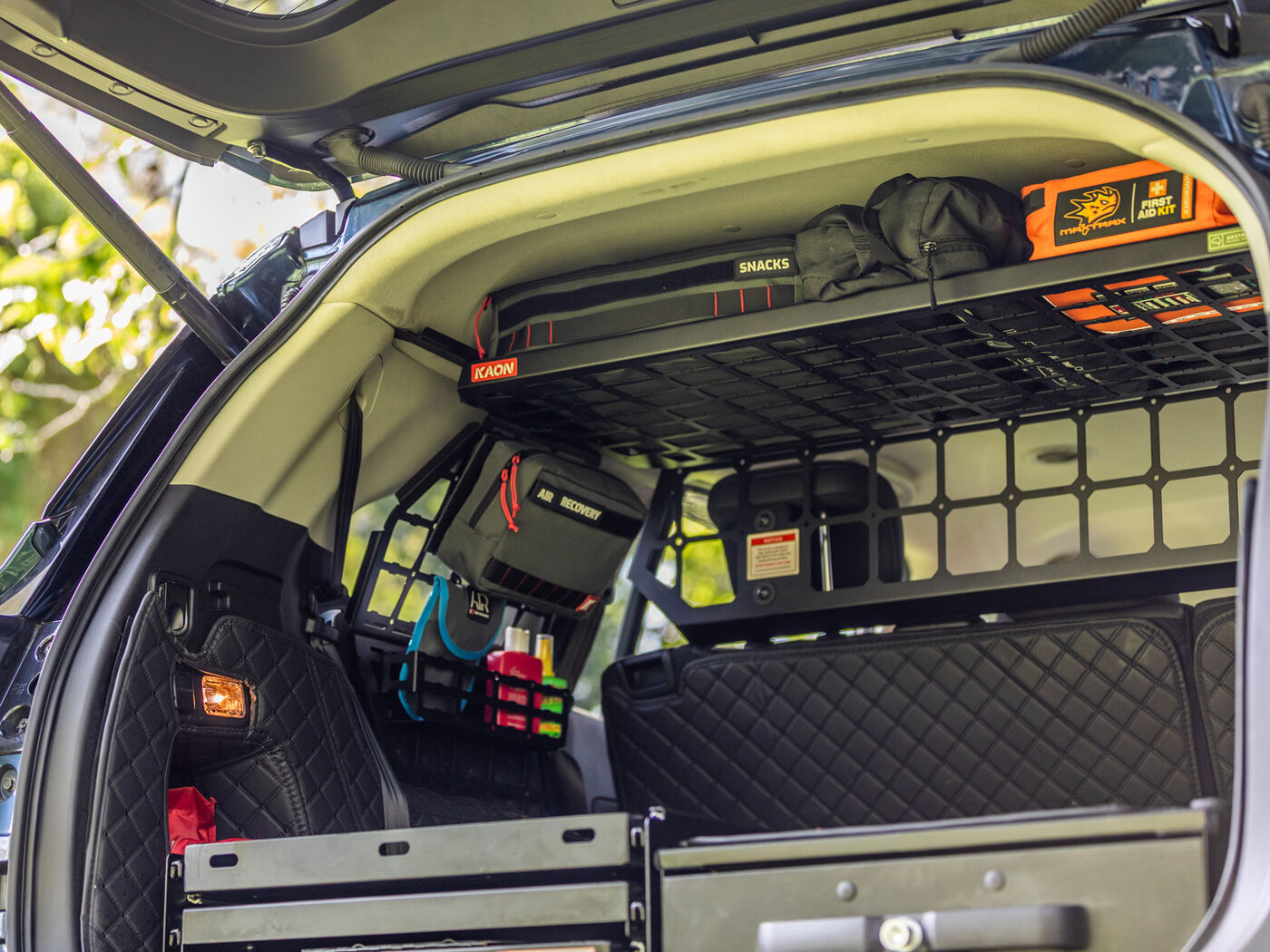

  • Extra support – Side Panels provide necessary additional support for the shelf, and can be used for mounting additional accessories like extinguishers, MOLLE/PALS storage bags or storage pods.
  • Slimline – Side Molle Panels perfectly fit the third-row window for a sleek and stealthy-looking cargo storage solution with a unique mounting system to the MU-X.
  • Customisable foundation – simplifies mounting accessories, with M5 mounting holes and cutouts to suit MOLLE system products, including KAON storage accessories.
  • The shelf includes two bottle openers – so you’ve always got one right next to your fridge setup.
  • All made to last – precision laser cut and pressed steel, powder coated in a textured matt black finish that is hard-wearing and looks great.

INCLUDES:

To suit the Isuzu MU-X RJ (Gen 2, 2021-):

  • 1 x Rear Roof Shelf
  • 2 x Side Molle Panels (1 Pair)

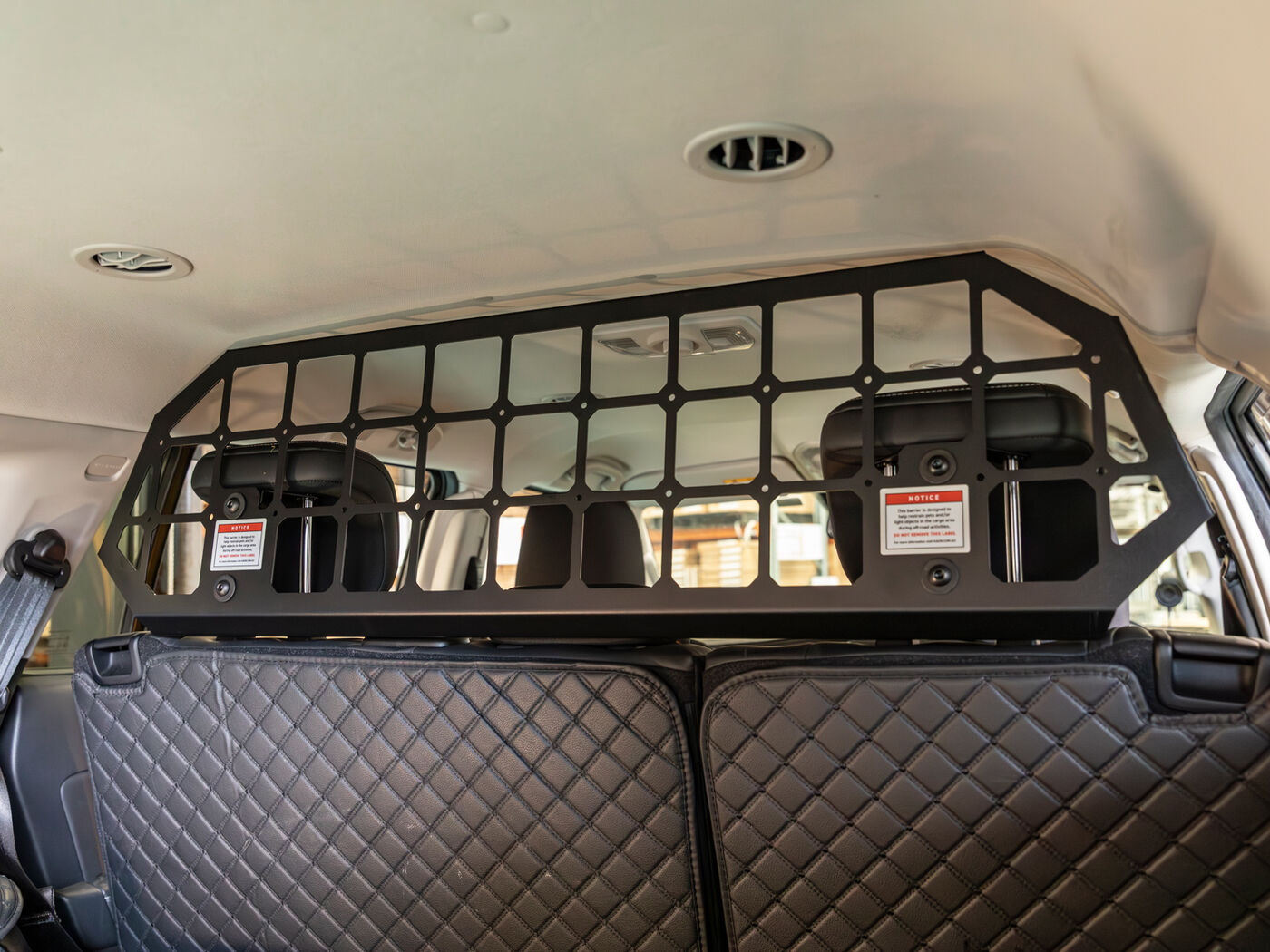

  • 1 x Light Cargo Barrier
  • All hardware required to install are included



ADDITIONAL INFORMATION:

Passengers should not ride in the third-row with this installed. This barrier has not been tested to Australian Standards, and is intended as a pet barrier or for use when off-road.

All of our barriers are designed to be compatible with modern side and curtain-airbag systems, and as such there is clearance around all sides of the barrier to ensure unaffected airbag deployment. In rare instances, very small dogs may be able to get through the gaps provided for this clearance.

For full dimensions, load ratings, and other important details for this product, please refer to the Product FAQ tab.

This product is proudly certified as Australian Made & Owned.

When you choose Australian-Made, you're not only selecting a high-quality product designed for our tough conditions; you're supporting a network of Australian businesses and families. Your choice provides local jobs and training, helping us in our mission to ensure Australia continues to push boundaries in design, innovation and manufacturing.

FAQ

What is the load/weight capacity for the Rear Roof Shelf?

The shelf is rated to 10kg, evenly distributed across the shelf. We recommend it as storage for lightweight and soft cargo. If you need help imagining what that looks like, here's an example:

Can we still use the third-row seats with the Shelf installed?

Any modifications to your vehicle’s third-row area may impact its compliance with safety regulations. We do not recommend carrying passengers in this space after modifications as it presents a dangerous safety hazard.

Additionally, some modifications that affect passenger capacity may require certification (mod-plating) to ensure your vehicle remains compliant with your state or territory’s regulations. We recommend checking with your local transport authority for specific requirements.

How big is the Standalone Shelf?

The shelf measures 1028 x 460mm.

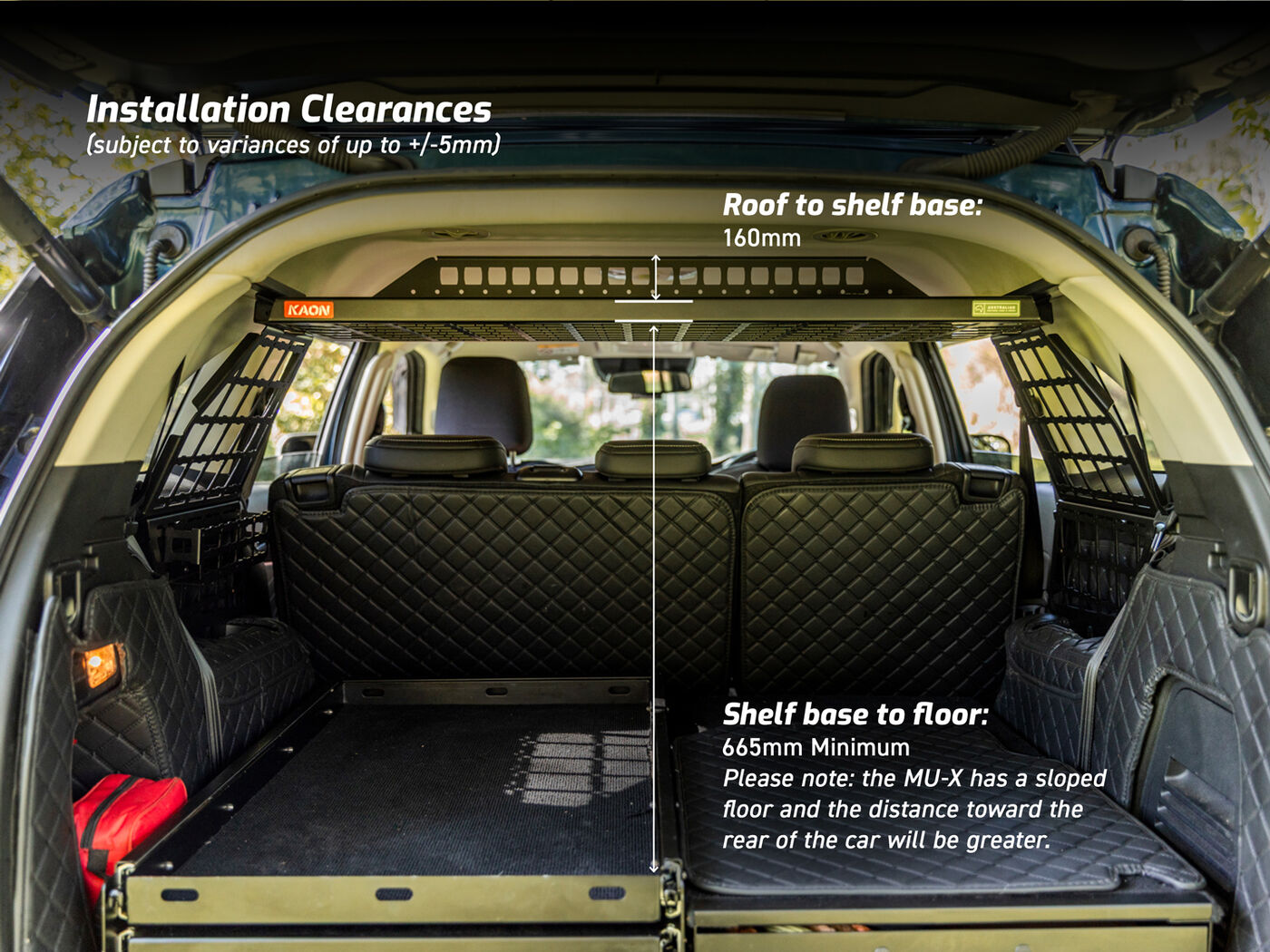

What are the clearances when installed?

Clearances when installed (subject to variances of up to +/-5mm):

Roof to shelf base:
160mm

Shelf base to floor:
665mm at minimum - please note the MU-X has a sloped floor and the distance towards the rear of the vehicle will be greater.

Why does the MU-X Rear Roof Shelf include an additional Side Molle Panels, unlike some other KAON Shelves?

The Isuzu does not include third-row grab handles or captive mounts in the roof, which we traditionally use to secure our Rear Roof Shelves.

Instead, the MU-X shelf is supported by a bracket that attaches to a factory bolt in the D-pillar, along with the support panels which attach to the factory cargo cover mounting point while resting inside the cup holders.

How do the Side Molle Panels work with the curtain airbags?

The Side Molle Panels are designed to allow unobstructed deployment of the factory curtain airbags. That said, we do not recommend any passengers ride in the third-row seats with either of these products installed.

What is required to mount the Side Molle Panels?

The Side Molle Panels for the Isuzu MU-X will require unencumbered access to both the factory cargo cover mounting points and the third-row cupholders. The best thing to do if you are unsure is to watch the video or read the fitting instructions; both are available on the product listing.

Can the rear cargo pull out cover still be used?

No, the side molle panels uses the same holes where the cover sits.

Do your Cargo barriers have vertical / up and down adjustment?

No, the barriers are not able to be adjusted vertically.

Can the barrier be used with baby and child car seats?

Yes, the barrier is compatible with child restraints and baby car seats. We recommended running the straps under the barrier to the ISOFIX points on the rear of the seat, ensuring they do not rub against the barrier.

Can we still use the third-row seats with the Light Cargo Barrier installed?

Any modifications to your vehicle’s third-row area may impact its compliance with safety regulations. We do not recommend carrying passengers in this space after modifications as it presents a dangerous safety hazard.

Additionally, some modifications that affect passenger capacity may require certification (mod-plating) to ensure your vehicle remains compliant with your state or territory’s regulations. We recommend checking with your local transport authority for specific requirements.

What is the load/weight capacity for mounting accessories to the Light Cargo Barrier?

The Light Cargo Barrier is rated to hold 6kg, evenly distributed across the mesh surface.

Let's Answer Your Questions

The shelf is rated to 10kg, evenly distributed across the shelf. We recommend it as storage for lightweight and soft cargo. If you need help imagining what that looks like, here's an example:

Any modifications to your vehicle’s third-row area may impact its compliance with safety regulations. We do not recommend carrying passengers in this space after modifications as it presents a dangerous safety hazard.

Additionally, some modifications that affect passenger capacity may require certification (mod-plating) to ensure your vehicle remains compliant with your state or territory’s regulations. We recommend checking with your local transport authority for specific requirements.

The shelf measures 1028 x 460mm.

Clearances when installed (subject to variances of up to +/-5mm):

Roof to shelf base:
160mm

Shelf base to floor:
665mm at minimum - please note the MU-X has a sloped floor and the distance towards the rear of the vehicle will be greater.

The Isuzu does not include third-row grab handles or captive mounts in the roof, which we traditionally use to secure our Rear Roof Shelves.

Instead, the MU-X shelf is supported by a bracket that attaches to a factory bolt in the D-pillar, along with the support panels which attach to the factory cargo cover mounting point while resting inside the cup holders.

The Side Molle Panels are designed to allow unobstructed deployment of the factory curtain airbags. That said, we do not recommend any passengers ride in the third-row seats with either of these products installed.

The Side Molle Panels for the Isuzu MU-X will require unencumbered access to both the factory cargo cover mounting points and the third-row cupholders. The best thing to do if you are unsure is to watch the video or read the fitting instructions; both are available on the product listing.

No, the side molle panels uses the same holes where the cover sits.

No, the barriers are not able to be adjusted vertically.

Yes, the barrier is compatible with child restraints and baby car seats. We recommended running the straps under the barrier to the ISOFIX points on the rear of the seat, ensuring they do not rub against the barrier.

Any modifications to your vehicle’s third-row area may impact its compliance with safety regulations. We do not recommend carrying passengers in this space after modifications as it presents a dangerous safety hazard.

Additionally, some modifications that affect passenger capacity may require certification (mod-plating) to ensure your vehicle remains compliant with your state or territory’s regulations. We recommend checking with your local transport authority for specific requirements.

The Light Cargo Barrier is rated to hold 6kg, evenly distributed across the mesh surface.

Video Guide
Specifications
SKU KS1056
Brand KAON
Shipping Weight 18.0000kg
Shipping Width 0.490m
Shipping Height 0.235m
Shipping Length 1.180m
Shipping Cubic 0.135877000m3
