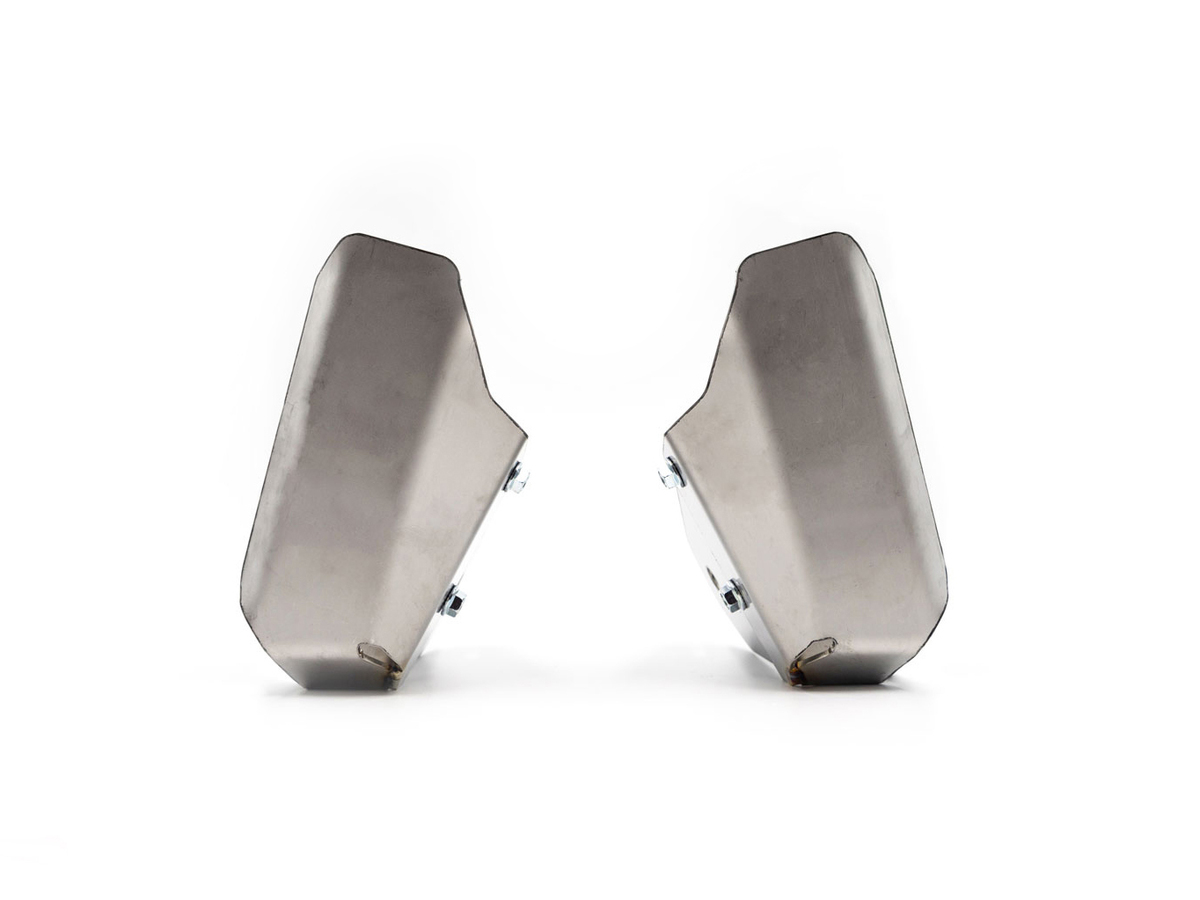

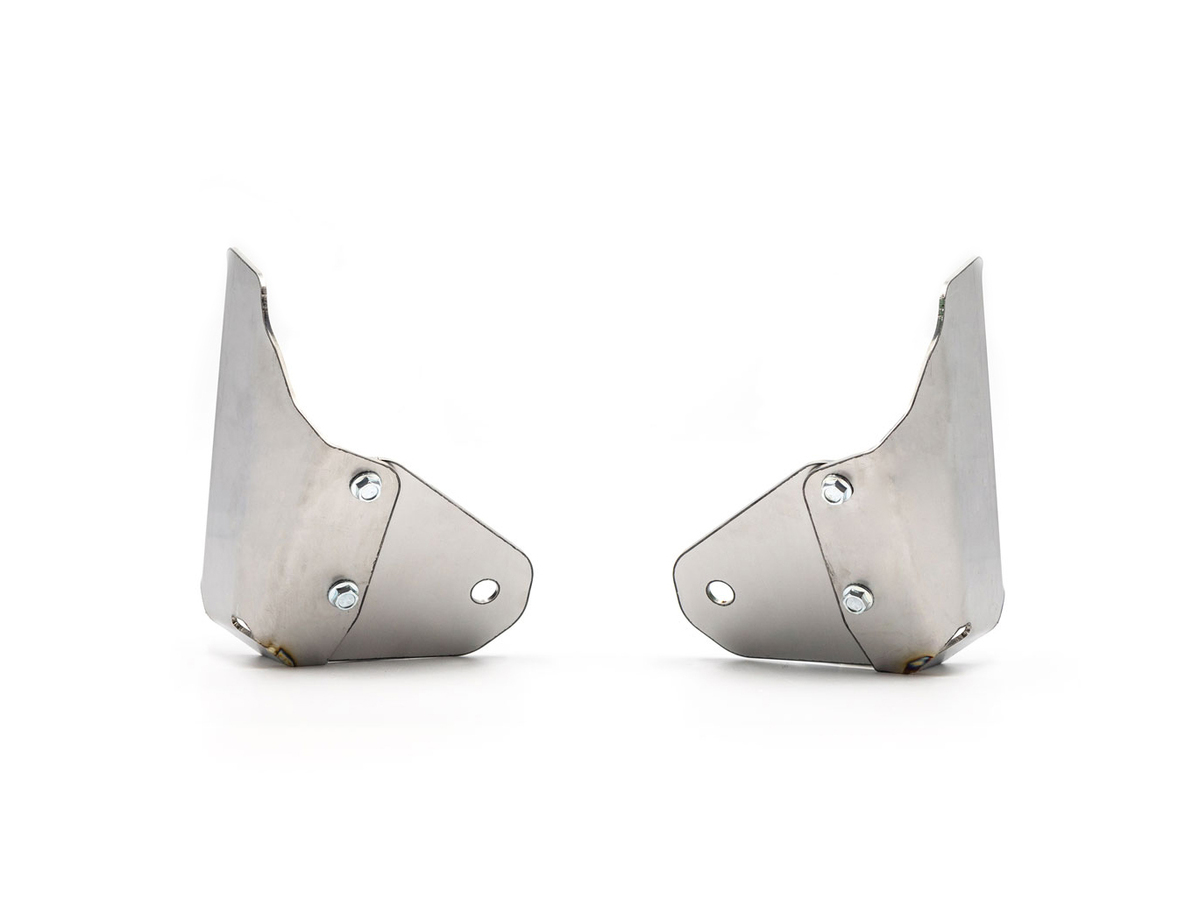

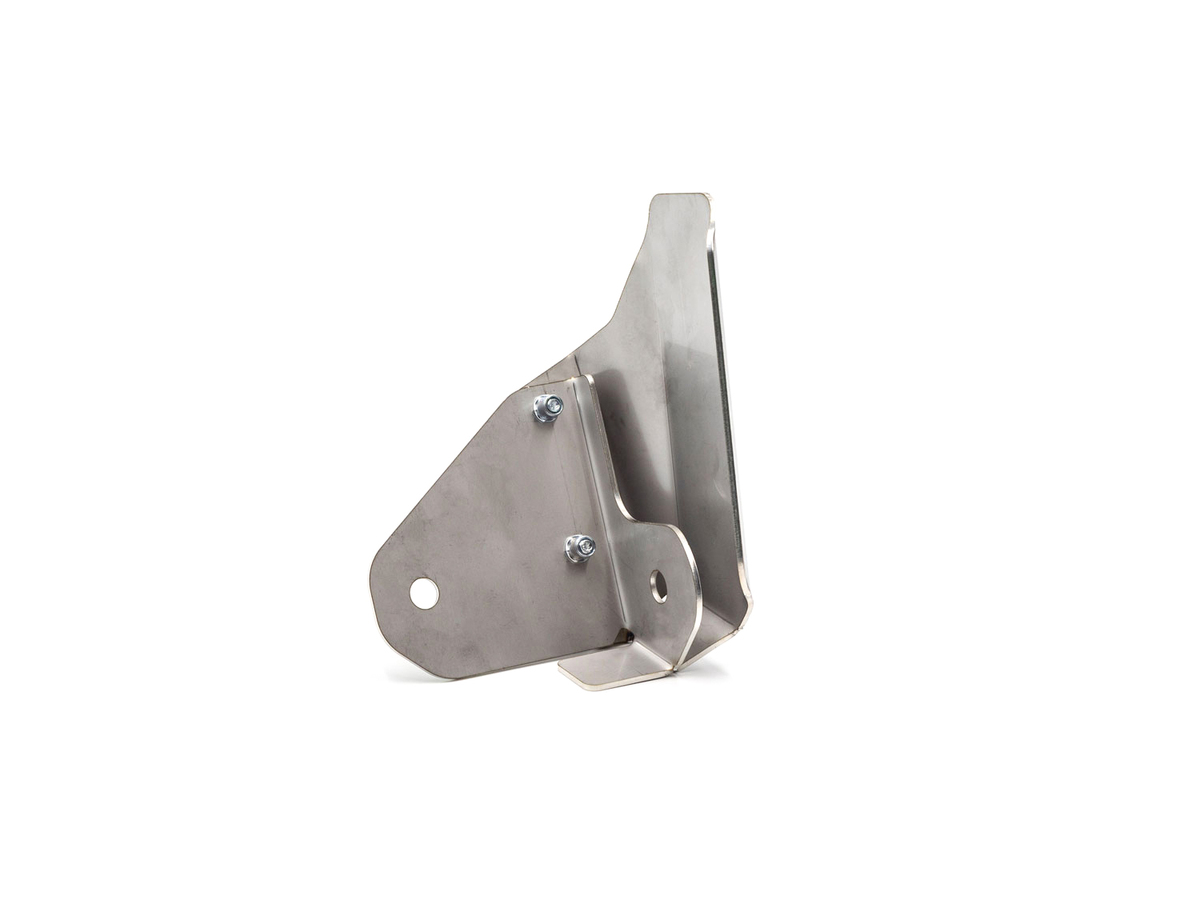

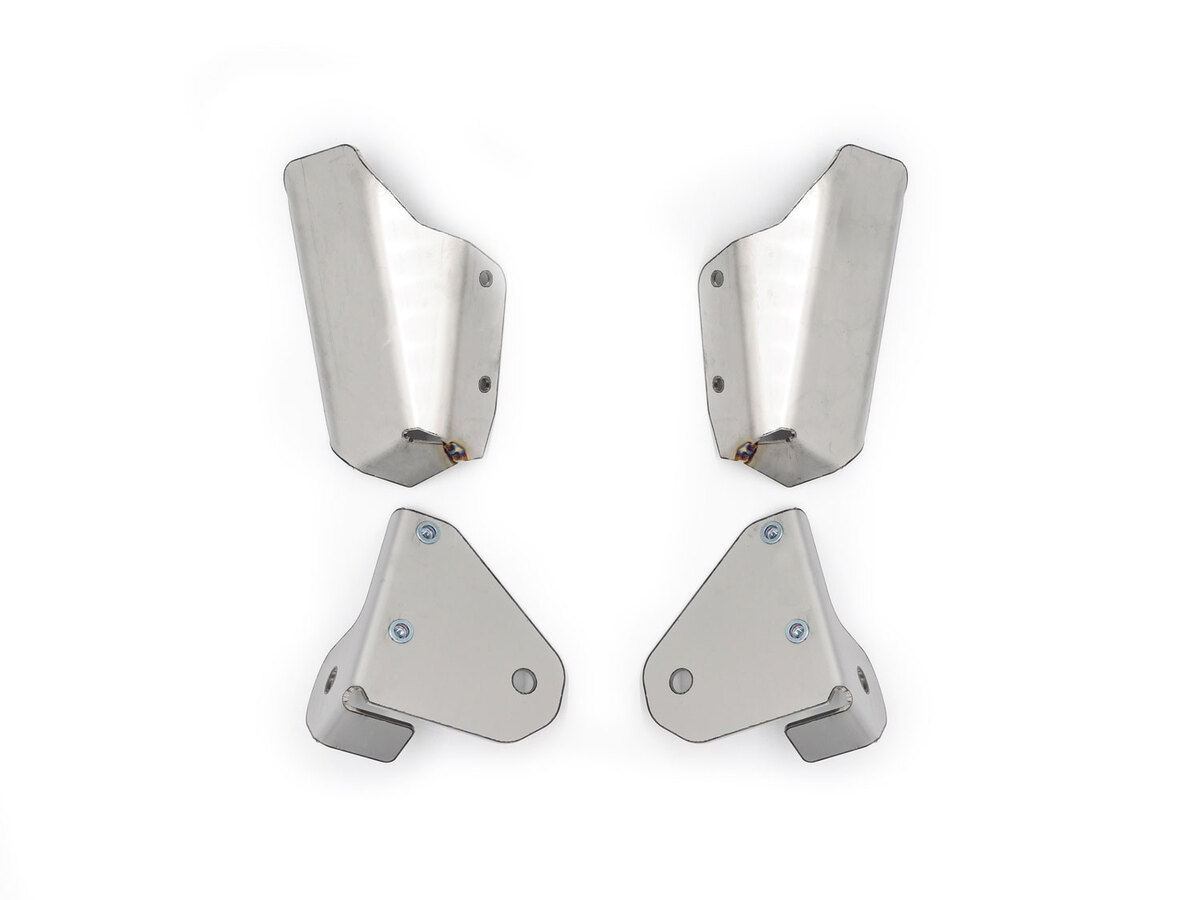

Stone guards to protect your rear shock absorbers.
To suit Prado 120 series and are designed to fit the largest of shocks including the Ironman Foam Cell Pro shocks.
Will suit shock absorbers with upto 72mm outer diameter.
Easy to install. Protects the lower shock bolt and the shock body
2.5mm Stainless steel because there is no paint known that will last very long in this application.
Price is for one PAIR of guards.
* Guards are designed to fit with standard offset rims. There maybe clearance issues with aftermarket rims with offsets that would move the rim closer to the shock absorbers. *
1. Remove the lower shock mounting bolt.
2. Secure the guard mount using the shock bolt that was removed in Step 1 and the M10 bolt and nut block.
3. Before tightening, adjust the position of the mount so that the edge of the mount is parallel with the shock absorber.
4. Attach the guard tot he mount using 2 x M6 bolts.
