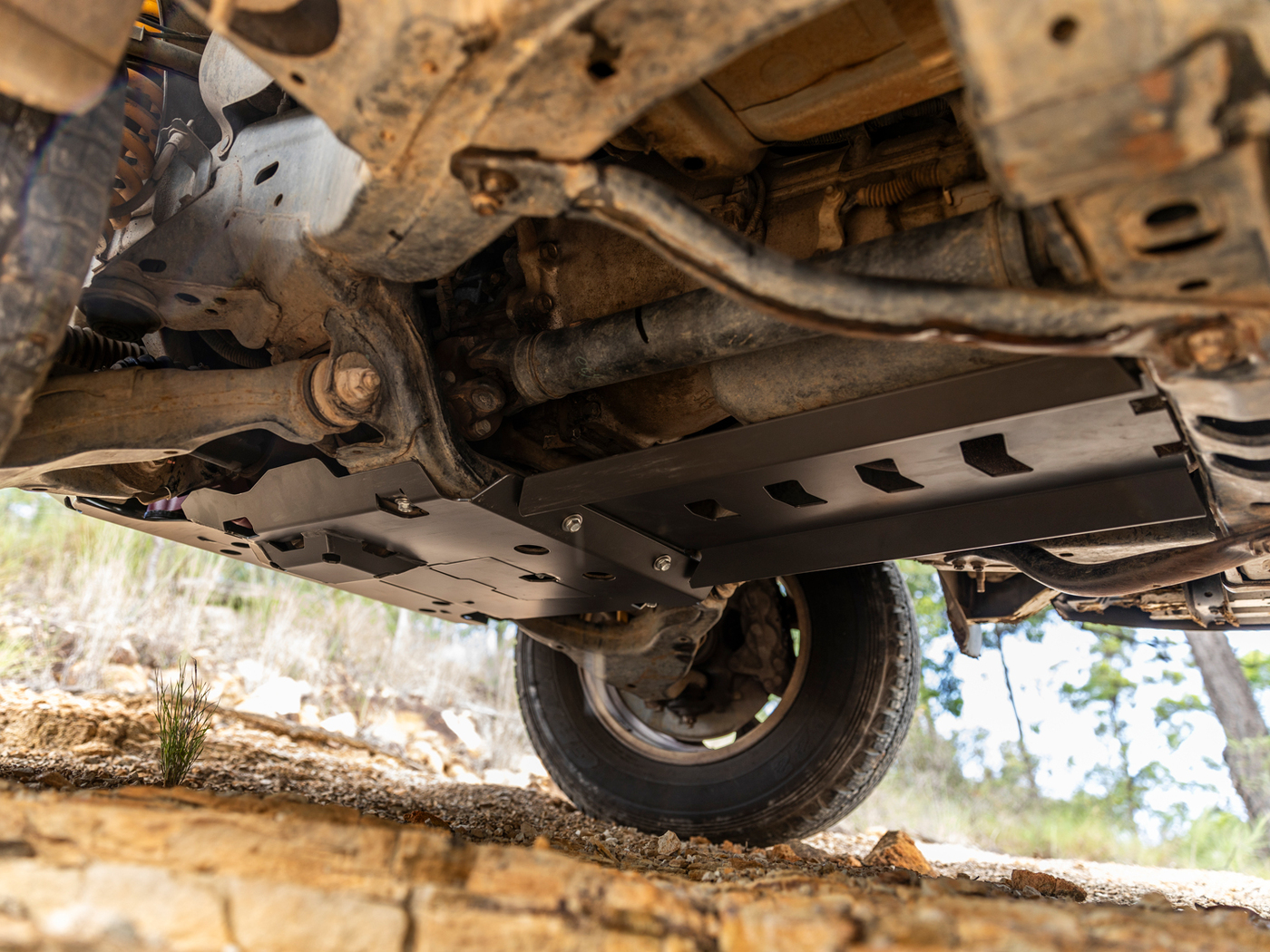

High Performance X700 UVP to suit Toyota Prado 150 & FJ Cruiser, Lexus GX 460
Our High Performance X700™ Under Vehicle Protection is 25% lighter, and yet 60% stronger than conventional UVP plates.
With tight GVM margins for modern vehicles – take peace of mind knowing that your UVP is stronger, protecting the most vulnerable parts of your 4x4 against damage, without excess weight.
TECH SPECS:

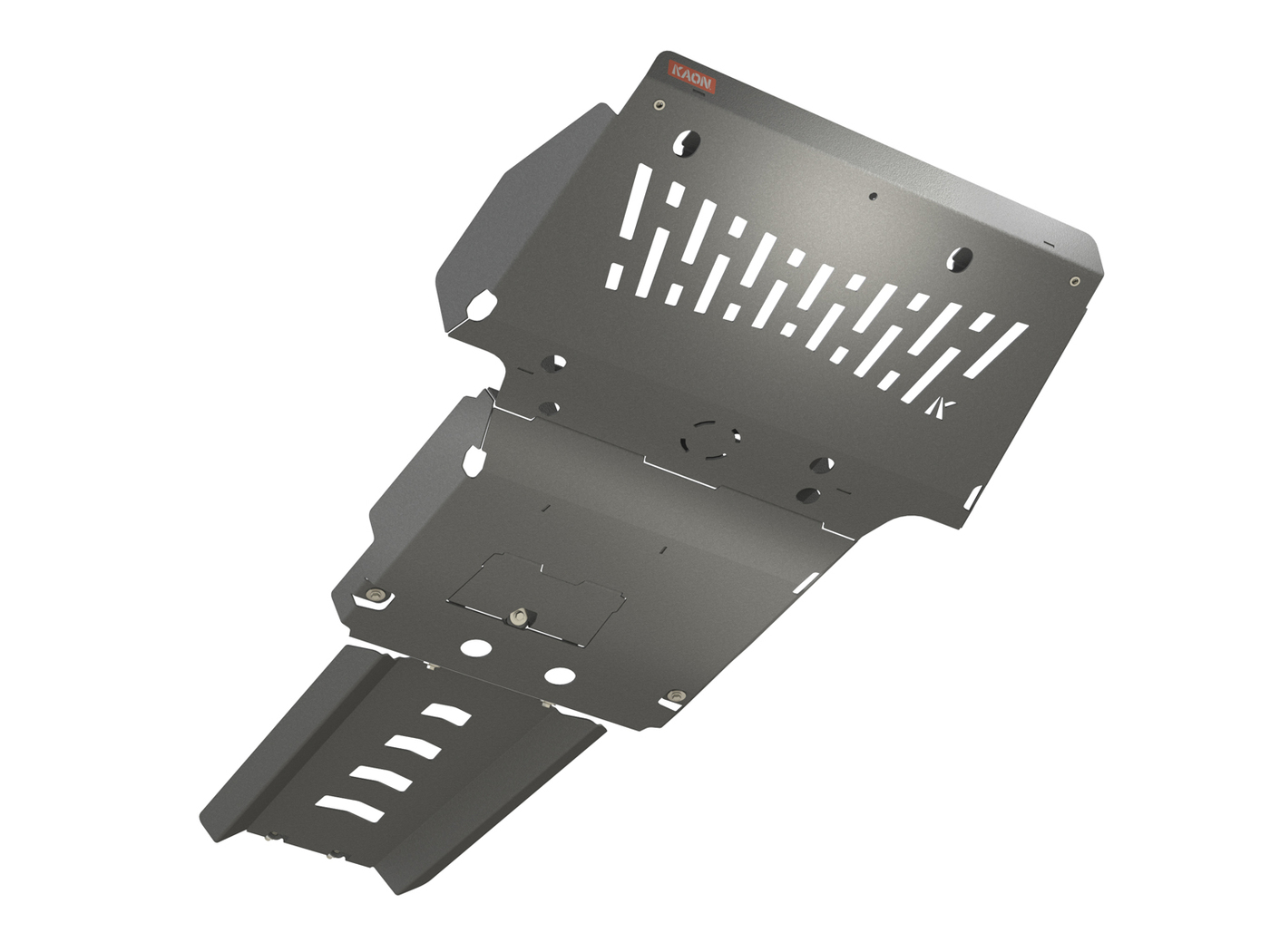

- Three-piece X700™ UVP weighs a total of 23kg, just 10kg heavier than 2pce OEM guards, and up to 9kg lighter than 4mm steel UVP.
- With a high yield strength of 700 MPa, X700™ UVP outperforms common alternatives, such as 4mm Carbon Steel, 6mm Aluminium and 3/4mm Stainless Steel in permanent deformation tests.
For the full details, see our video, below.
FEATURES:
- X700™ UVP can take higher stresses, with less material weight.
- Designed using 3D scanning for a better fit, with folds and flanges for added strength
- Designed for maximum clearance and optimum approach/departure angles.

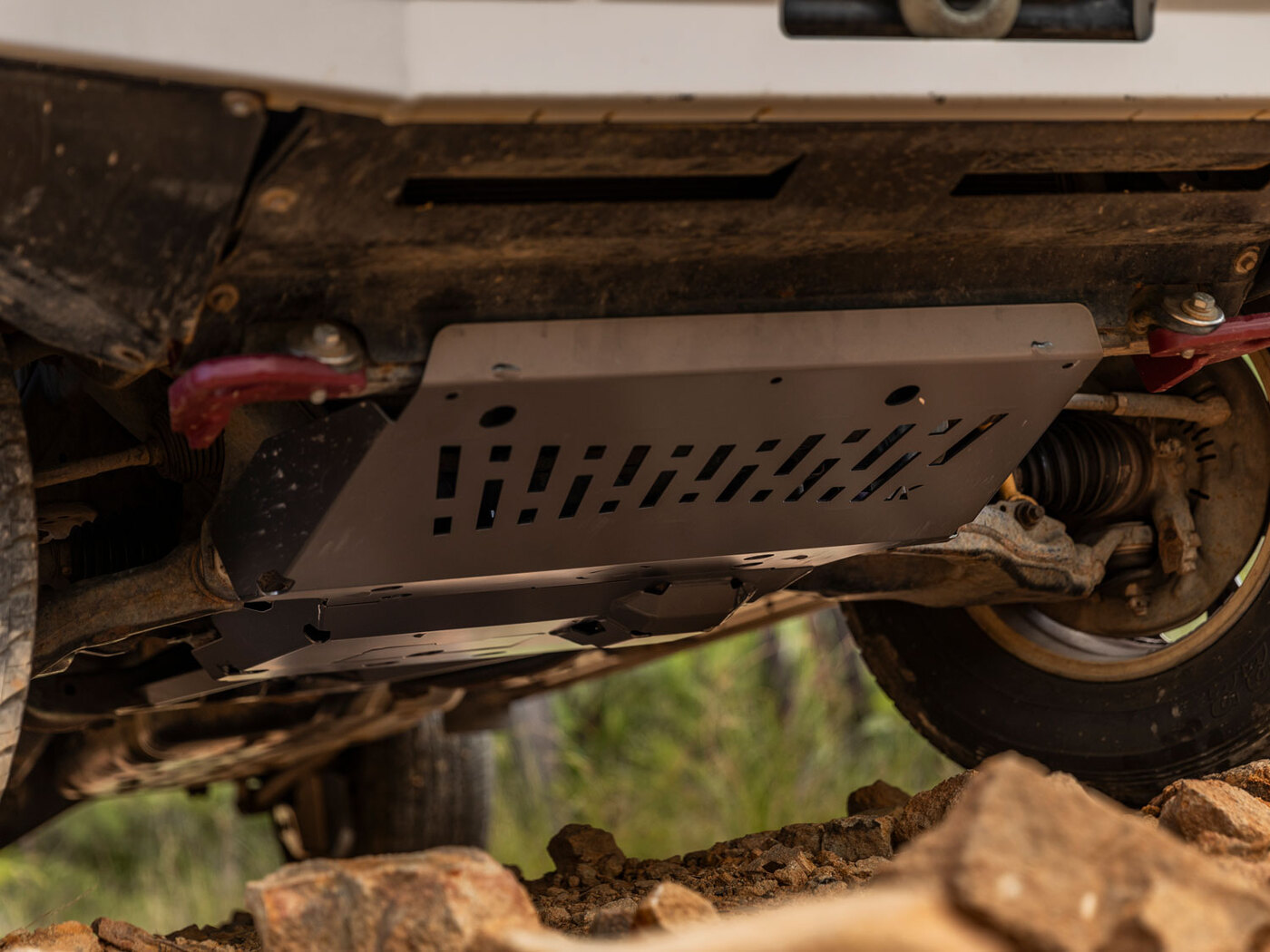

- The sump guard includes a reinforced drain hatch for easy servicing and maintenance.
- Recessed mounting bolts and smooth transitions allow you to slide over obstacles found out on the tracks with ease.
- Strategically placed generous vents and drainage holes to keep everything running cool.
- Individual options specifically designed to suit unique vehicle configurations, ensuring maximum clearance and a made-to-fit appearance.
- Powder coated using a three-step process for increased durability, in an attractive Metallic Asteroid Grey.
COMPATIBILITY:
Please ensure to select guards to suit your vehicle's requirements – such as Diff Drop, KDSS Suspension, and Transmission.
For more information on product options, see the FAQ.
INCLUDES:
Select either Front & Sump / Front, Sump & Trans configuration:
1 x High Performance X700™ UVP to suit Toyota Prado 150 & FJ Cruiser
This product is proudly certified as Australian Made & Owned.
When you choose Australian-Made, you're not only selecting a high-quality product designed for our tough conditions; you're supporting a network of Australian businesses and families. Your choice provides local jobs and training, helping us in our mission to ensure Australia continues to push boundaries in design, innovation and manufacturing.
What is the difference between the guards designed for a Diff Drop and No Diff Drop?
The Diff Drop guards are designed to accommodate the lowered diff housing while still maximising clearance, as opposed to installing standard plates with spacers, which some manufacturers opt for.
If you have no Diff Drop or a spacer style (less than 25mm) Diff Drop installed, select 'No Diff Drop'.
If you have a KAON Arm-style Diff Drop (KS0721) installed, select ' KAON Arm Style Diff Drop'. Not compatible with other brands of Arm-Style Diff Drop.
Does the X700 UVP to suit the Prado 150 fit the Prado 120?
No, the X700 UVP is not compatible with the Prado 120 or Lexus GX 470.
What Transmission Guard should I select for the V8 Lexus GX460?
The V6 Prado uses a A750 transmassion while the v8 Lexus uses an A760 trans. Dimensionally they should be the same and our V6 trans will work on the V8.
What is the clearance of the X700 UVP when compared to the factory guards?
X700 UVP has 4mm more clearance than factory at the lowest point (it's hard up against the cross member, so it's as high as it'll go) but the front piece has 35mm more clearance at some points thanks to it's approach angle of 19°, vs factory 42°. For vehicles with a Diff Drop, the Cradle component of the guard sits down 25mm.
The Diff Drop guards are designed to accommodate the lowered diff housing while still maximising clearance, as opposed to installing standard plates with spacers, which some manufacturers opt for.
If you have no Diff Drop or a spacer style (less than 25mm) Diff Drop installed, select 'No Diff Drop'.
If you have a KAON Arm-style Diff Drop (KS0721) installed, select ' KAON Arm Style Diff Drop'. Not compatible with other brands of Arm-Style Diff Drop.
No, the X700 UVP is not compatible with the Prado 120 or Lexus GX 470.
The V6 Prado uses a A750 transmassion while the v8 Lexus uses an A760 trans. Dimensionally they should be the same and our V6 trans will work on the V8.
X700 UVP has 4mm more clearance than factory at the lowest point (it's hard up against the cross member, so it's as high as it'll go) but the front piece has 35mm more clearance at some points thanks to it's approach angle of 19°, vs factory 42°. For vehicles with a Diff Drop, the Cradle component of the guard sits down 25mm.
| SKU | KS0723 |
| Brand | KAON |
| Shipping Weight | 23.0000kg |
| Shipping Width | 0.470m |
| Shipping Height | 0.260m |
| Shipping Length | 0.770m |
| Shipping Cubic | 0.094094000m3 |
