Front Arm Style Diff Drop Kit to suit Toyota HiLux N80 Revo, N70 Vigo & Fortuner

Installed a lift in your HiLux, but are concerned about the changes to your front axle and CV joint angles?

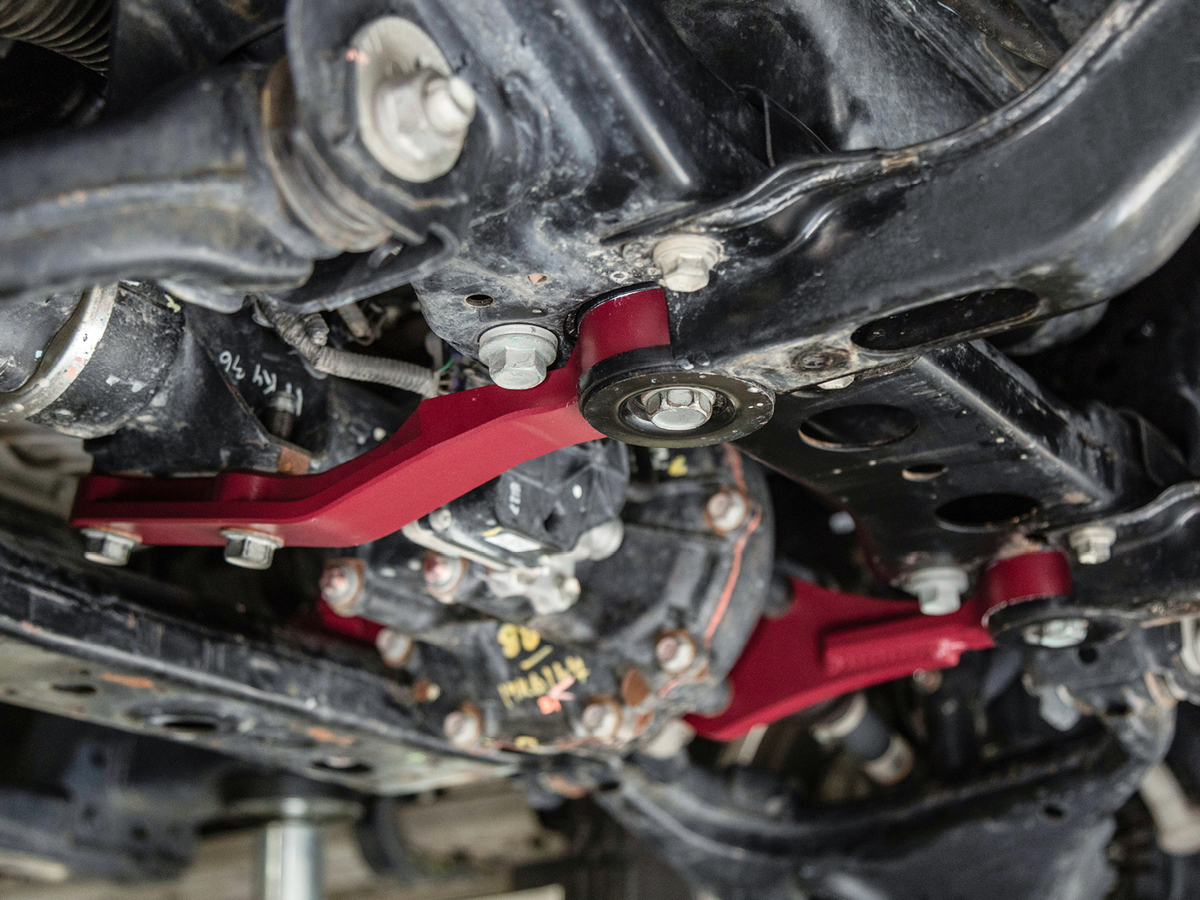

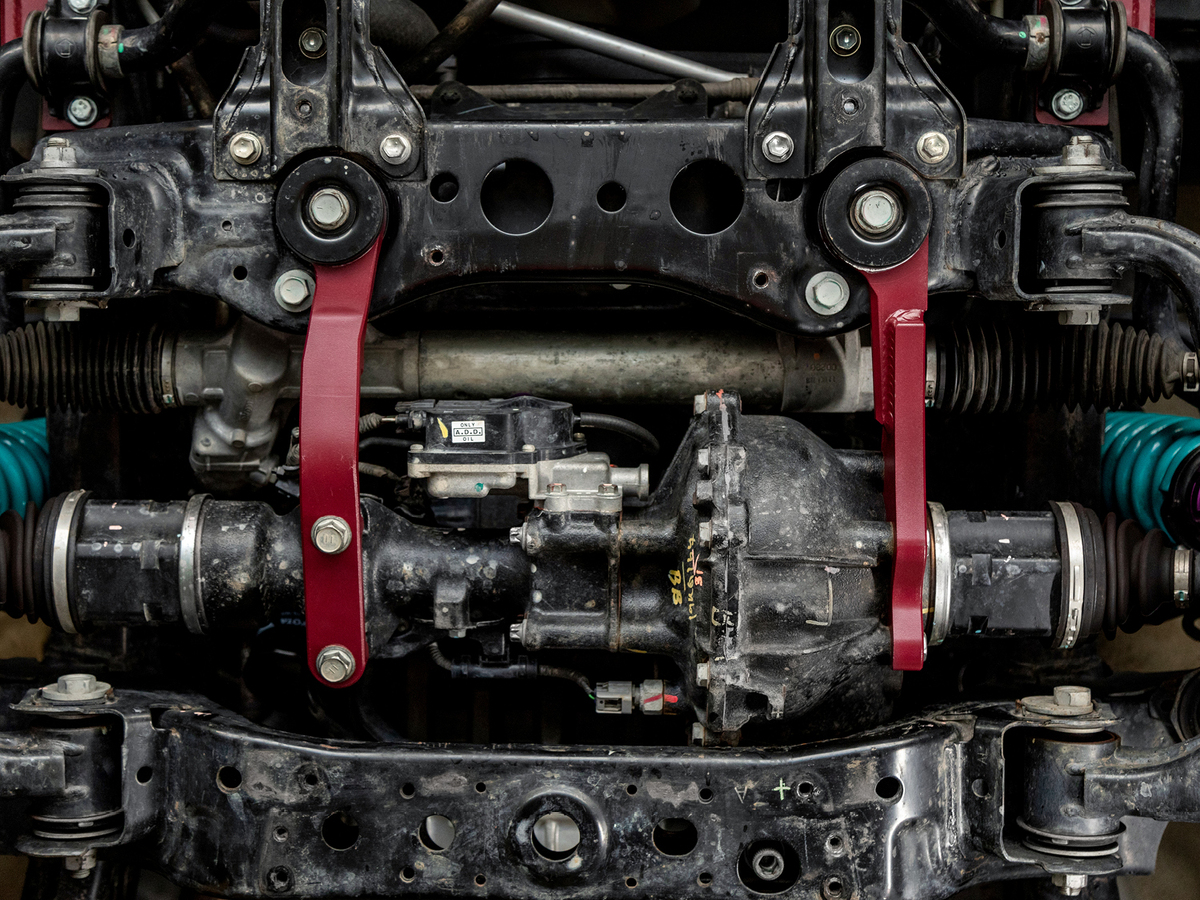

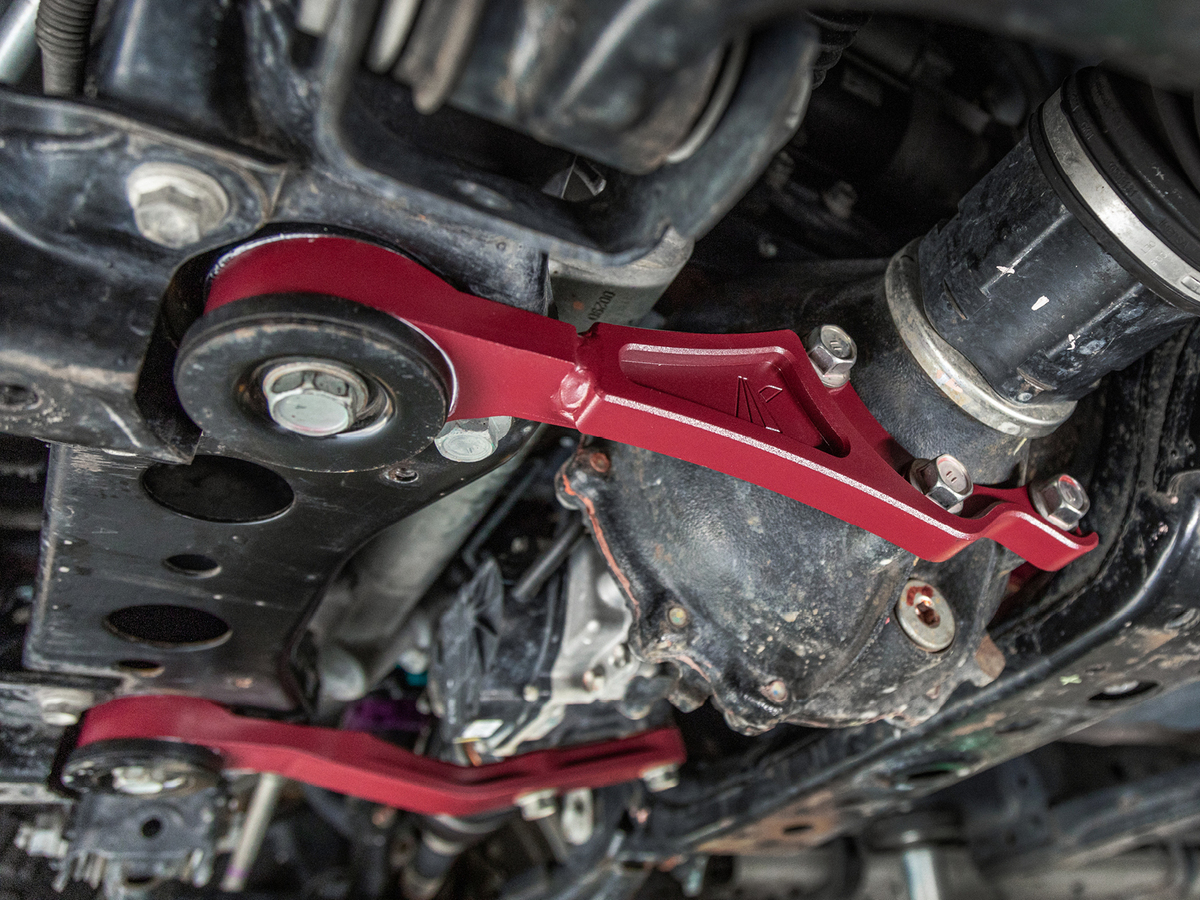

Our Diff Drop kit lowers your front diff by 30mm, reducing the angle stresses placed on your CV joints, and ultimately helping to avoid unnecessary wear and premature failure.



  • Lowers the front diff by 30mm – far greater than available spacer-style drops.

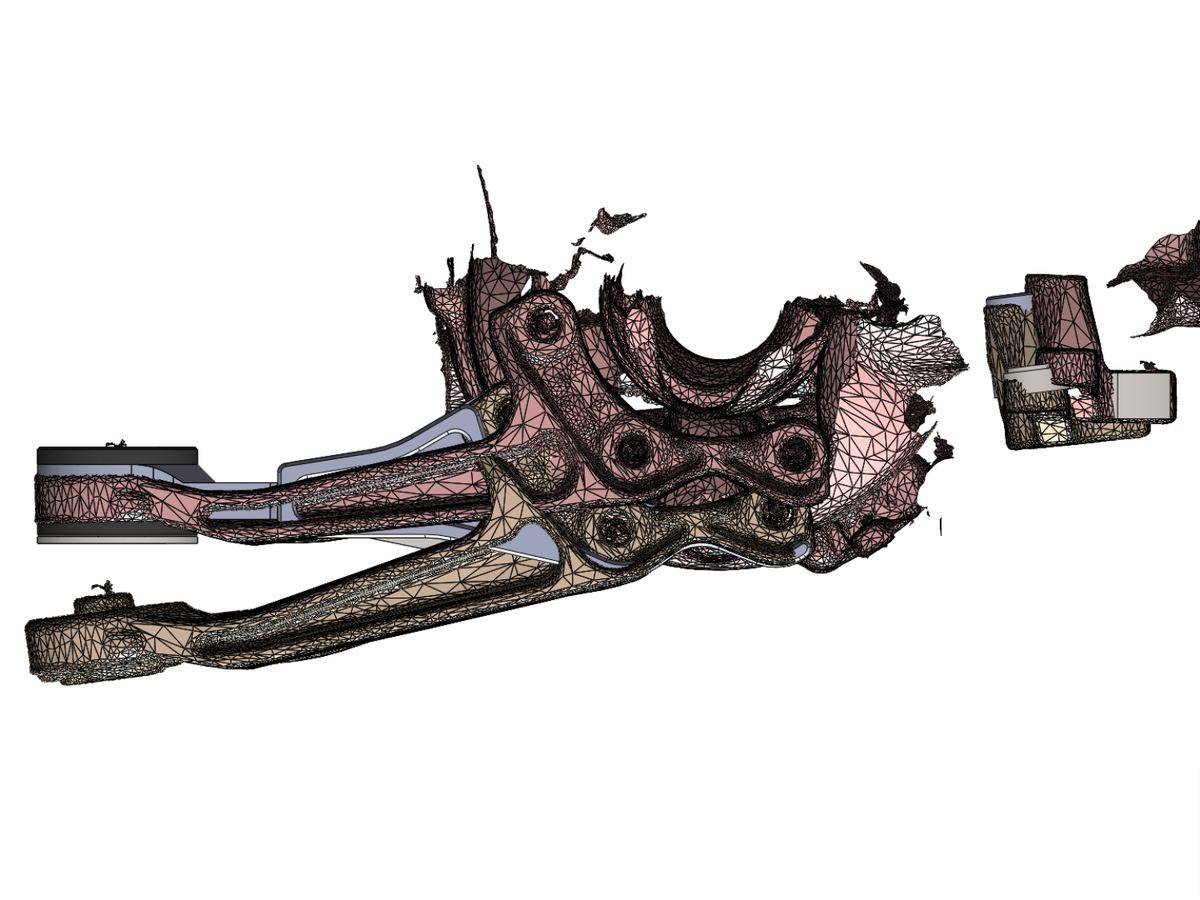

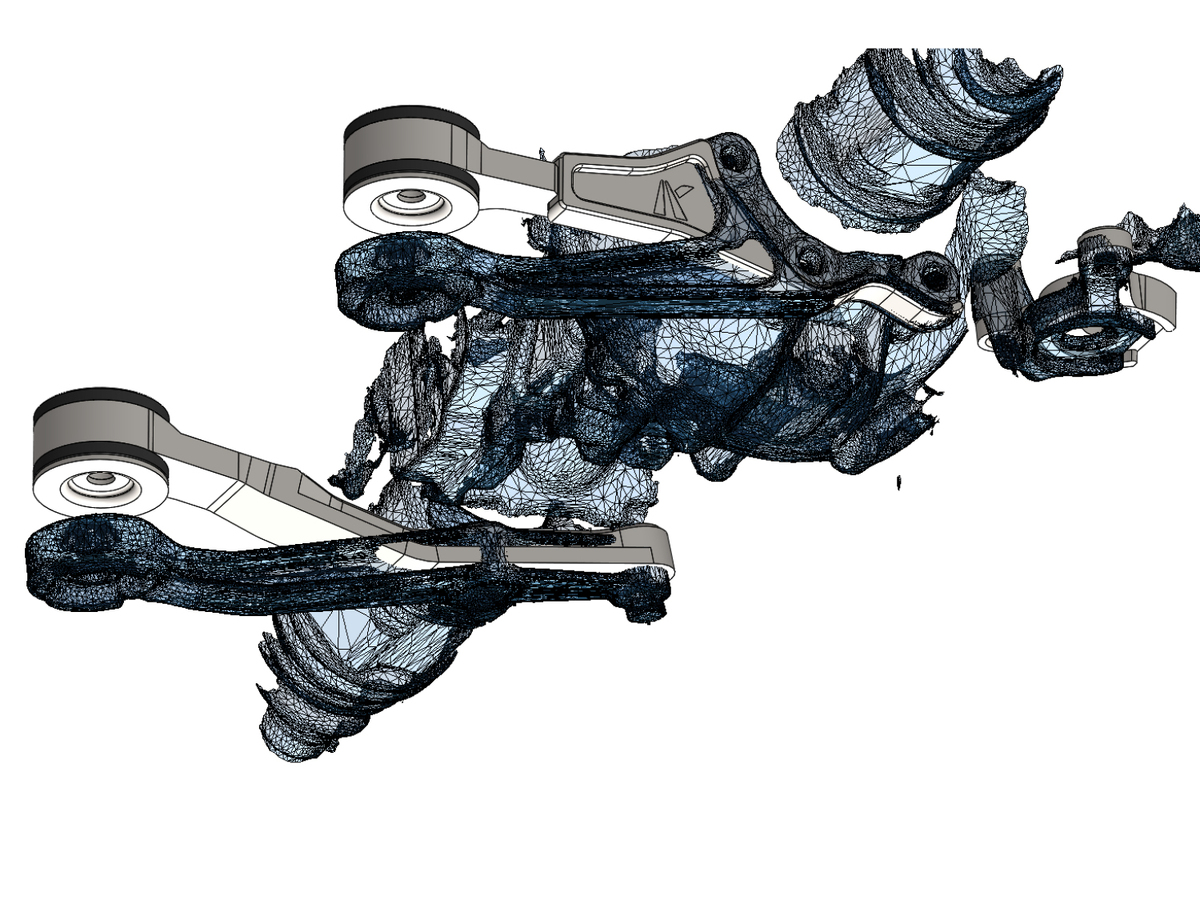

  • Designed using 3D scans and CAD for optimum diff position and maximum drop.
  • Corrects the driveshaft and CV joint angle and reduces stresses placed on the CV, helping to avoid unnecessary wear and premature failure.
  • Low profile design gives a factory look and improved clearance.
  • Large diameter polyurethane bushings are designed to match factory stiffness and damping.
  • Arms are made from CNC machined steel and gloss powder coated in a Tanami Red finish that is hardwearing and looks great.


  • Suits Toyota HiLux N80, N70 & Fortuner models (2005 – present)
  • Suitable for vehicles with a 2”- 4” lift



Our kit comes with comprehensive instructions and everything you need to get the job done, including:

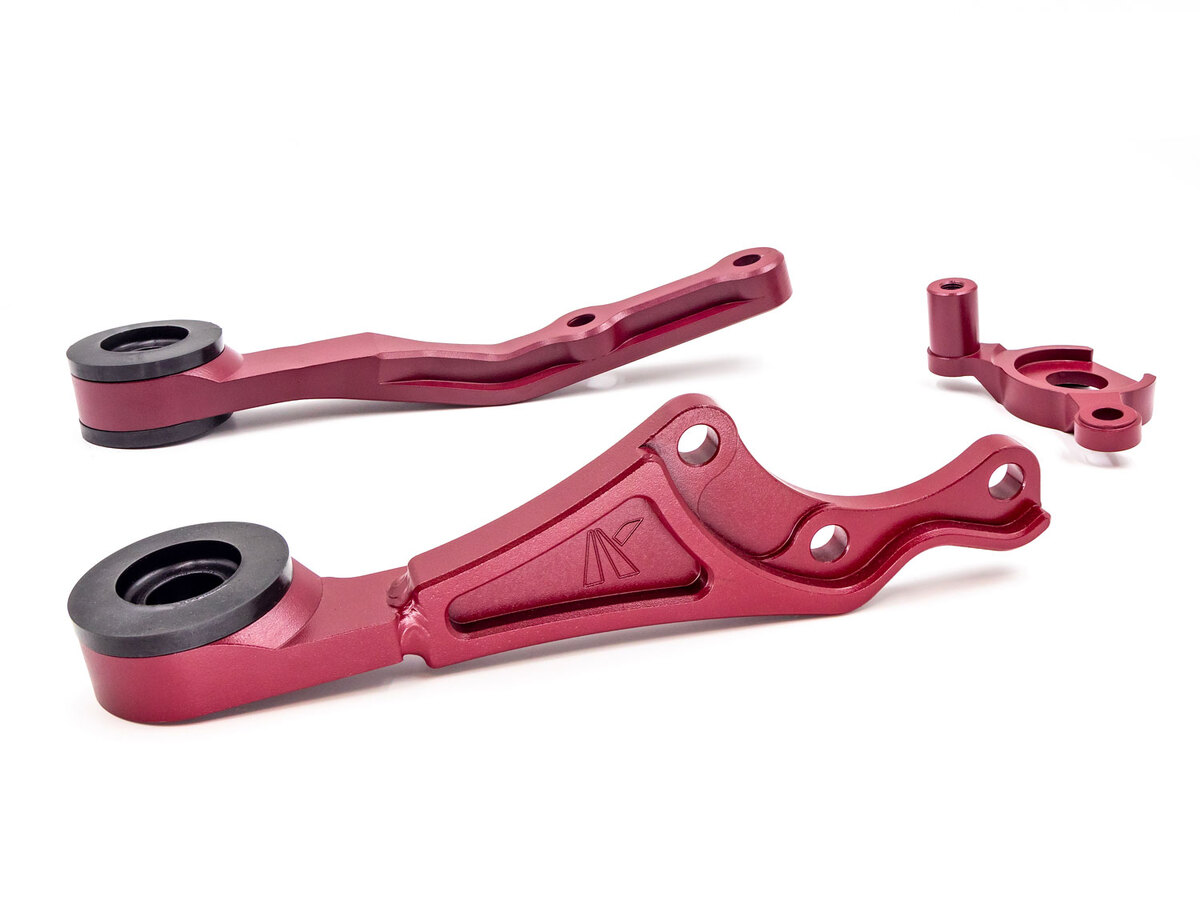

  • Arm Brackets

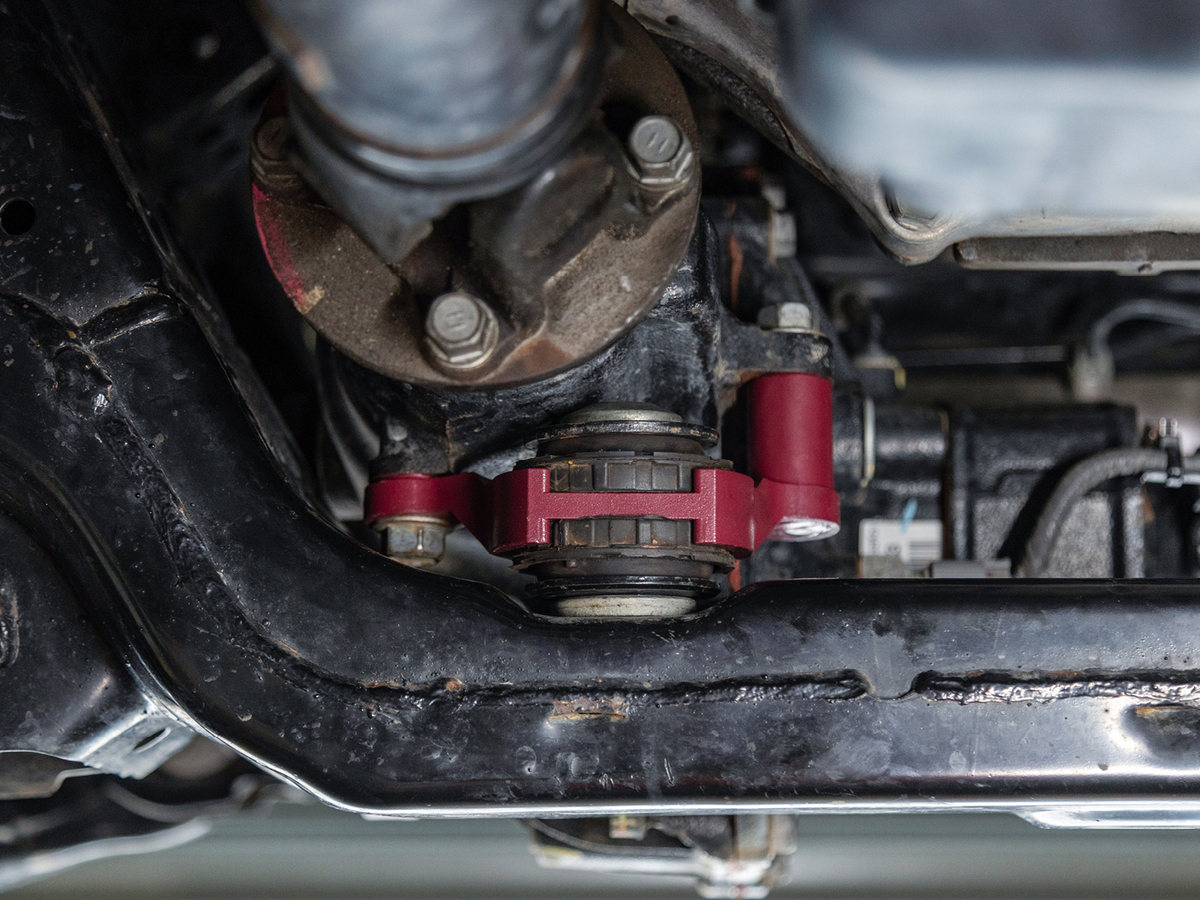

  • Pinion Bracket
  • All the hardware you’ll need to complete the install, including bushings, grease and a longer diff breather hose

All to suit the Toyota HiLux N80, N70 & Fortuner.


Australian Designed, Made and Owned.

This product is proudly certified as Australian Made & Owned.

When you choose Australian-Made, you're not only selecting a high-quality product designed for our tough conditions; you're supporting a network of Australian businesses and families. Your choice provides local jobs and training, helping us in our mission to ensure Australia continues to push boundaries in design, innovation and manufacturing.

Video Guide
SKU KS0429
Brand KAON
Shipping Weight 5.0000kg
Shipping Width 0.170m
Shipping Height 0.110m
Shipping Length 0.510m
Shipping Cubic 0.009537000m3
Unit Of Measure ea
